Cisco RV110W Administration Guide

Introduction
Using the Setup Wizard
Cisco RV110W Administration Guide 15
1
STEP 6 Plug the other end of the adapter into an electrical outlet. You may need to attach a
specific plug (supplied) for your country.

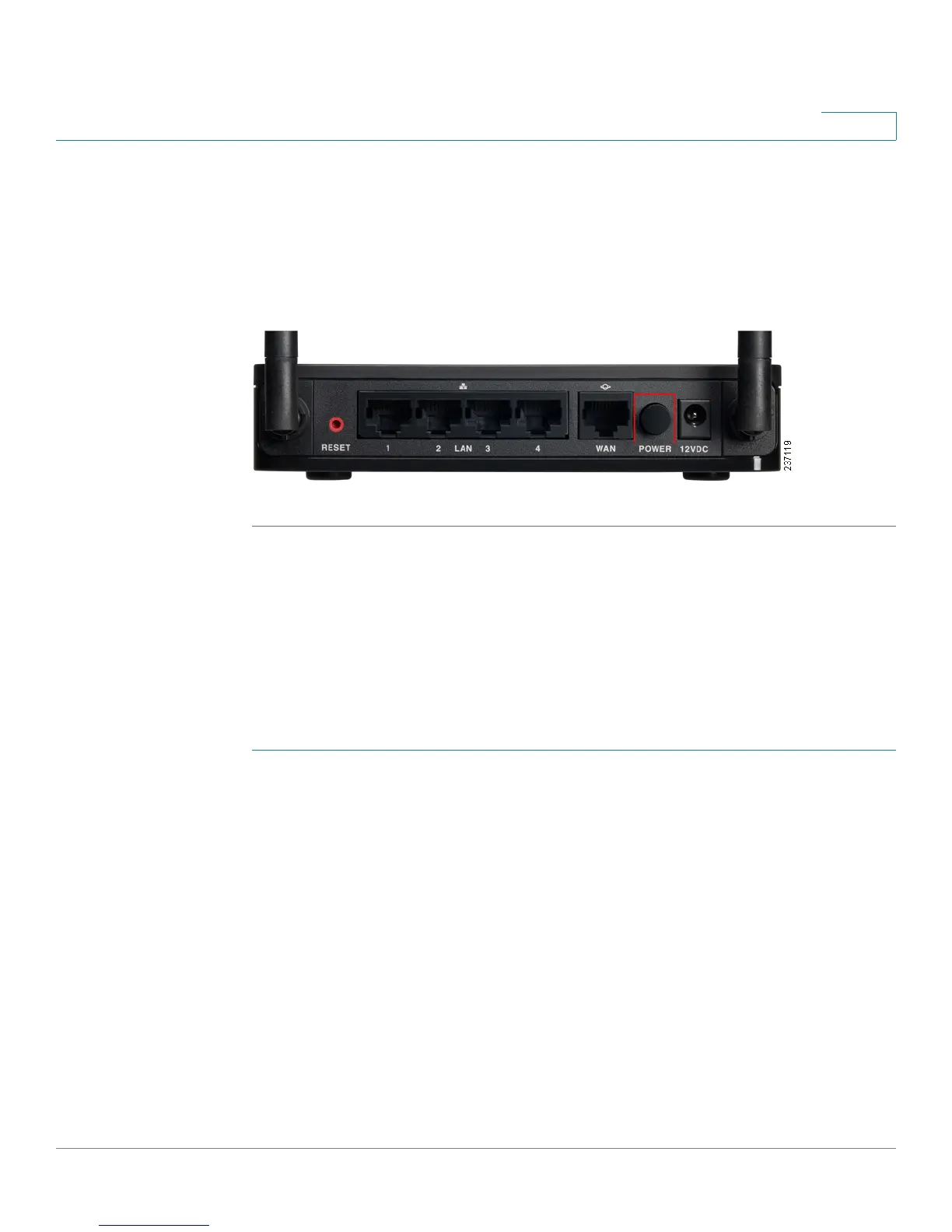

STEP 7 On the Cisco RV110W, push the POWER button in to turn on the firewall.
The power light on the front panel is green when the power adapter is connected
properly and the unit is turned on.
Using the Setup Wizard
The Setup Wizard and Device Manager are supported on Microsoft Internet
Explorer 6.0 or later, Mozilla Firefox 3.0 or later, and Apple Safari 3.0 or later.
To u s e t h e S e t u p W i z a r d :
STEP 1 Start the computer that you connected to the LAN1 port in Step 2 of the
Connecting the Equipment section.
Your computer becomes a DHCP client of the Cisco RV110W and receives an IP
address in the 192.168.1.xxx range.
STEP 2 Launch a web browser and enter 192.168.1.1 in the Address bar. This is the
default IP address of the Cisco RV110W.
A message appears about the site security certificate. The Cisco RV110W uses a
self-signed security certificate and this message appears because the
Cisco RV110W is not known to your computer.
STEP 3 Click Continue to this website (or the option shown on your particular web
browser) to go to the web site.
STEP 4 When the login page appears, enter the user name and password.

Cisco RV110W Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports	4
Input voltage	12 V
Rack mounting	No
Number of users	32 user(s)
Weight (imperial)	0.61 lbs
Dimensions (WxDxH)	150 x 150 x 30 mm
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Supported data transfer rates	10/100Mbps
Dimensions (W x D x H) (imperial)	5.91 x 5.91 x 1.18 \
WLAN data transfer rates supported	11, 54 Mbit/s
Supported network protocols	PPPoE, DHCP, PPTP, L2TP, IGMP, RSTP
Antennas quantity	2
Antenna gain level (max)	1.8 dBi
Firewall security	VPN
Security algorithms	WEP, WPA, WPA2, WPS
MAC address filtering	-
Product color	Black
Certification	FCC, CE, IC, cUL, Wi-Fi
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Width	150 mm
Height	30 mm
Weight	300 g
