Danfoss VLT AQUA Drive FC 202 User Manual

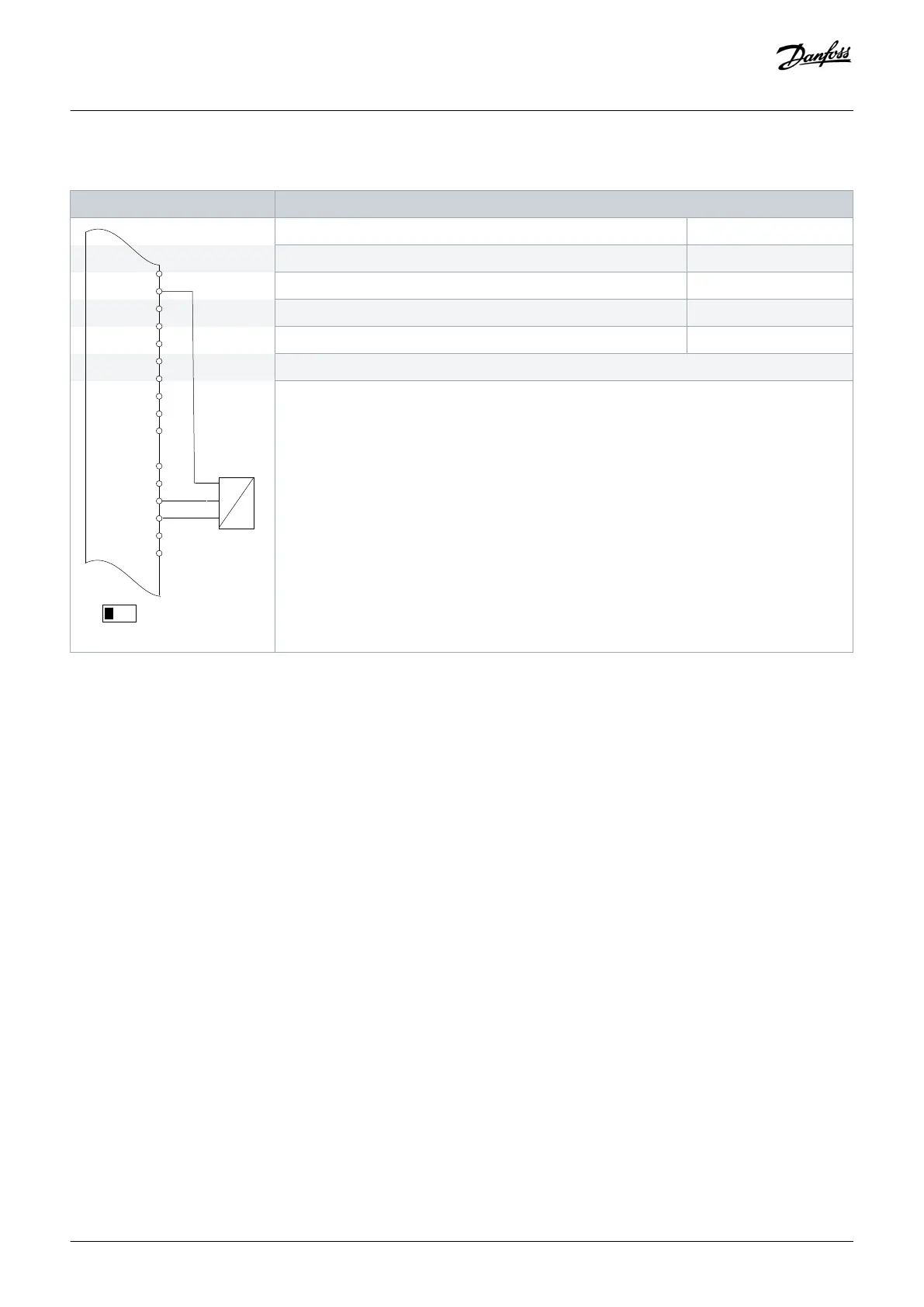

Table 56: Wiring Configuration for Analog Voltage Feedback Transducer (3-wire)
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
A54
U - I
0-10 V
+
-
e30bu079.10
XD2.10
XD2.11
XD2.12
XD2.13
XD2.18
XD2.14
XD2.15
XD2.16
XD2.17
XD2.19
XD2.6
XD2.7
XD2.8
XD2.9
XD2.5
XD2.4
Function Setting
Parameter 6-20 Terminal 54 Low Voltage 0.07 V*
Parameter 6-21 Terminal 54 High Voltage 10 V*
Parameter 6-24 Terminal 54 Low Ref./Feedb. value 0*
Parameter 6-25 Terminal 54 High Ref./Feedb. Value 50*
*=Default value
Notes/comments:
D IN 37 is an option.
Terminal 54 in the parameter title corresponds to terminal XD2.8 in the control compartment.
Wiring Configuration Examples
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
114 | Danfoss A/S © 2018.10
