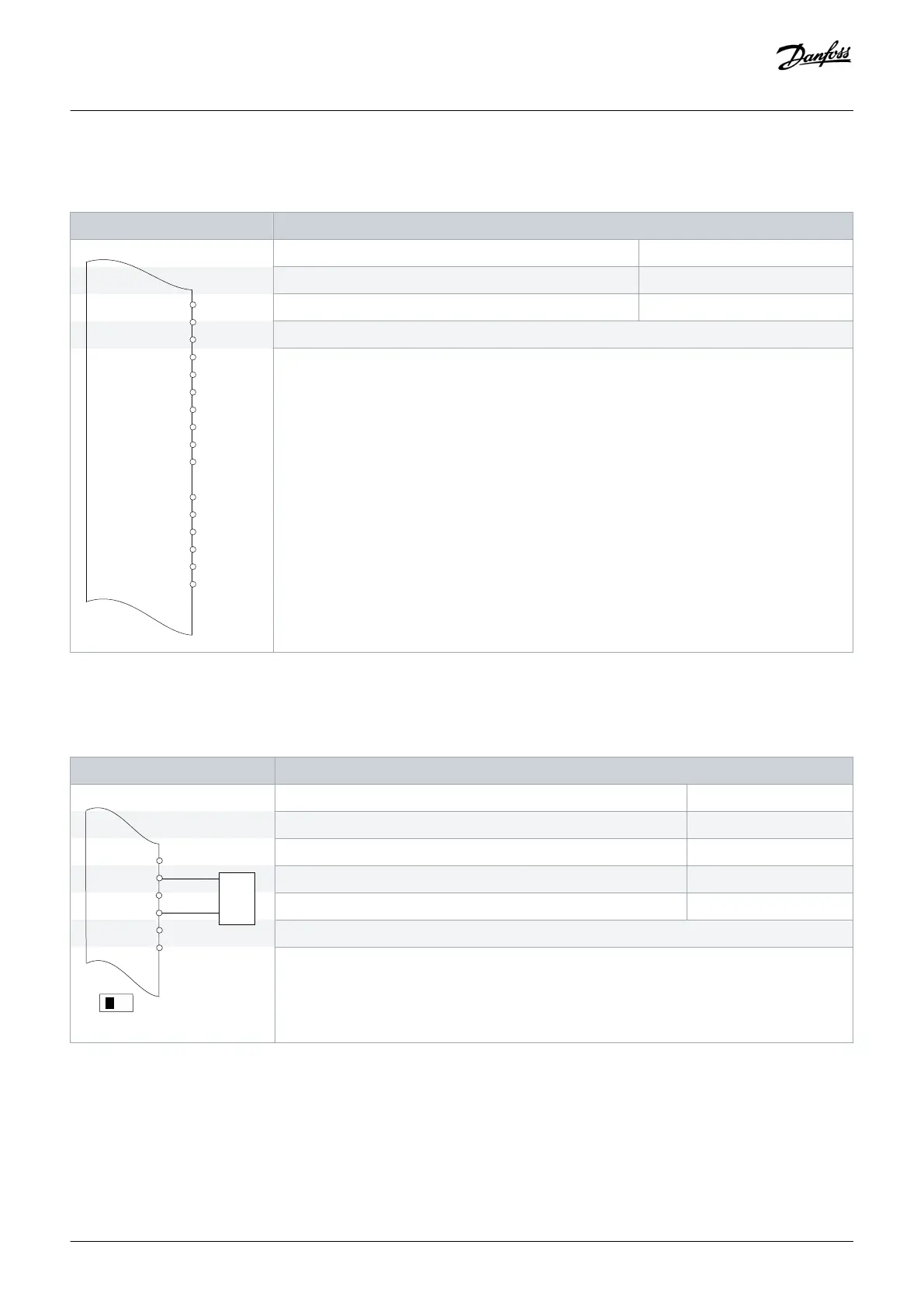

8.1.2 Wiring Configuration for Automatic Motor Adaptation (AMA) without T27
Table 50: Wiring Configuration for AMA without T27 Connected
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
XD2.10
XD2.11
XD2.12
XD2.13
XD2.18
XD2.14
XD2.15
XD2.16
XD2.17
XD2.19
XD2.6
XD2.7
XD2.8
XD2.9
XD2.5
XD2.4
e30bu091.10
Function Setting
Parameter 1-29 Automatic Motor Adaptation (AMA) [1] Enable complete AMA
Parameter 5-12 Terminal 27 Digital Input [0] No operation
*=Default value
Notes/comments:
Set parameter group 1-2* Motor Data according to motor nameplate.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
8.1.3 Wiring Configuration: Speed
Table 51: Wiring Configuration for Analog Speed Reference (Voltage)
Parameters
+10
V
A IN
A IN
COM
A OUT
COM
XD2.6
XD2.7
XD2.8
XD2.9
XD2.5
XD2.4
A53
U - I
0–10 V
+
-
e30bu073.10
Function Setting
Parameter 6-10 Terminal 53 Low Voltage 0.07 V*
Parameter 6-11 Terminal 53 High Voltage 10 V*
Parameter 6-14 Terminal 53 Low Ref./Feedb. value 0 Hz
Parameter 6-15 Terminal 53 High Ref./Feedb. Value 50 Hz
*=Default value
Notes/comments:
D IN 37 is an option.
Terminal 53 in the parameter title corresponds to terminal XD2.7 in the control compartment.
Wiring Configuration Examples
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
110 | Danfoss A/S © 2018.10
