8.1.6 Wiring Configuration: Start/Stop
Table 61: Wiring Configuration for Start/Stop Command with Safe Torque Off Option
Parameter
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
e30bu084.10
XD2.10
XD2.11
XD2.12
XD2.13
XD2.18
XD2.14
XD2.15
XD2.16
XD2.17
XD2.19
Function Setting
Parameter 5-10 Terminal 18 Digital Input [Start]*
Parameter 5-12 Terminal 27 Digital Input [0] No operation
Parameter 5-19 Terminal 37 Safe Stop [1] Safe Stop Alarm
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27 Digital Input is set to [0] No operation, a jumper wire to terminal
XD2.14 is not needed.
D IN 37 is an option.
Terminal 18 in the parameter title corresponds to terminal XD2.12 in the control compartment.
Terminal 27 in the parameter title corresponds to terminal XD2.14 in the control compartment.
Terminal 37 in the parameter title corresponds to terminal XD2.19 in the control compartment.
e30bu101.10
Speed
Start/Stop (XD2.12)

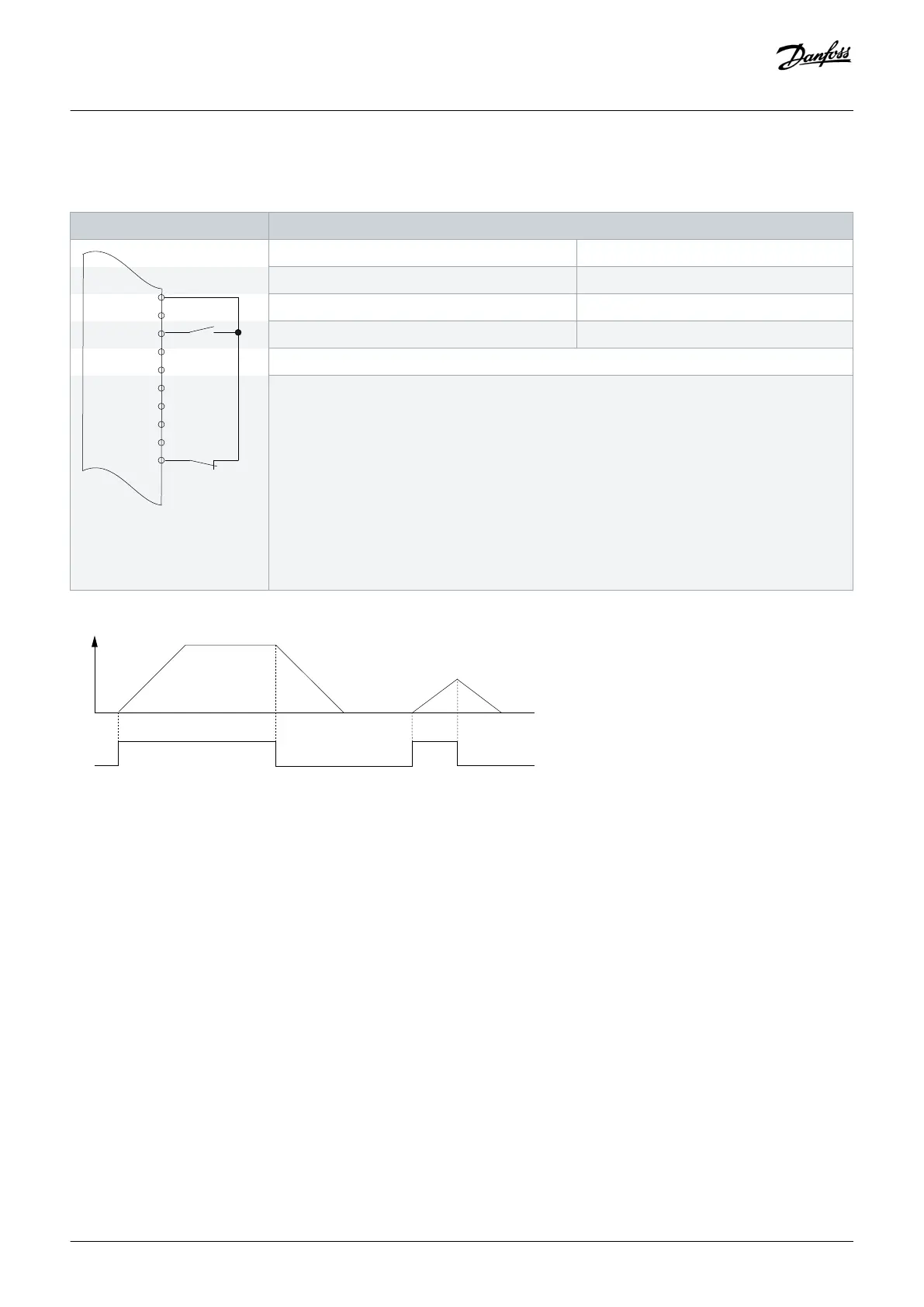

Illustration 61: Wiring Configuration for Start/Stop Command with Safe Torque Off
Wiring Configuration Examples
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882 | 117
Danfoss A/S © 2018.10
