5.6.4 E6h Wiring Harness
e30bu180.10
-XDL.1
-XD4.1
-XD11.3
-XD4.4
-XD4.3
1
2
3
4
5
8
L1R
T
R
S
L3T
L2S
6
7
1 Thermal protection wiring harness to input power options
cabinet
3 PHF contactor 2 supply harness to input power options
cabinet (only with PHF option)
5 Output terminal cables (L1R/L2S/L3T) to mains terminals
(R/S/T) in the drives cabinet
7 Cabinet heater supply harness to input power options
cabinet
2 PHF contactor 1 supply harness to input power options
cabinet (only with PHF option)
4 Input terminal cables (R/S/T) to mains terminals (R/S/T) in the
input power options cabinet
6 DC-link harness to fan supply in the input power options
cabinet
8 Additional terminal connections

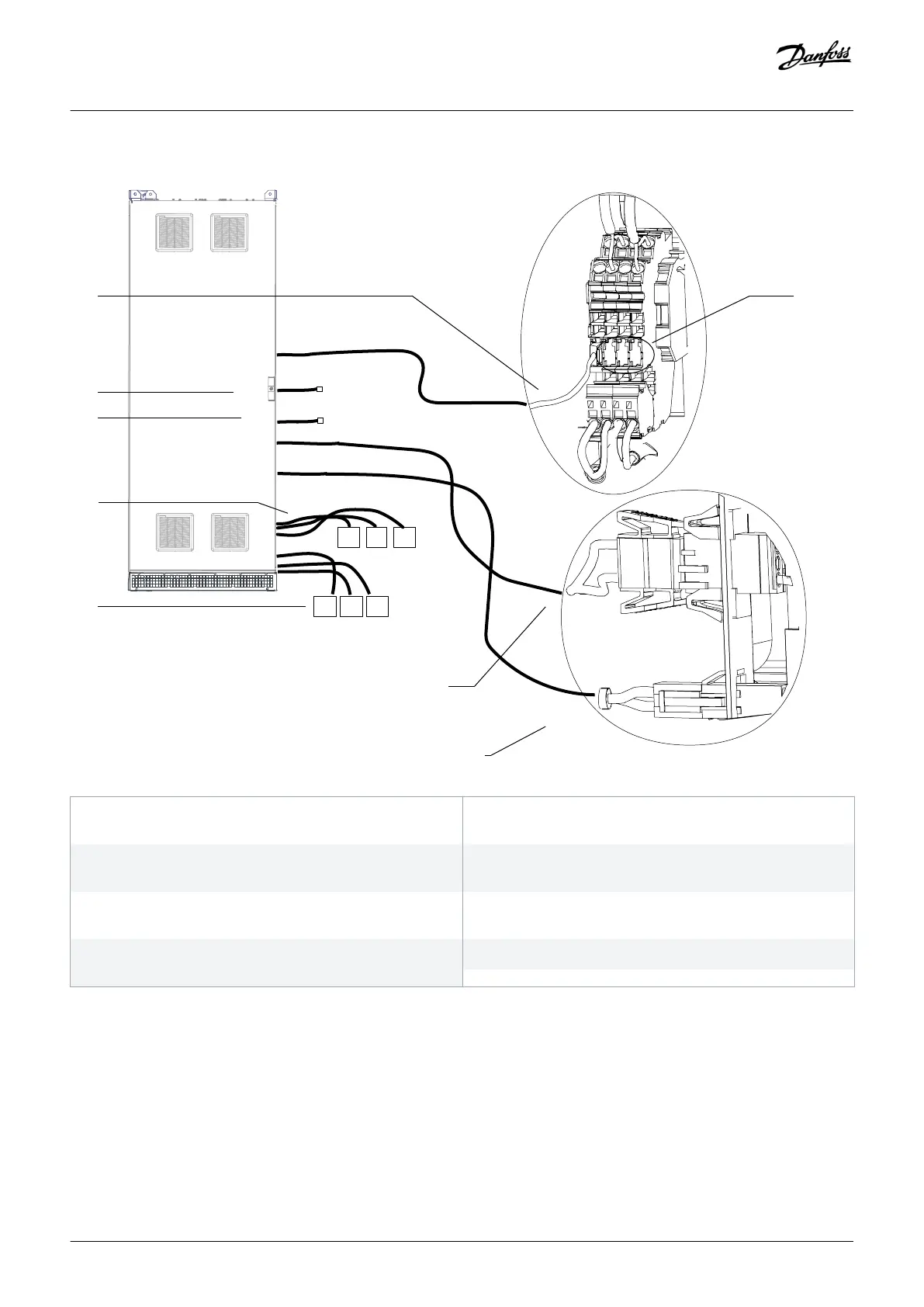

Illustration 34: Split Shipment Electrical Connections (Input Filter Cabinet)
