Danfoss VLT AQUA Drive FC 202 User Manual

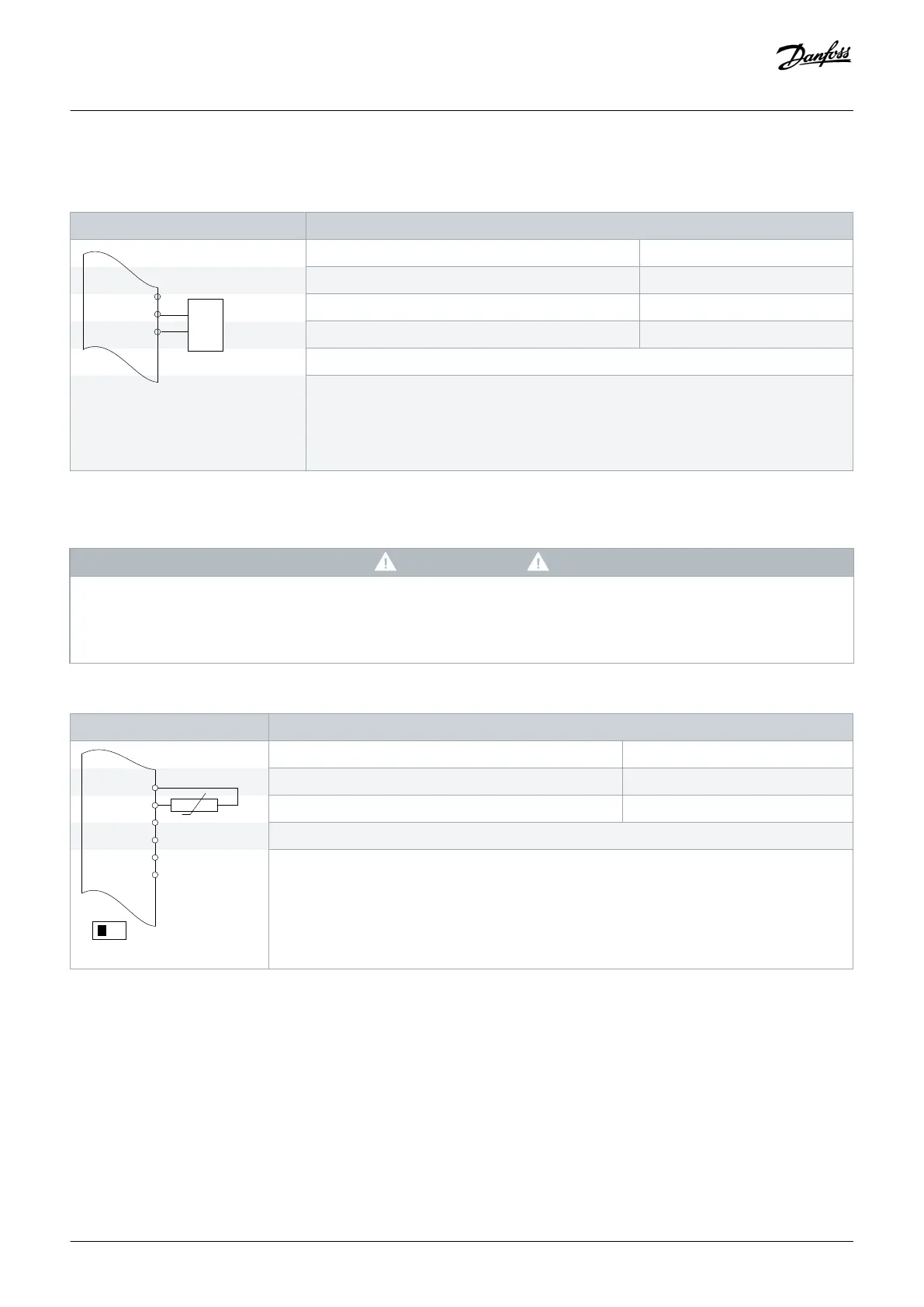

8.1.8 Wiring Configuration: RS485
Table 65: Wiring Configuration for RS485 Network Connection
Parameter
e30bu089.10
XD2.10
XD2.11
XD2.12
-
RS485
+
Function Setting
Parameter 8-30 Protocol FC*
Parameter 8-31 Address 1*
Parameter 8-32 Baud Rate 9600*
*=Default value
Notes/comments:
Select protocol, address, and baud rate in the above-mentioned parameters.
D IN 37 is an option.
8.1.9 Wiring Configuration: Motor Thermistor
CAUT I O N
THERMISTOR INSULATION
Risk of personal injury or equipment damage.
-
Use only thermistors with reinforced or double insulation to meet PELV insulation requirements.
Table 66: Wiring Configuration for Motor Thermistor
Parameters
e30bu090.10
+10 V
A IN
A IN
COM
A OUT
COM
A53
U - I
XD2.6
XD2.7
XD2.8
XD2.9
XD2.5
XD2.4
Function Setting
Parameter 1-90 Motor Thermal Protection [2] Thermistor trip
Parameter 1-93 Thermistor Source [1] Analog input 53
* = Default value
If only a warning is required, set parameter 1-90 Motor Thermal Protection to [1] Thermistor warn-
ing.
D IN 37 is an option.
Input 53 in the parameter corresponds to terminal XD2.7 in the control compartment.
Wiring Configuration Examples
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
120 | Danfoss A/S © 2018.10
