5.12.2 Configuring RS485 Serial Communication
Procedure
1. Connect RS485 serial communication wiring to terminals (+) XD2.2 and (-) XD2.3.
- Use shielded serial communication cable.
- Properly ground the wiring. Refer to
5.8.6 Connecting to Ground.
2. Select the protocol type in parameter 8-30 Protocol.
3. Select the drive address in parameter 8-31 Address.
4. Select the baud rate in parameter 8-32 Baud Rate.
Example:
+
e30bu150.10
RS485
XD2.3
XD2.1
XD2.2

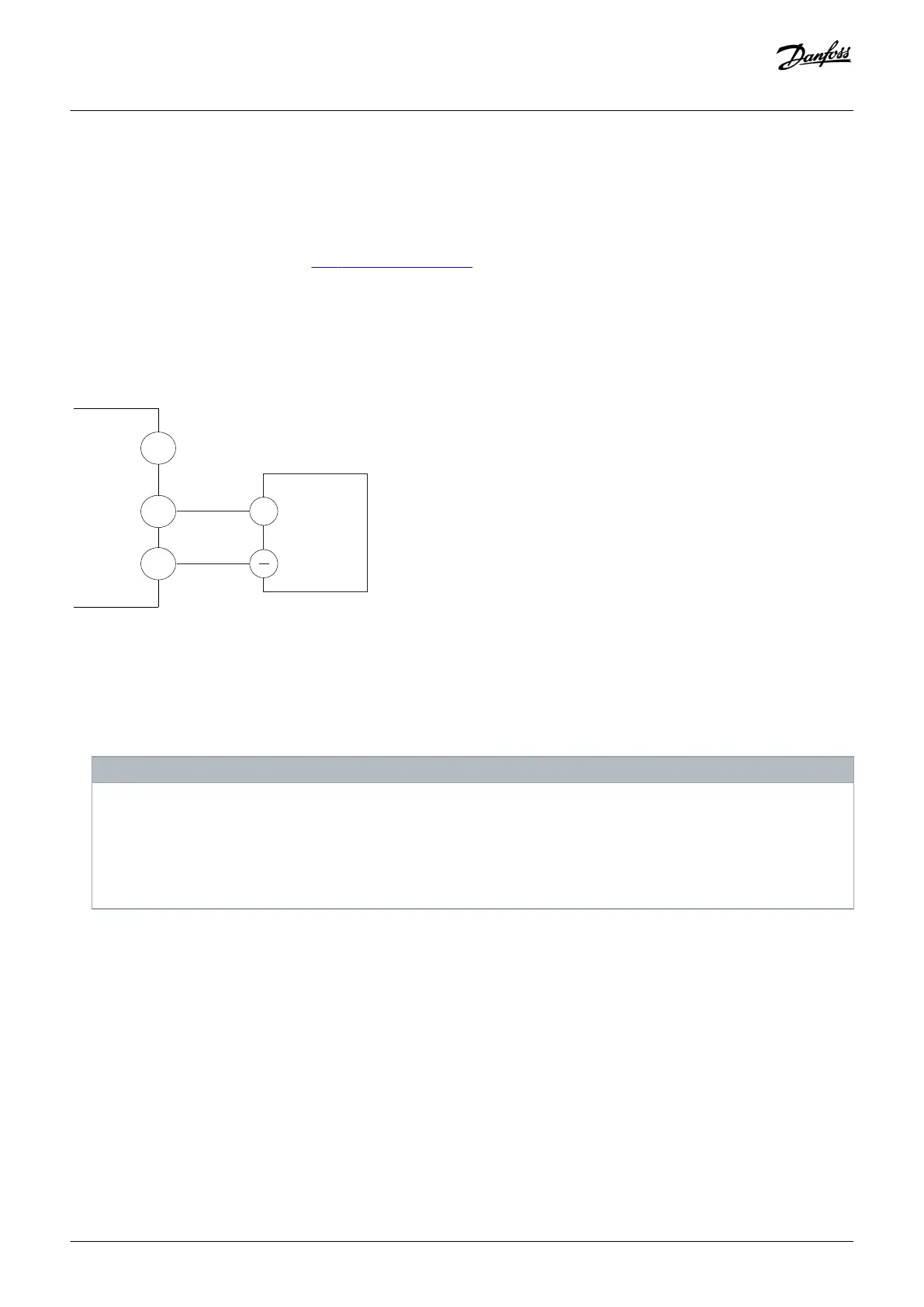

Illustration 57: RS485 Wiring Connection
5.13 Configuring the Passive Harmonic Filter (PHF)
Context:
NOT I C E
EQUIPMENT DAMAGE
Failure to use the correct settings can result in the AC drive overheating, resulting in damage to the AC drive and its
surroundings.
-
Verify that the value in parameter 5-02 Terminal 29 Mode is set to [1] Output.
-
Verify that the value in parameter 5-31 Terminal 29 is set to [188] AHF Capacitor Connect.
Procedure
1. Set parameter 5-02 Terminal 29 Mode to [1] Output.
2. Set parameter 5-31 Terminal 29 to [188] AHF Capacitor Connect.
5.14 Configuring the dU/dt Filter
Context:
Electrical Installation
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
96 | Danfoss A/S © 2018.10
