10.10 Enclosure Airflow
225 mm (8.9 in)
e30bu132.10
1
2
225 mm (8.9 in)
1 PHF and drive cabinet 2 Sine-wave cabinets

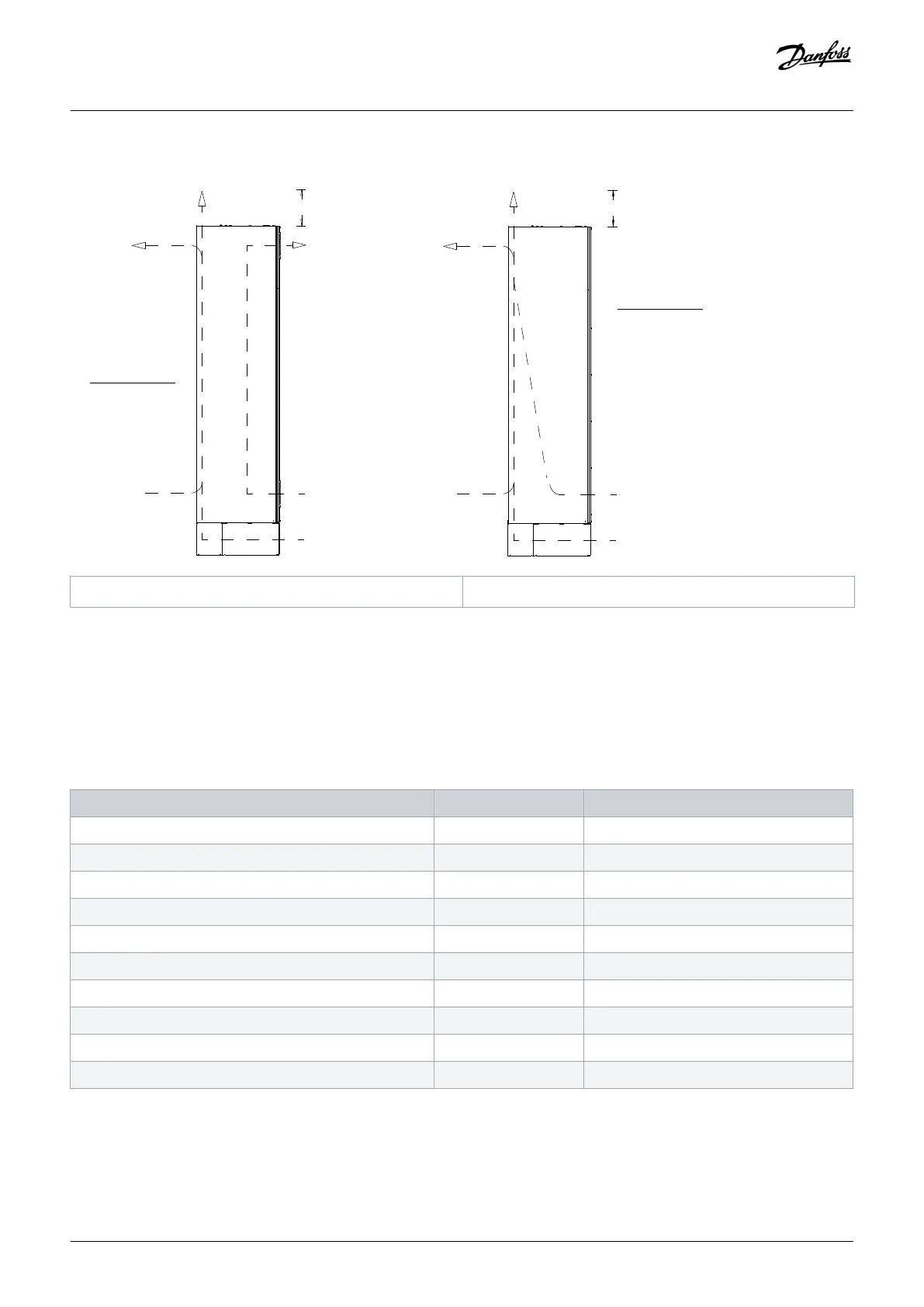

Illustration 76: Enclosure Airflow
10.11 Fastener Torque Ratings
Apply the correct torque when tightening fasteners in the locations that are listed in the table. Too low or too high torque when
fastening an electrical connection results in a bad electrical connection. To ensure correct torque, use a torque wrench.
Table 115: Fastener Torque Ratings
Location Bolt size Torque [Nm (in-lb)]
Mains terminals M10/M12 19 (168)/37 (335)
Motor terminals M10/M12 19 (168)/37 (335)
Ground terminals M8/M10 9.6 (84)/19.1 (169)
Brake terminals M8 9.6 (84)
Load sharing terminals M10/M12 19 (168)/37 (335)
Relay terminals - 0.5 (4)
Door/panel cover M5 2.3 (20)
Cable entry plate M5 2.3 (20)
Heat sink access panel M5 2.3 (20)
Serial communication cover M5 2.3 (20)
