4.11 Installing the Enclosed Drive
4.11.1 Creating an Entry for Cables
Procedure
1. Locate the cabinets that contain the motor and mains terminals.
2. Open the cabinet doors and remove any protective covers placed over the terminals.
3. Create the cable openings.
- For IEC versions, cut the grommet openings just enough to pass the cables through them.
- For UL versions, cut or drill openings in the cable entry plate and fit with appropriate UL conduits, according to the mains and
motor cable sizes.
4. Terminate the shields properly.
- Use the metallic glands to terminate the output cable shields.
- Use the flex sheets to firmly terminate the shields. For certain configurations, Danfoss supplies the flex sheets.
Example:
e30bu154.10

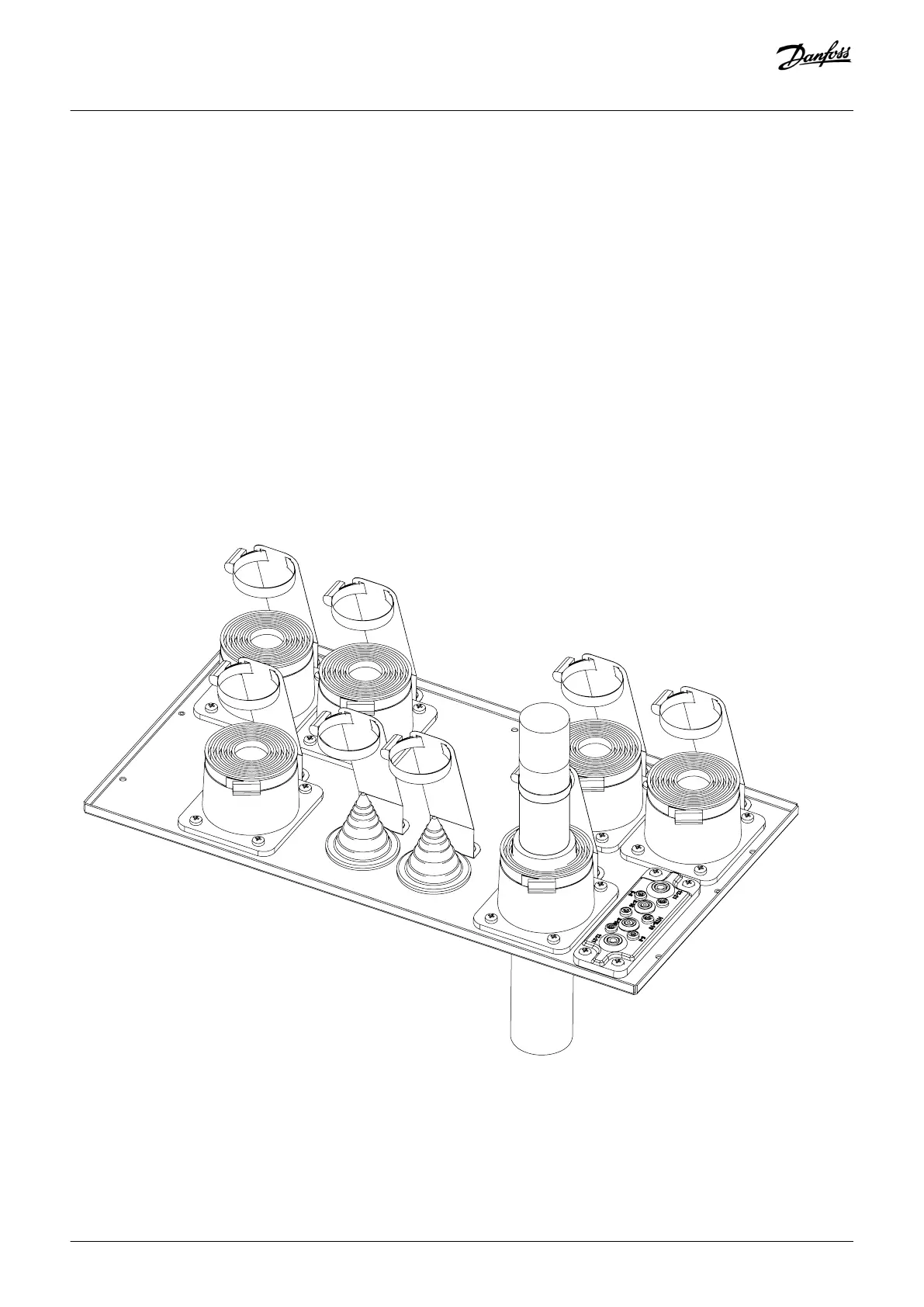

Illustration 17: Installing Motor and Mains Cables Through an IP54 (IEC version) Cable Entry Plate
Mechanical Installation
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882 | 39
Danfoss A/S © 2018.10
