10.9.3 D10h Enclosed Drive Dimensions
e30bu143.10
400 (15.8) /
2000
55
(78.7)
100 (3.9)
600 (23.6)
600 (23.6)
(2.2)
1
3
4
5
600 (23.6)
2
600 (23.6)
1 Passive harmonic filter/line reactor cabinet
3 D10h drive cabinet
5 Standard pedestal
2 Options cabinet (provided when more than 1 input option is
ordered)
4 Sine-wave cabinet

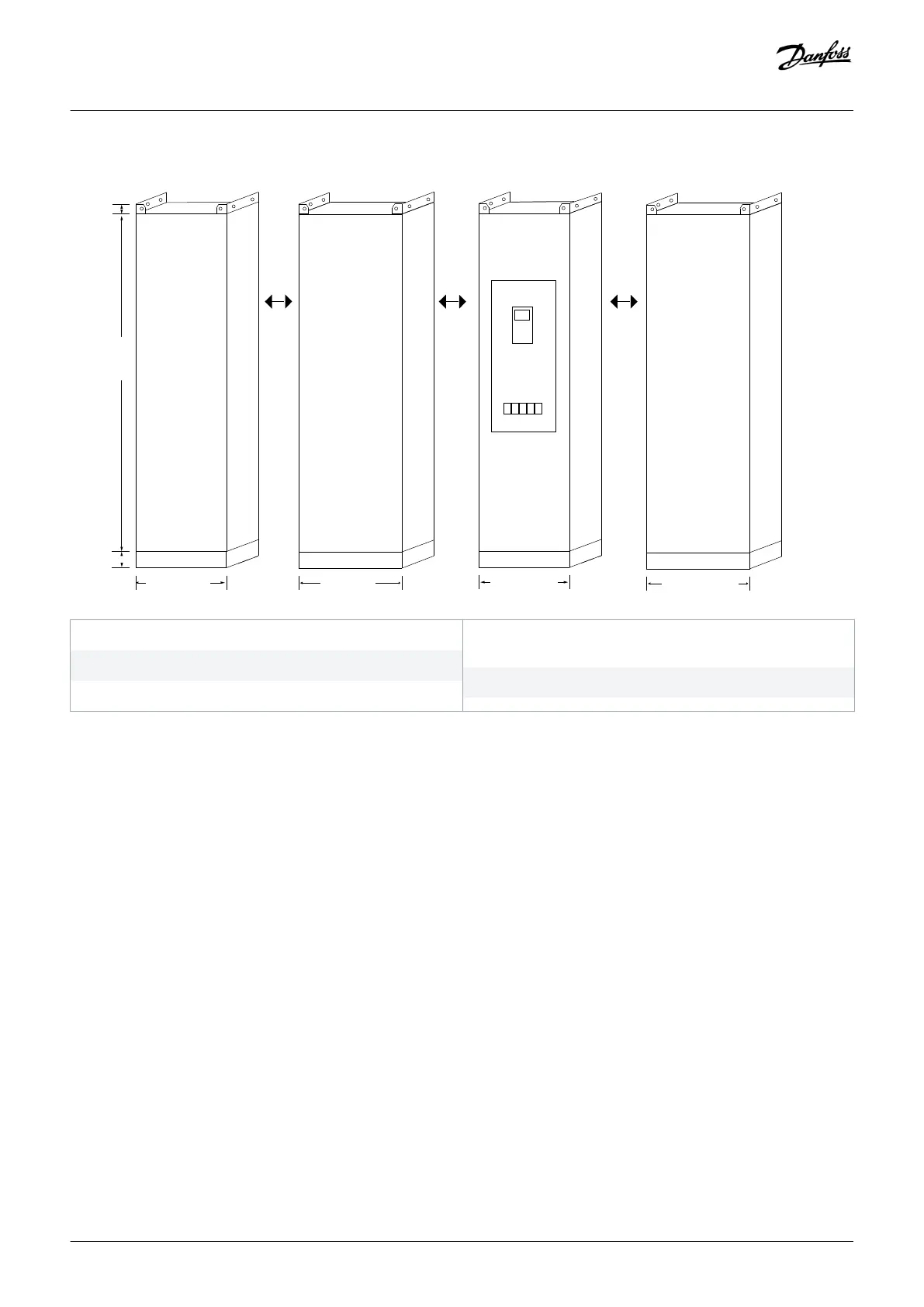

Illustration 73: Dimensions for D10h Enclosure with Standard Pedestal
Specifications
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882 | 187
