Danfoss VLT AQUA Drive FC 202

e30bu187.10
-XDL.1
-XD4.1
-XD11.1
7
8
9
10
R
T
S
-XD4.1
-XD4.3
-XD11.3
-XDL.1
2
3
4
5
6
L1R
L3T
L2S
1
1 Cabinet heater supply harness to input filter cabinet
3 Thermal protection harness to input filter cabinet
5 Mains cables (R/S/T) to input terminals (R/S/T) in the input
filter cabinet
7 DC-link harness to fan supply to output filter cabinet
9 Available terminal connections
2 DC-link harness to fan supply in input filter cabinet
4 PHF contactor 1 supply harness to input filter cabinet (only
with PHF option)
6 Mains cables (L1R/L2S/L3T) to output terminals (L1R/L2S/L3T)
in the input filter cabinet
8 Cabinet heater supply harness to output filter cabinet
10 Thermal protection wiring harness to output filter cabinet

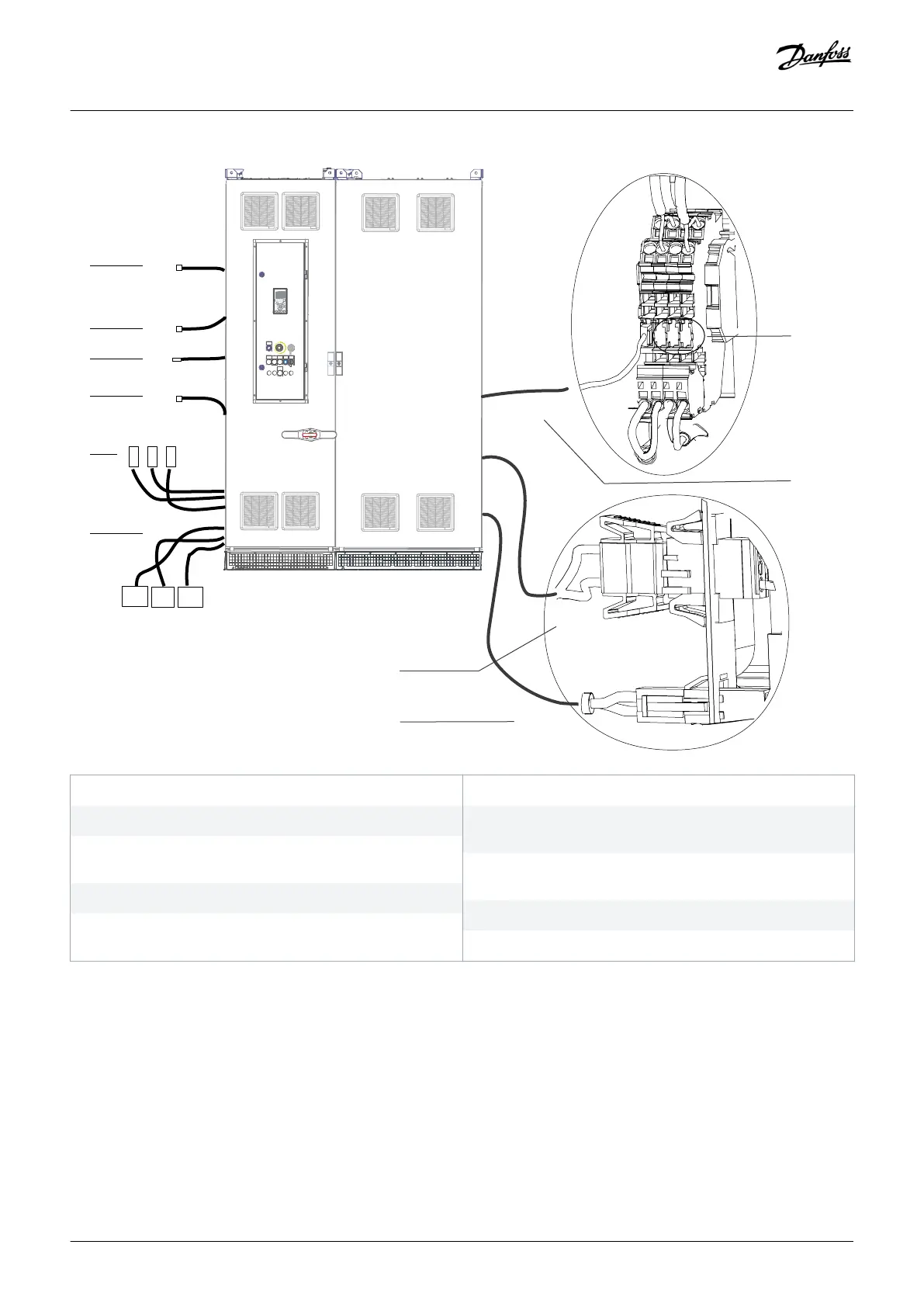

Illustration 33: Split Shipment Electrical Connections (Input Power Options Cabinet + E5h Drive Cabinet)
