e30bu186.10
-XDL.1
-XD4.1
-XD11.1
1
2
5
T
R
S
4
3
1 Motor cables (U/V/W) to motor terminals (U/V/W) in output
filter cabinet
3 Cabinet heater supply harness to output filter cabinet
5 Thermal protection wiring harness to output filter cabinet
2 DC-link harness to fan supply in output filter cabinet
4 Additional terminal connections

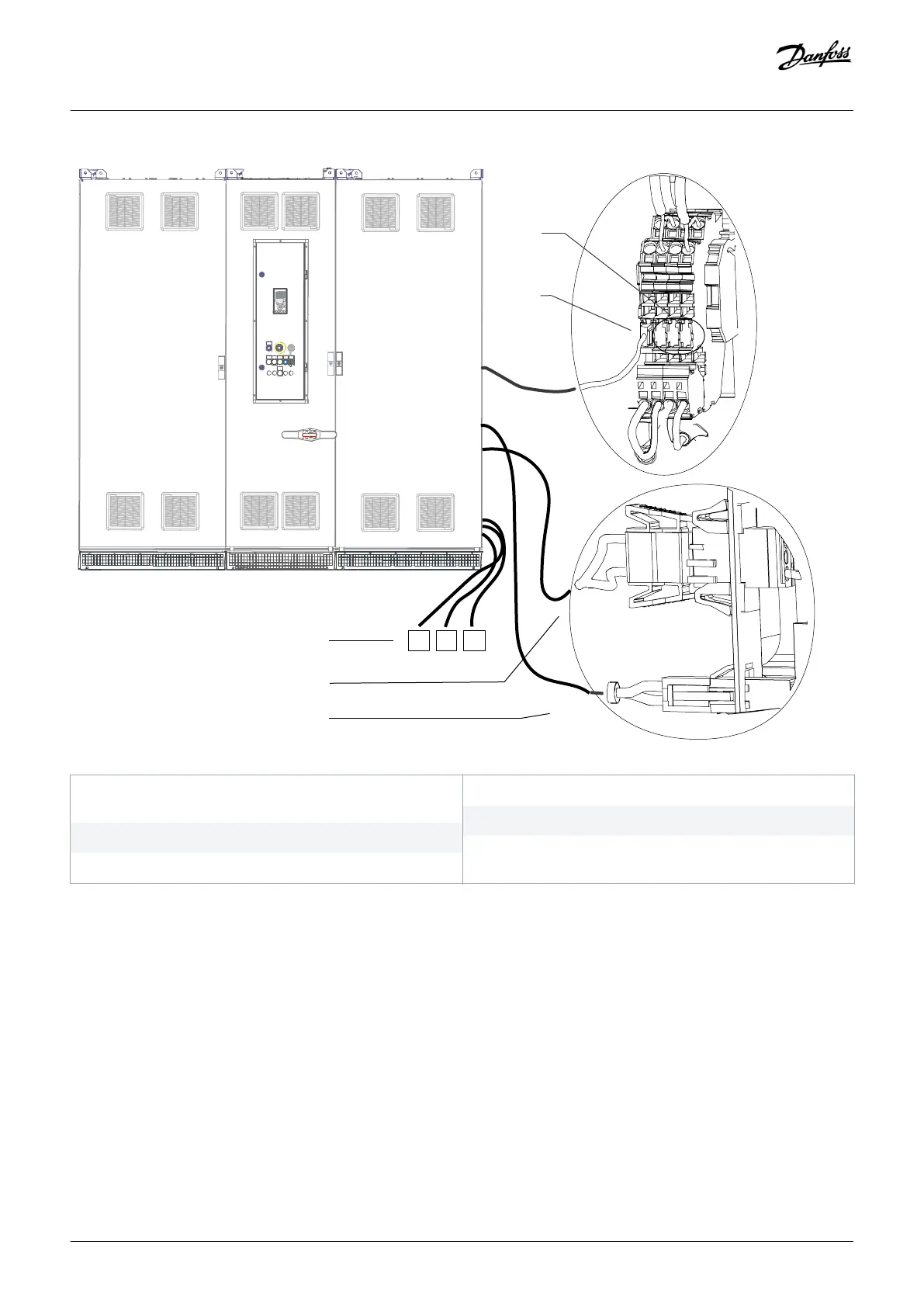

Illustration 32: Split Shipment Electrical Connections (Input Filter Cabinet + Input Power Options Cabinet + E5h Drive Cabinet)
Electrical Installation
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
58 | Danfoss A/S © 2018.10
