e30bu181.10
-XD4.1
-XD11.1
-XDL.1
1
2
3
4
U
W
V
5
1 Additional terminal connections
3 DC-link harness to fan supply in drive cabinet
5 Motor cables (U/V/W) to motor terminals (U/V/W) in drive
cabinet
2 Thermal protection wiring harness to drive cabinet
4 Cabinet heater supply harness to drive cabinet

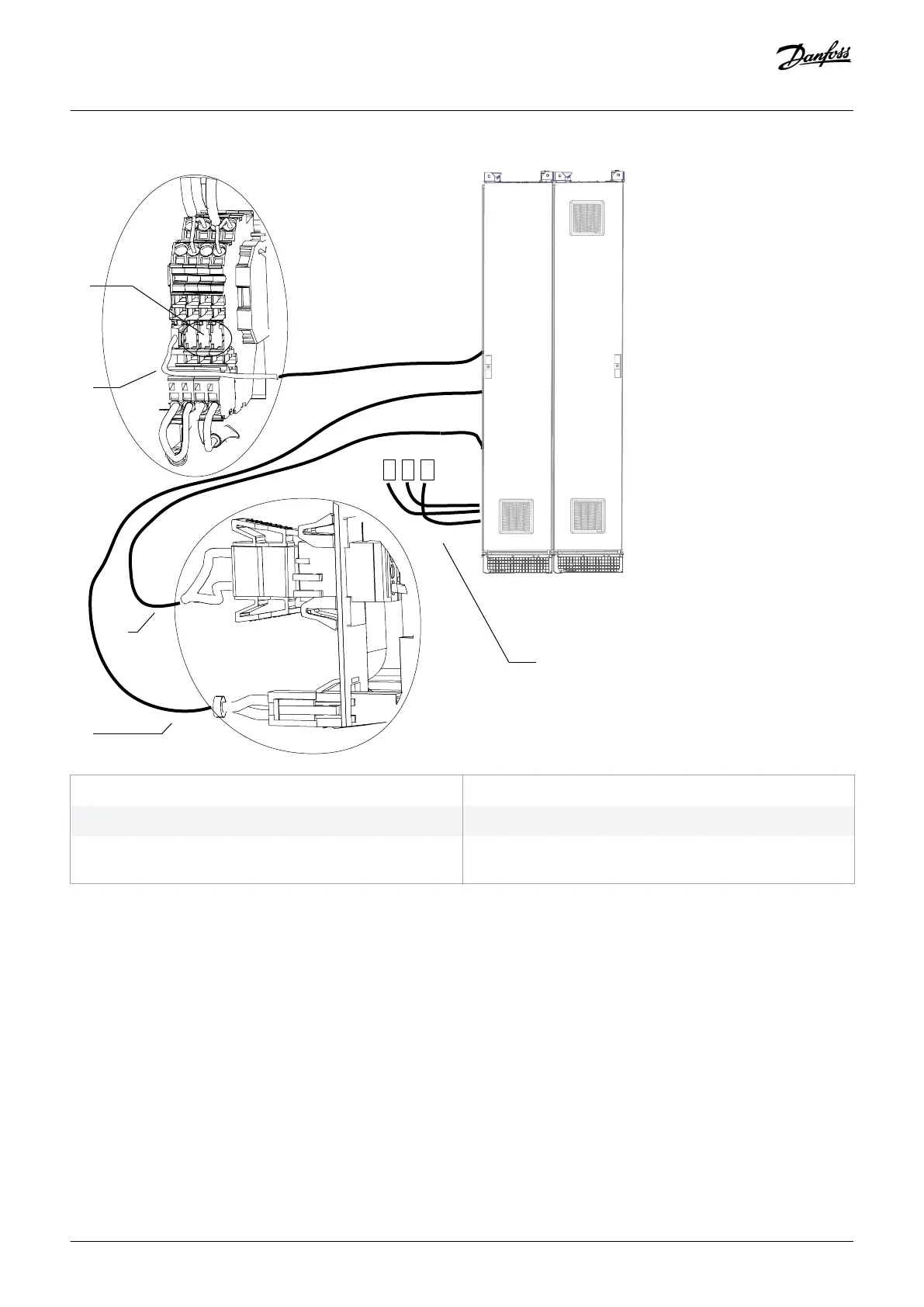

Illustration 25: Split Shipment Electrical Connections (dU/dt Cabinet + Top Exit Cabinet)
Electrical Installation
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882 | 51
Danfoss A/S © 2018.10
