• Ground the drive in accordance with applicable standards and directives.
• Use a dedicated ground wire for input power, motor power, and control wiring.
• Do not ground 1 drive to another in a daisy chain fashion.
• Keep the ground wire connections as short as possible.
• Follow motor manufacturer wiring requirements.
• Minimum cable cross-section: 10 mm
2
(6 AWG) (or 2 rated ground wires terminated separately).
• Tighten the terminals in accordance with the information provided in 10.11 Fastener Torque Ratings.
EMC-compliant Installation
Refer to 5.2 EMC-compliant Installation.
e30bu151.10
7
8
9
10
3
4
5
6
1 2
1 Cable 1
3 Connection bushing
5 Cable 2
7 Cable 1 lug
9 Terminal connector
2 Cable 2
4 Cable 1
6 Cable 3
8 Bolt holder on the connector
10 Cable 2 lug

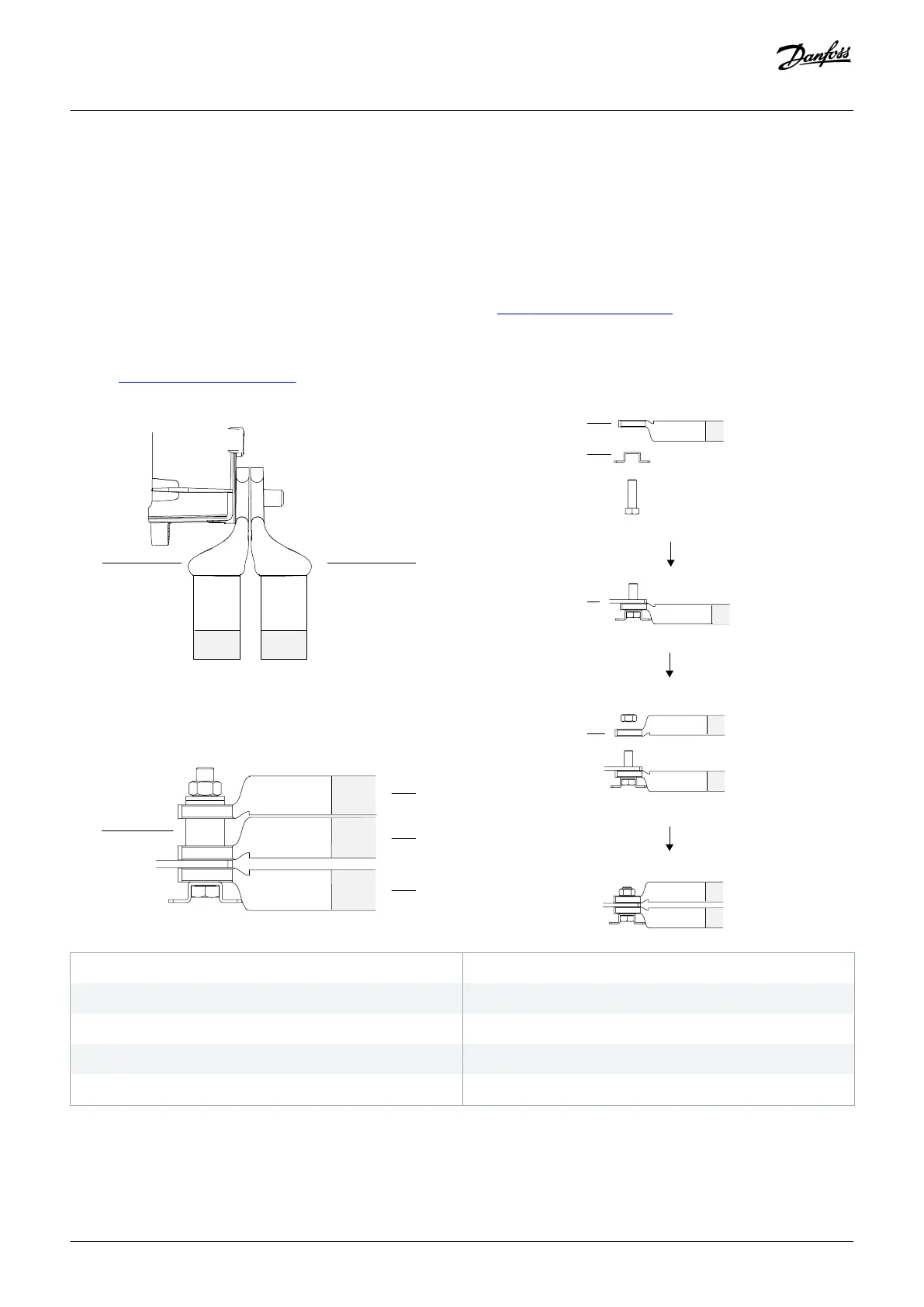

Illustration 48: Different Ways of Connecting Multiple Cables to 1 Terminal
Electrical Installation
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
80 | Danfoss A/S © 2018.10
