Danfoss VLT AQUA Drive FC 202 User Manual

e30bu173.10
1
2
3
4
5

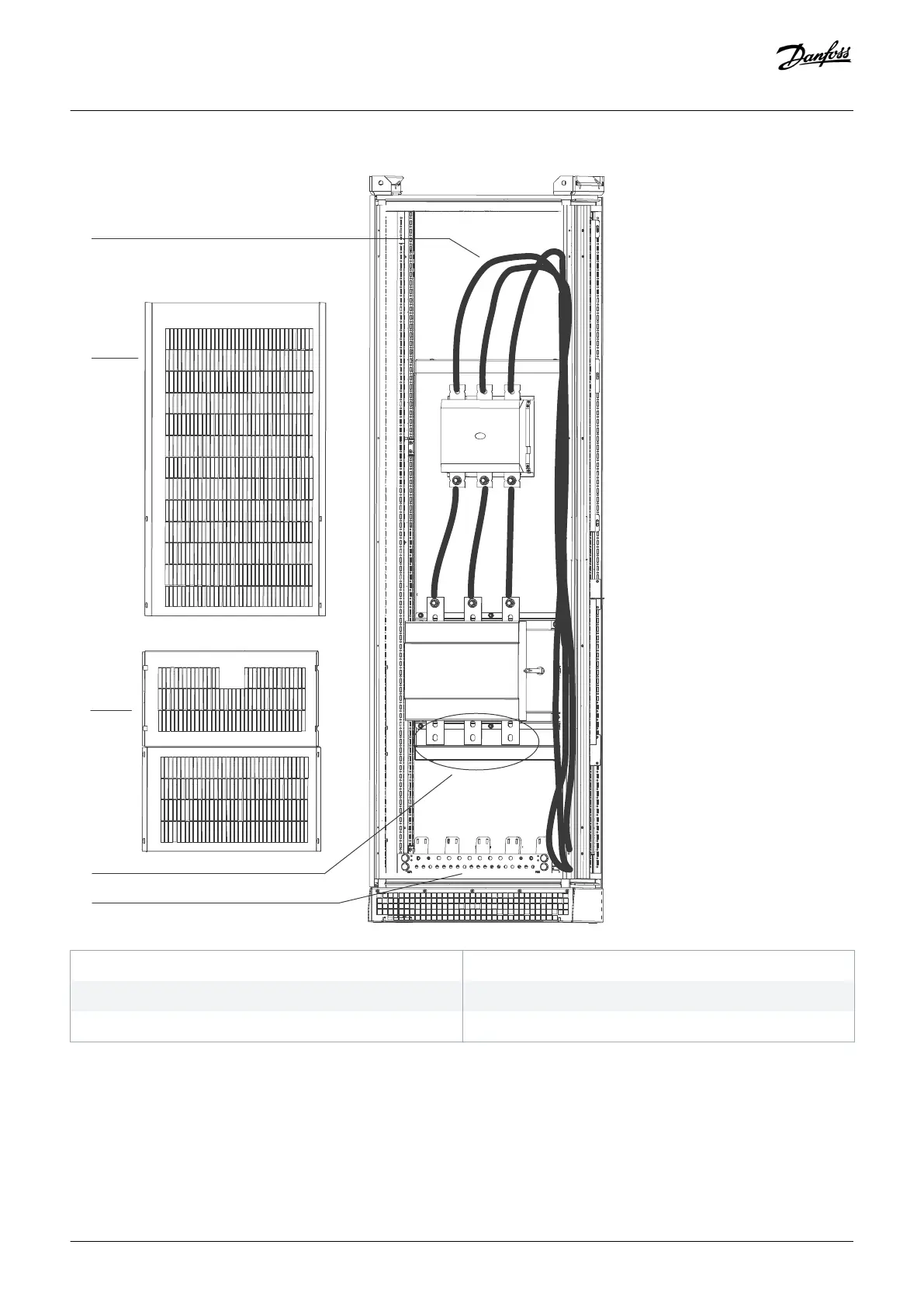

1 Factory cables connecting contactor to drive input terminals
3 Cabinet screen (lower)
5 Grounding bar
2 Cabinet screen (upper)
4 Input power terminals (disconnect option is shown)
Illustration 51: Connection Points for Mains to Input Power Option (Enclosed Drive Configured with Power Options Cabinet)
Electrical Installation
Operating Guide | VLT® AQUA Drive FC 202
AQ262141056213en-000101 / 130R0882
84 | Danfoss A/S © 2018.10
