Datalogic Gryphon 2D Series Product Reference Guide

Introduction
4 Gryphon™ I GD/GBT/GM4500
Using the WLC4090 Radio Base
Radio Base LEDs
LEDs on the Gryphon Base provide information about the Base as well as battery charging
status, as shown in Figure
2

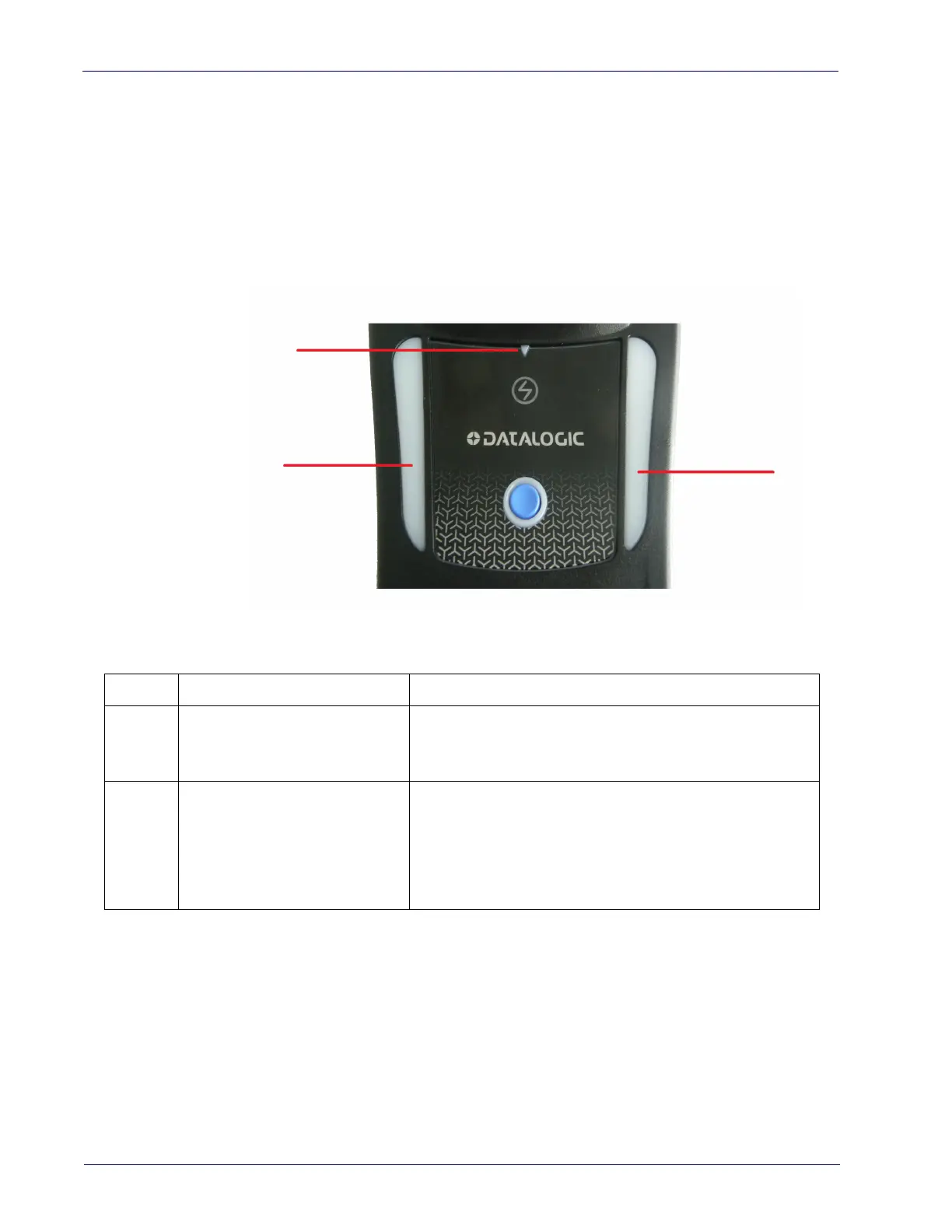

Figure 2 - Gryphon Base LEDs
1
2
2
Table 1 - Radio Base LEDs
LED STATUS
1 Power on / Data
Green On = Base is powered
Green Blinking = Base receives data and commands
from the
Host or the Reader
2 Charging
Green ON = the battery is completely
charged
Green fading = battery level 51 to 99%
Amber fading = battery level 1 to 50%
Red fading = pre-charge
The button can be used to force device connection
via the Datalogic Aladdin Software tool
and for paging the scanner when it is activated. Refer to the Gryphon I GBT/GM4500
Product Reference Guide (PRG) for a more detailed explanation.
