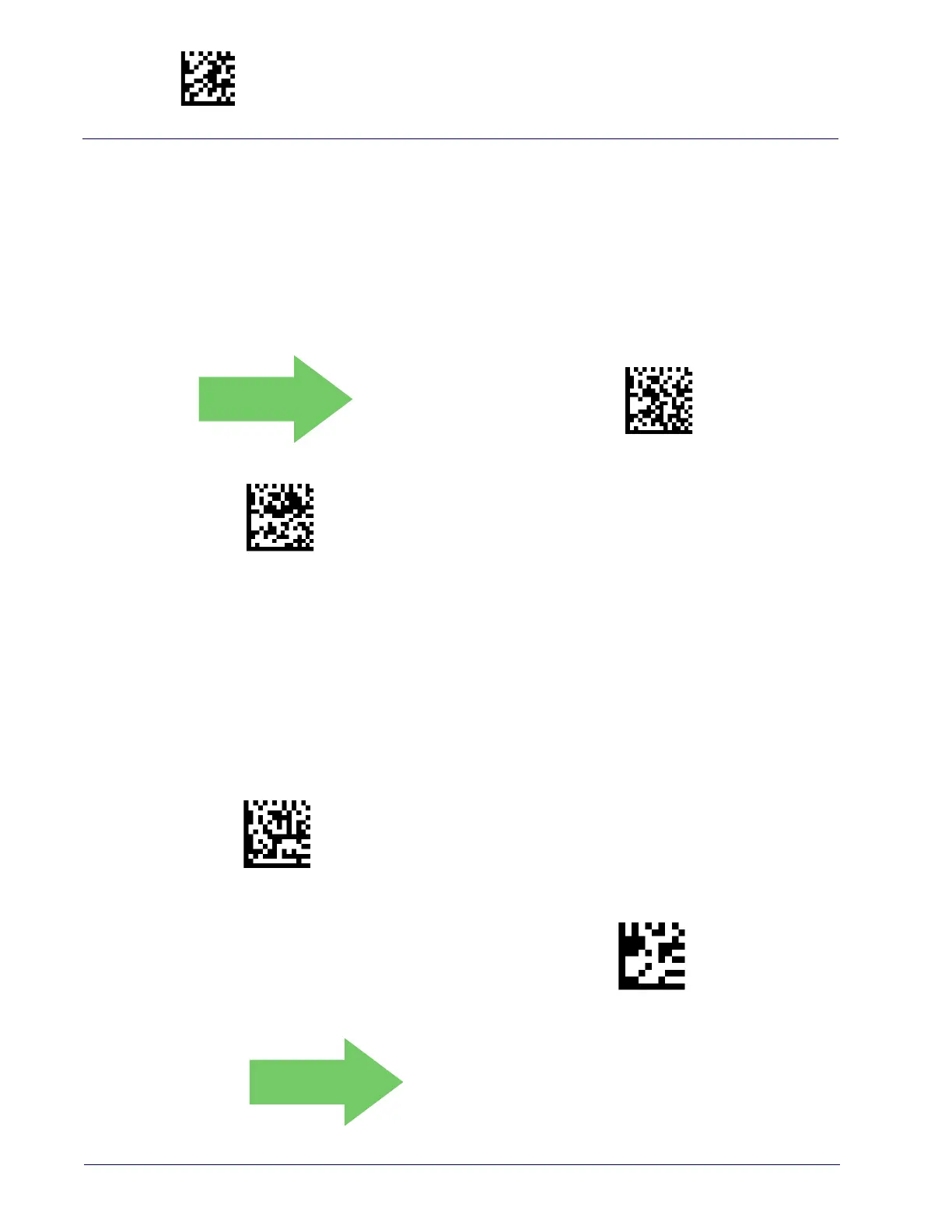

Enter/Exit Programming Mode Micro PDF417
234 Gryphon™ I GD/GBT/GM4500
Micro PDF417 Length Control
This feature specifies either variable length decoding or fixed length decoding
for this symbology.
Variable Length:
For variable length decoding, a minimum and maximum length
may be set.
Fixed Length:
For fixed length decoding, two different lengths may be set.
DEFAULT
Micro PDF417 Length Control = Variable Length
Micro PDF417 Length Control = Fixed Length
Micro PDF417 Set Length 1
Specifies one of the bar code lengths for Micro PDF417 Length Control on page
234
. Length 1 is the minimum label length if in Variable Lengt
h
Mode, or the
first fixed length if in Fixed Length Mode. Leng
th includes the bar code’s data
characters only. Characters can be set from 0001 to 0366 characters (pad with
zeroes) in increments of 01. Any value greater than 0366 will be considered to
be 0366.
See
page 302 for detailed instructions on setting this feature.
Select Micro PDF417 Length 1 Setting
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left follow
ed by the digits from the Alphanumeric char-
acters in
Appendix D, Keypad
representing your
desired character(s). End by scanning the ENTER/EXIT
bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save
the entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
0001 = Length 1 is 1 Character
