Setup
14 Gryphon™ I GD/GBT/GM4500
Positioning the Base Station
The base station/charger may be set up in desk application to hold the reader
in three different positions, either a horizontal or standing or vertical position,
in order to provide the most comfortable use depending on the needs.
Base Station Positions and related clips to be used

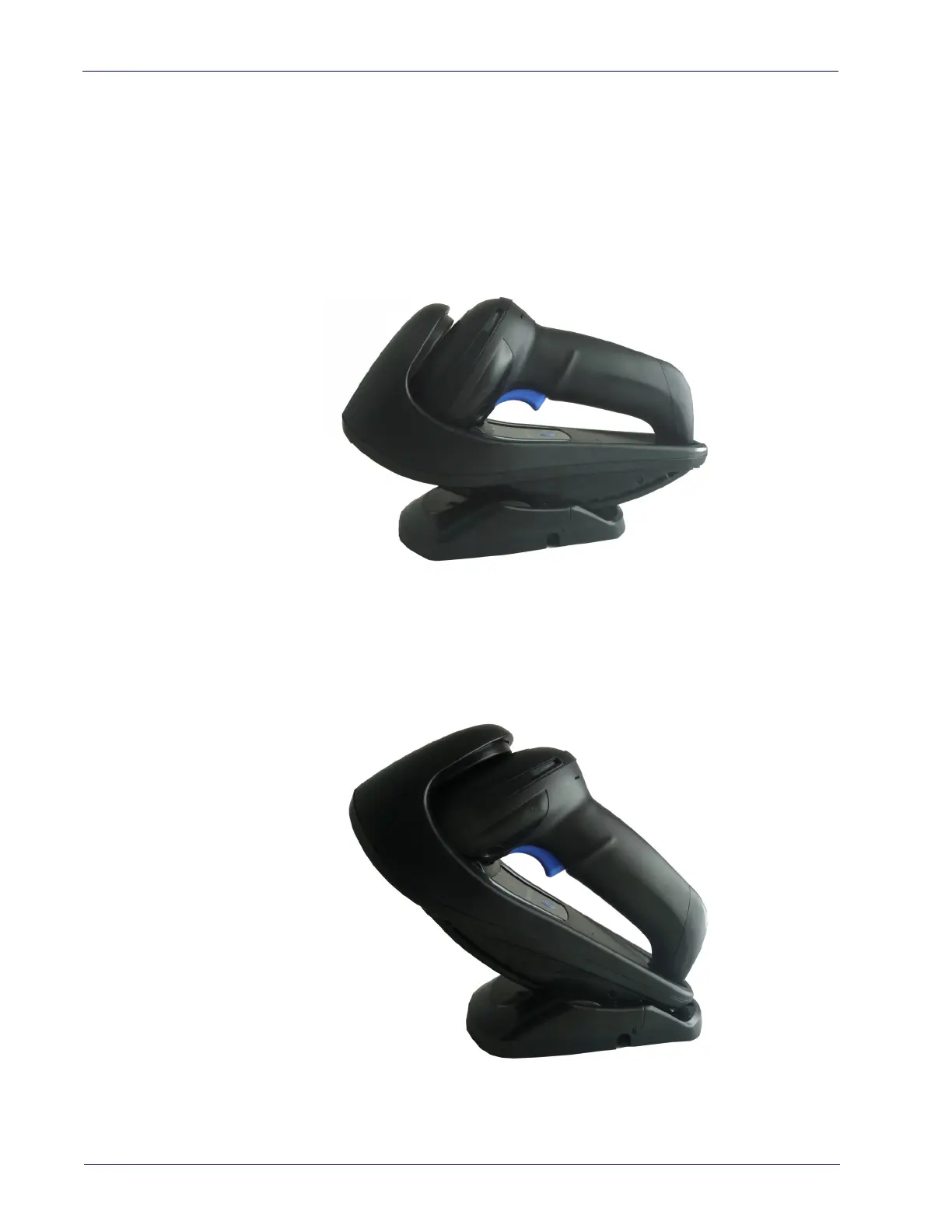

Figure 6 - Horizontal Position
This position is preferred, unless a different specific positioning is required, for
its outmost ease of insertion as well as the minimum effort and attention
required to customer when docking the scanner.
Figure 7 - Presentation Position
This position is preferred if the scanner is to be used in stand mode and not
needed to be often removed from base station.
