Datalogic Gryphon 2D Series Product Reference Guide

Using the WLC4090 Radio Base
Product Reference Guide 23
Using the WLC4090 Radio Base
Radio Base LEDs
LEDs on the Gryphon Base provide information about the Base as well as battery
charging status, as shown in the figure below.

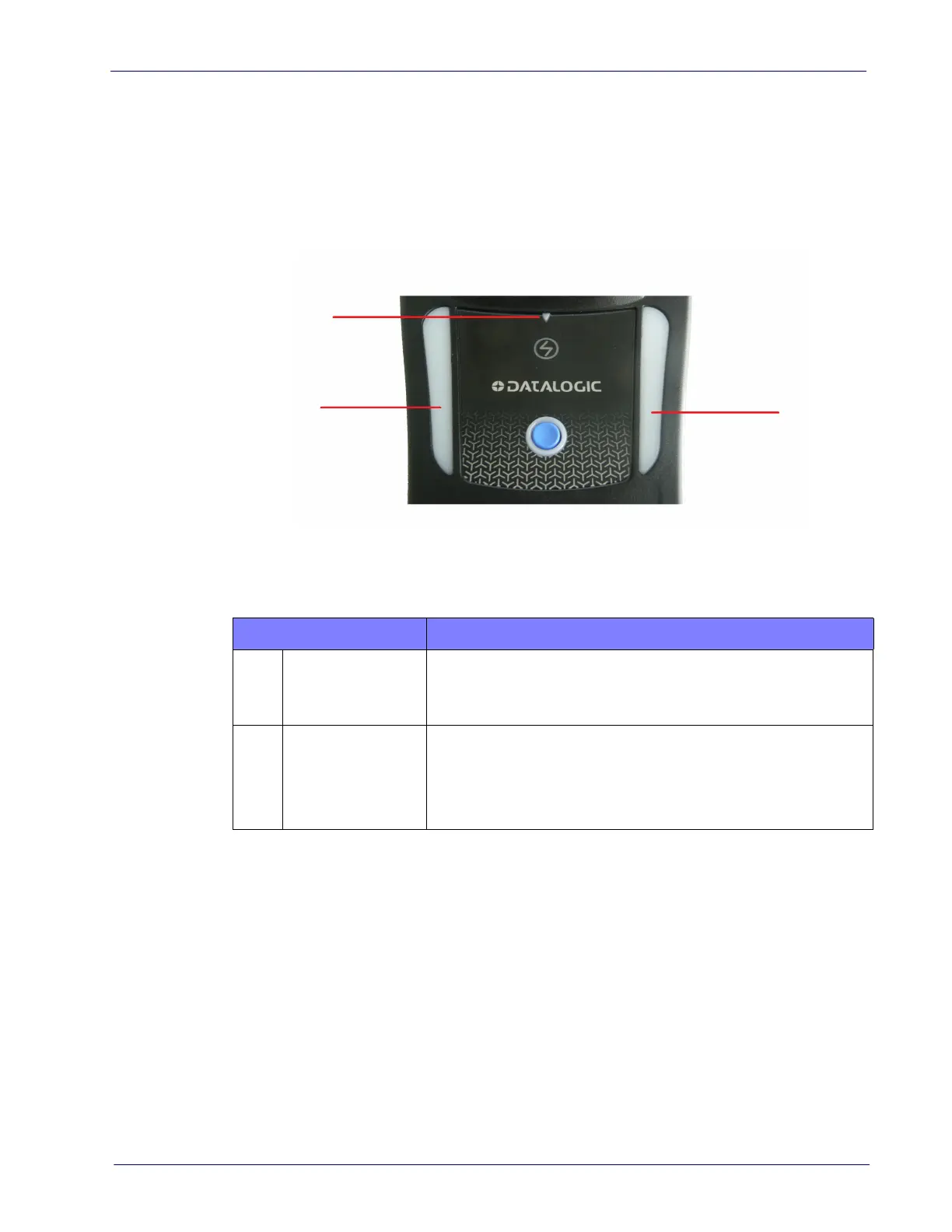

Figure 17 - Gryphon Base LEDs
2
2
1
Table 3 - Radio Base LEDs
LED STATUS
1 Power on / Data Green On = Base is powered
Green Blinking = Base receives data and commands from the
Hos
t or the Reader.
2 Charging Green ON = the battery is completely charged
Green fading = battery level 51 to 99%
Amber fading = battery level 1 to 50%
Red fading = pre-charge
The button can be used to force device connection via the Datalogic Aladdin
Softwar
e tool and for paging the scanner when it is activated. Refer to the
Gryphon I GBT/GM4500 Product Reference Guide (PRG) for a more detailed
expl
anation.
