Connecting the Base Station
The following figure shows how to connect the Base Station to a terminal, PC or
other host device. Turn off the host before connection and consult the manual
for that equipment (if necessary) before proceeding. Connect the interface
cable before applying power to the Base Station.
NOTE
The Gryphon GBT/GM4500 can also be Po
wered by the Terminal. When
powered by the Terminal, the battery charger is automatically set as Slow
charge.
For some specific interfaces or hosts or lengths of cable, the use of an exter-
nal power supply is recommended for full recharging capability (see "Techni-
cal Specifications" on page 39 for more details).
Base Station Connection and Routing
Fully insert the Power Cable and Interface (I/F) Cable connectors into their
respective ports in the underside of the Base Station. Then connect to an AC
Adapter, and plug the AC power cord into the (wall) outlet.

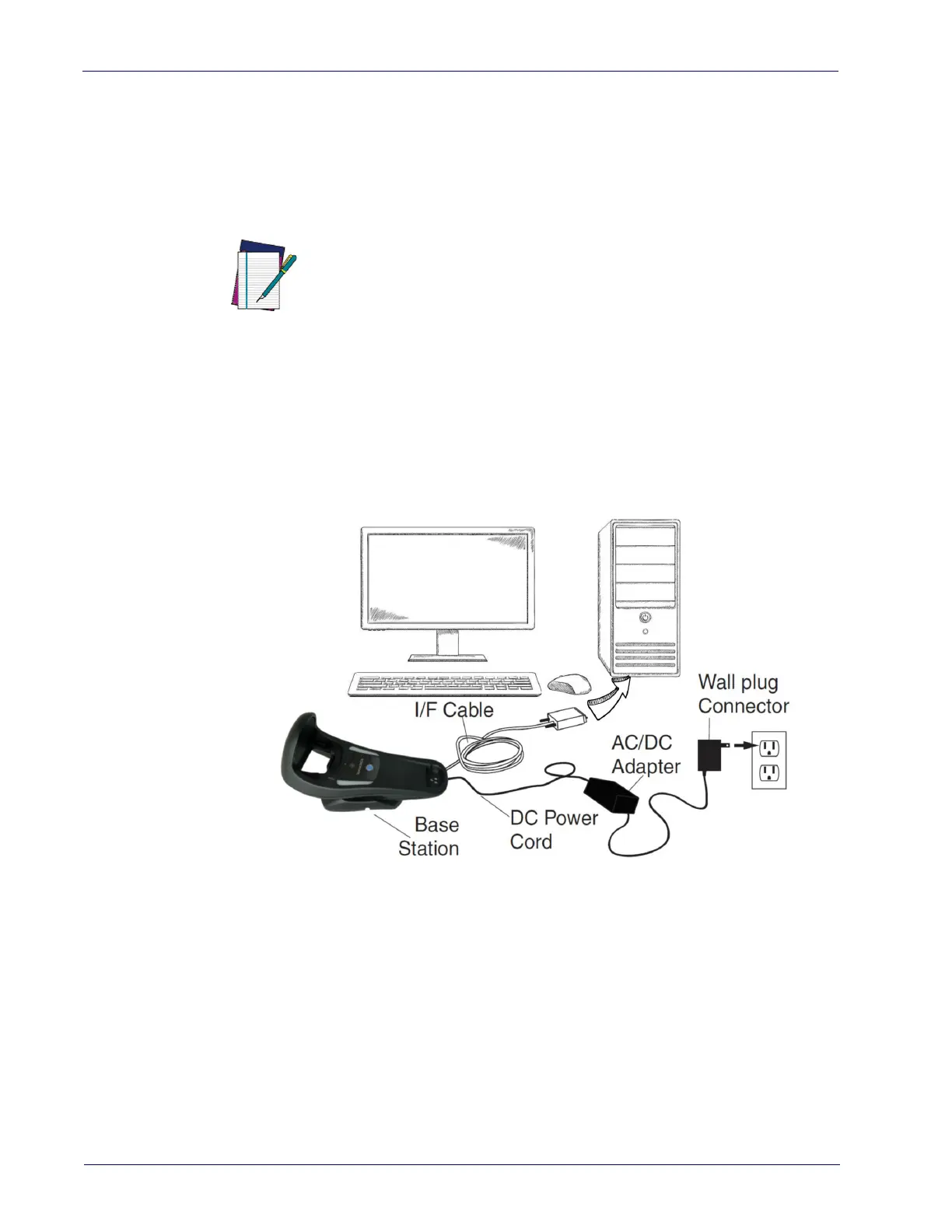

Figure 10 - Connecting the Base Station
To Next Page
