Label ID: Set Individually Per Symbology
To configure a Label ID individually for a single symbology:
1. Scan the ENTER/EXIT bar code.
2. Select Label ID position as either BEFORE (Enabl
e as Prefix) or AFTER
(Enable as suffix) by scanning the appropriate bar code in the section
"Label ID Control"
on page 79. Reference Figure 21 for Label ID positioning
options if multiple identification features are enabled.
3. Scan a bar code to select the symbology for which you wish to configure a
cu
stom Label ID from the section
Label ID Symbology Selection, starting on
page 80
.
4. Determine the desired character(s) (you may choose up to three) which will
re
present the Label ID for the selected symbology.
5. Turn to the
ASCII Chart on page 343
on the inside back cover of this manual
and find the equivalent hex digits associated wit
h your choice of Label ID.
For example, if you wish to select an equal sign (=) as a Label ID, the chart
indicates its associated hex characters as 3D. Turn to
Keypad, starting on
page 335
and scan the bar codes representing the hex characters deter-
mined. For the example given, the charact
ers ‘3’ and ‘D’ would be
scanned. More examples of Label ID settings are provided in
Table 16
.
NOTE
If you make a mistake before the last character, scan the CANCEL bar
code to abort
and not save the entry string. You can then start again at
the beginning.
6. Scan the ENTER/EXIT bar code to exit Label ID entry.
7. Scan the ENTER/EXIT bar code once agai
n to exit Programming Mode.
This completes the steps to configure
a Label ID for a given symbology.

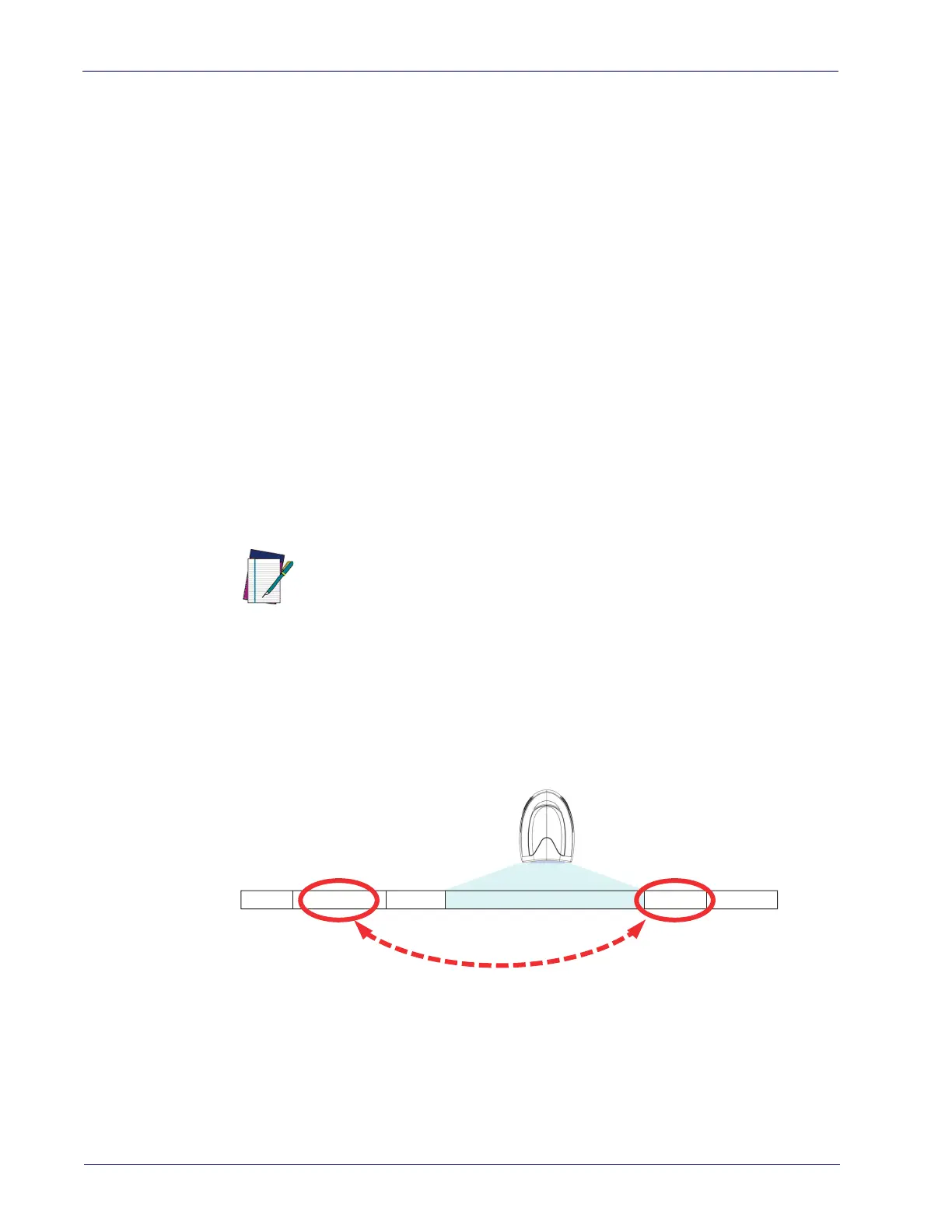

Figure 21. Label ID Position Options
