Enter/Exit Programming Mode GS1 DataBar™ Limited

134 QuickScan™ Lite QW2400

GS1 DataBar™ Limited

The following options apply to the GS1 DataBar Limited (formerly RSS Limited)

symbology.

GS1 DataBar Limited Enable/Disable

When disabled, the scanner will not read GS1 DataBar Limited bar codes.

GS1 DataBar Limited GS1-128 Emulation

When enabled, GS1 DataBar Limited bar codes will be translated to the GS1-128

label data format.

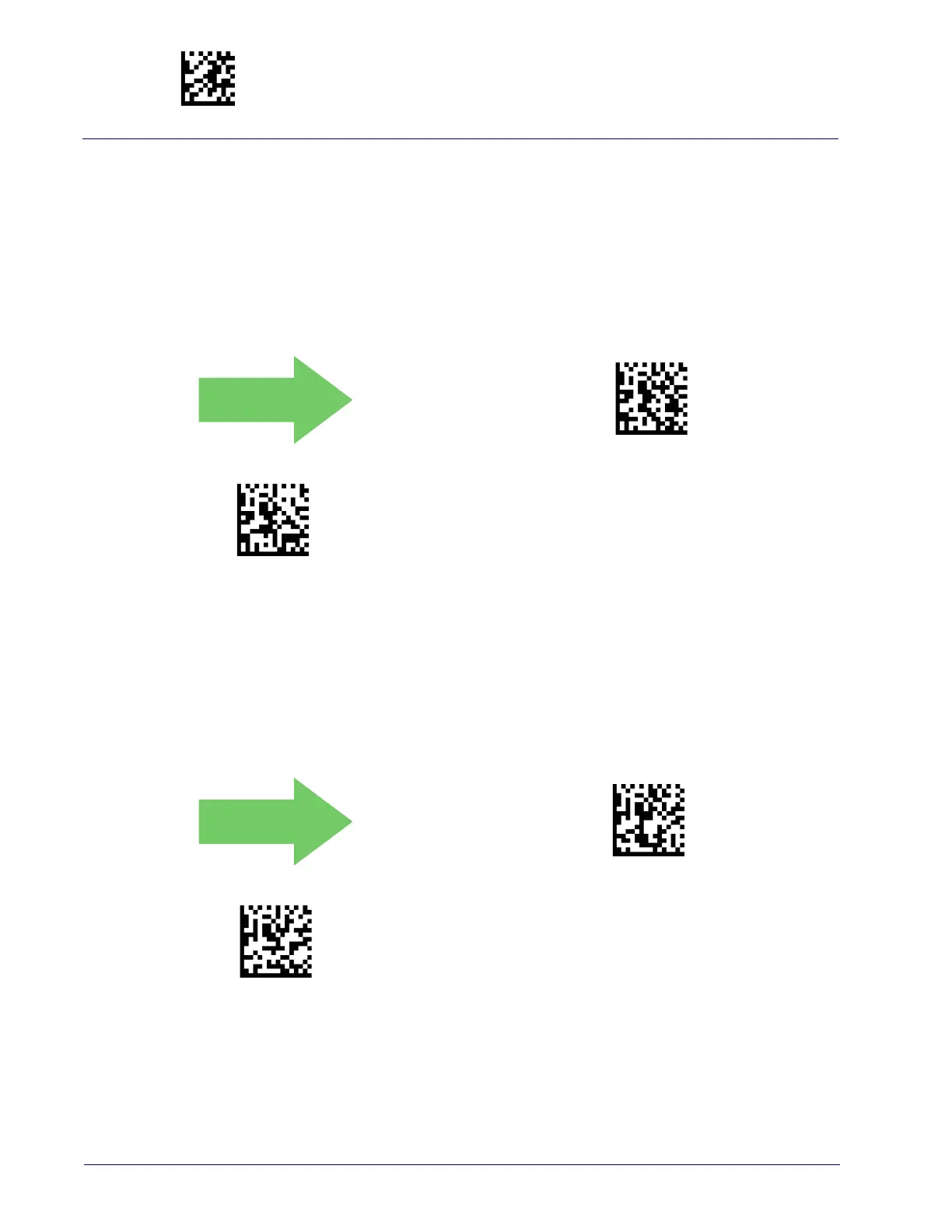

$CLBEN00

GS1 DataBar Limited = Disable

$CLBEN01

GS1 DataBar Limited = Enable

DEFAULT

$CLBU800

GS1 DataBar Limited GS1-128 Emulation = Disable

$CLBU801

GS1 DataBar Limited GS1-128 Emulation = Enable

DEFAULT
