Datalogic QuickScan Lite QW2400 User Manual

Standard Cable Pinouts
Product Reference Guide 269
Standard Cable Pinouts

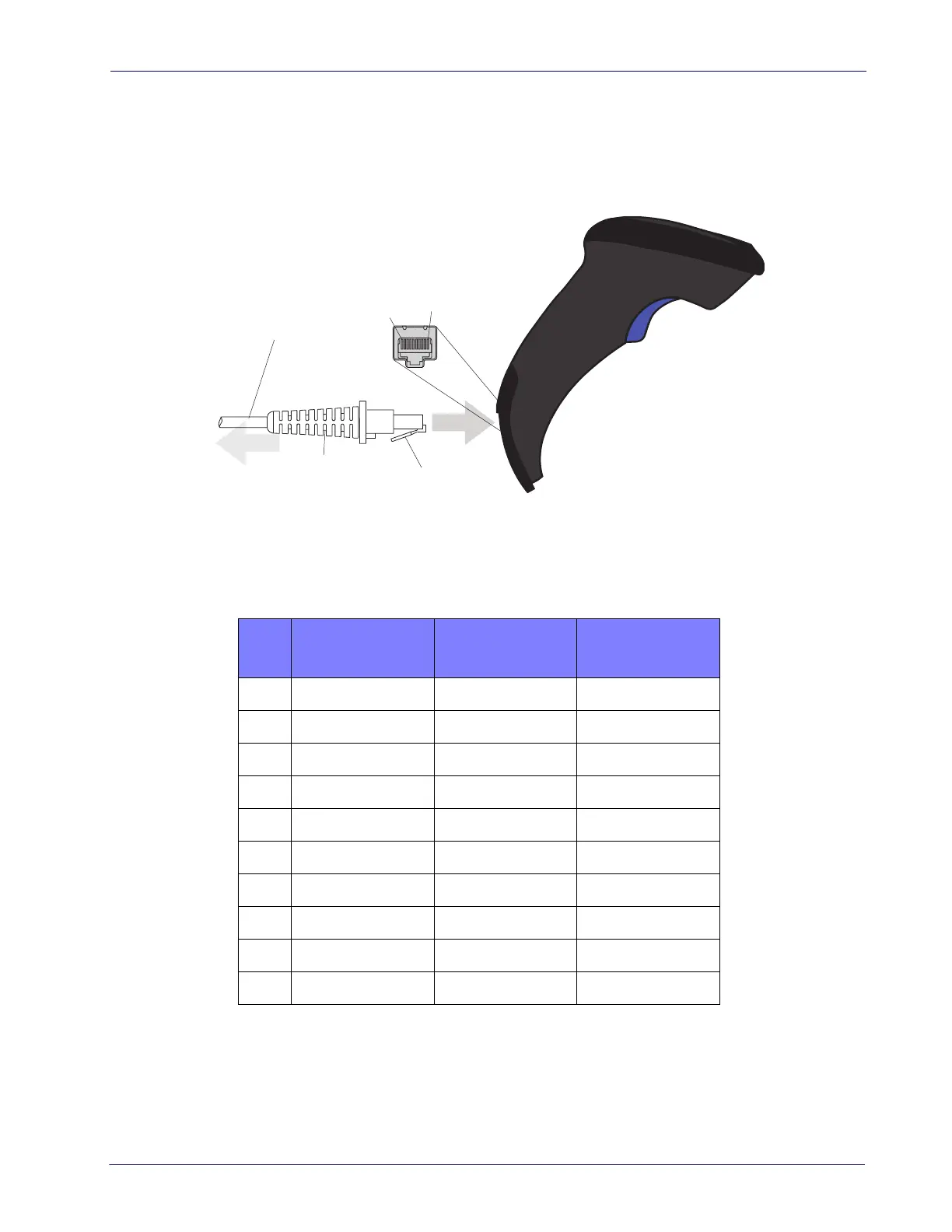

Figure 11 and Table 21 provide standard pinout information for the scanner’s
cable.
Figure 11. Standard Cable Pinouts
The signal descriptions in Table 21 apply to the connector on the scanner and
are for reference only.
Table 21. Standard Cable Pinouts — Scanner Side
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Interface Cable Port
Pin 1
Pin 10
Pin
RS-232
(QW2470 only)
USB
(QW2420 only)
Keyboard Wedge
(QW2470 only)
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9 DATAOUT (PC side)
10 CTS (in)

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
