Reading Parameters Enter/Exit Programming Mode

Product Reference Guide

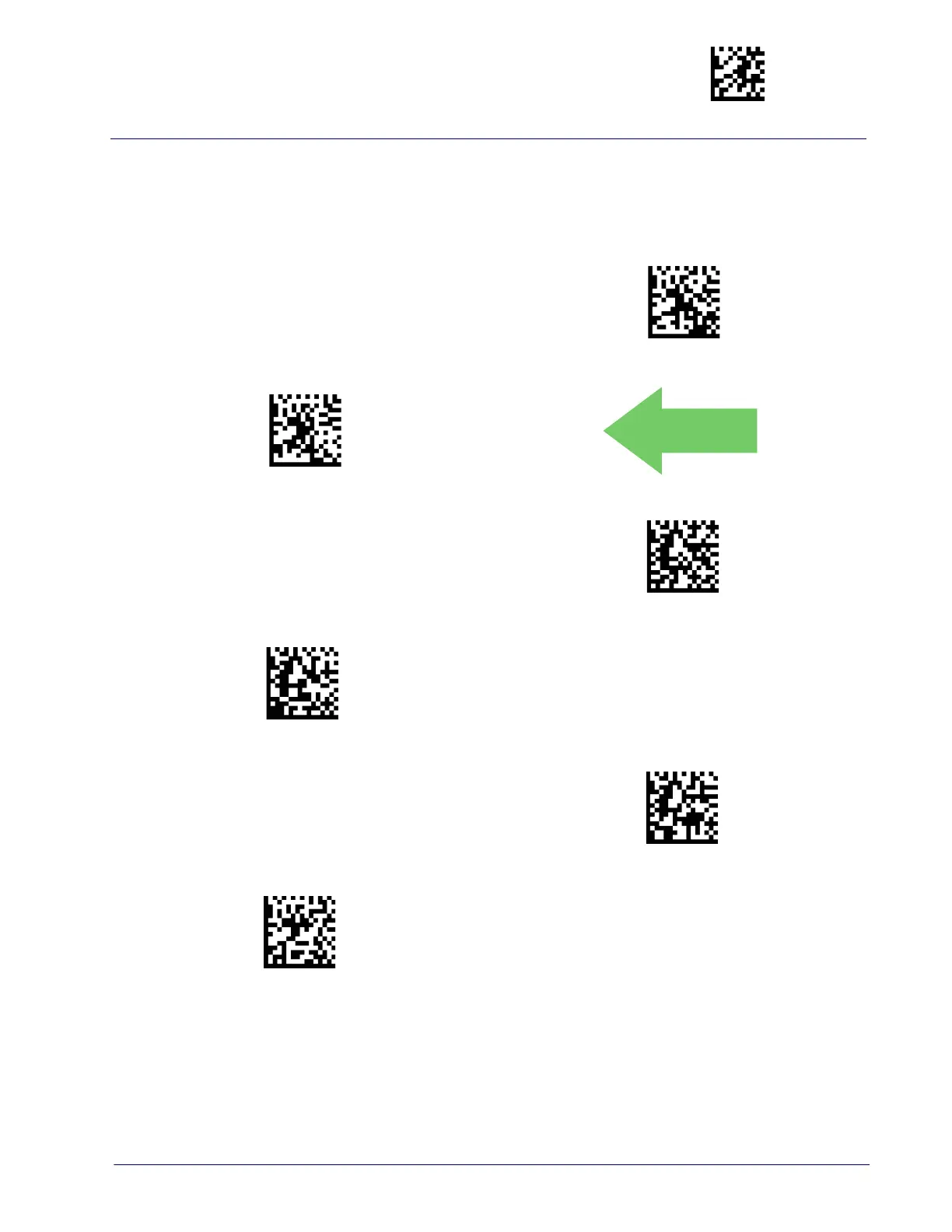

Good Read Beep Length

Specifies the duration of a good read beep.

$CBPLE06

Good Read Beep Length = 60 msec

$CBPLE08

Good Read Beep Length = 80 msec

$CBPLE0A

Good Read Beep Length = 100 msec

$CBPLE0C

Good Read Beep Length = 120 msec

$CBPLE0E

Good Read Beep Length = 140 msec

$CBPLE10

Good Read Beep Length = 160 msec

DEFAULT

Default Chapter3
- Table of Contents3
