Datalogic QuickScan Lite QW2400 User Manual

Using the QuickScan Lite QW24XX
Product Reference Guide 9
Using the QuickScan Lite QW24XX
The QuickScan Lite QW24XX normally functions by capturing and decoding
codes. The aiming system is activated on trigger pull and indicates the center of
the field of view which should be positioned over the bar code:
Aiming System

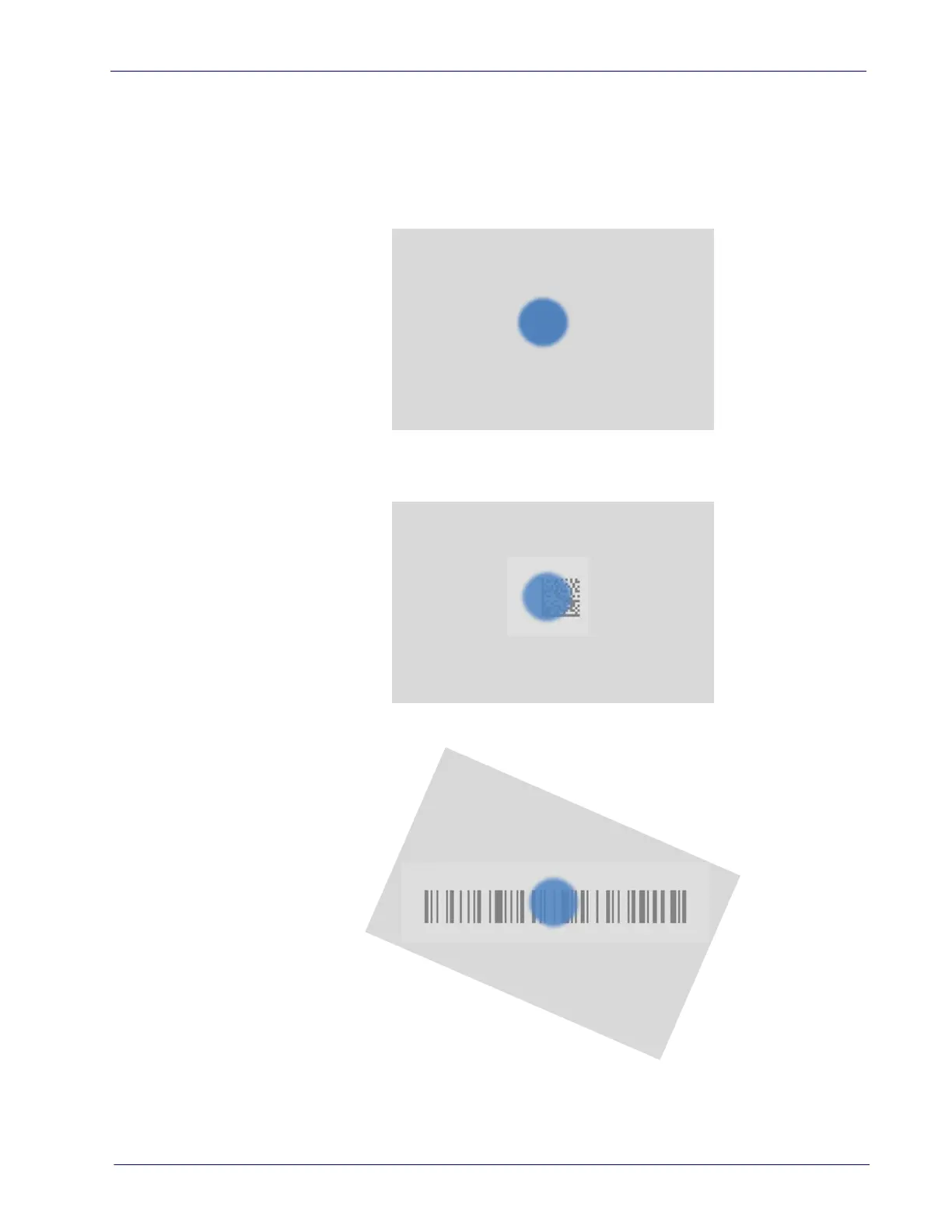

Relative Size and Location of Aiming System Pattern
2D Matrix Symbol
Linear Bar

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
