Enter/Exit Programming Mode Code 93

196 QuickScan™ Lite QW2400

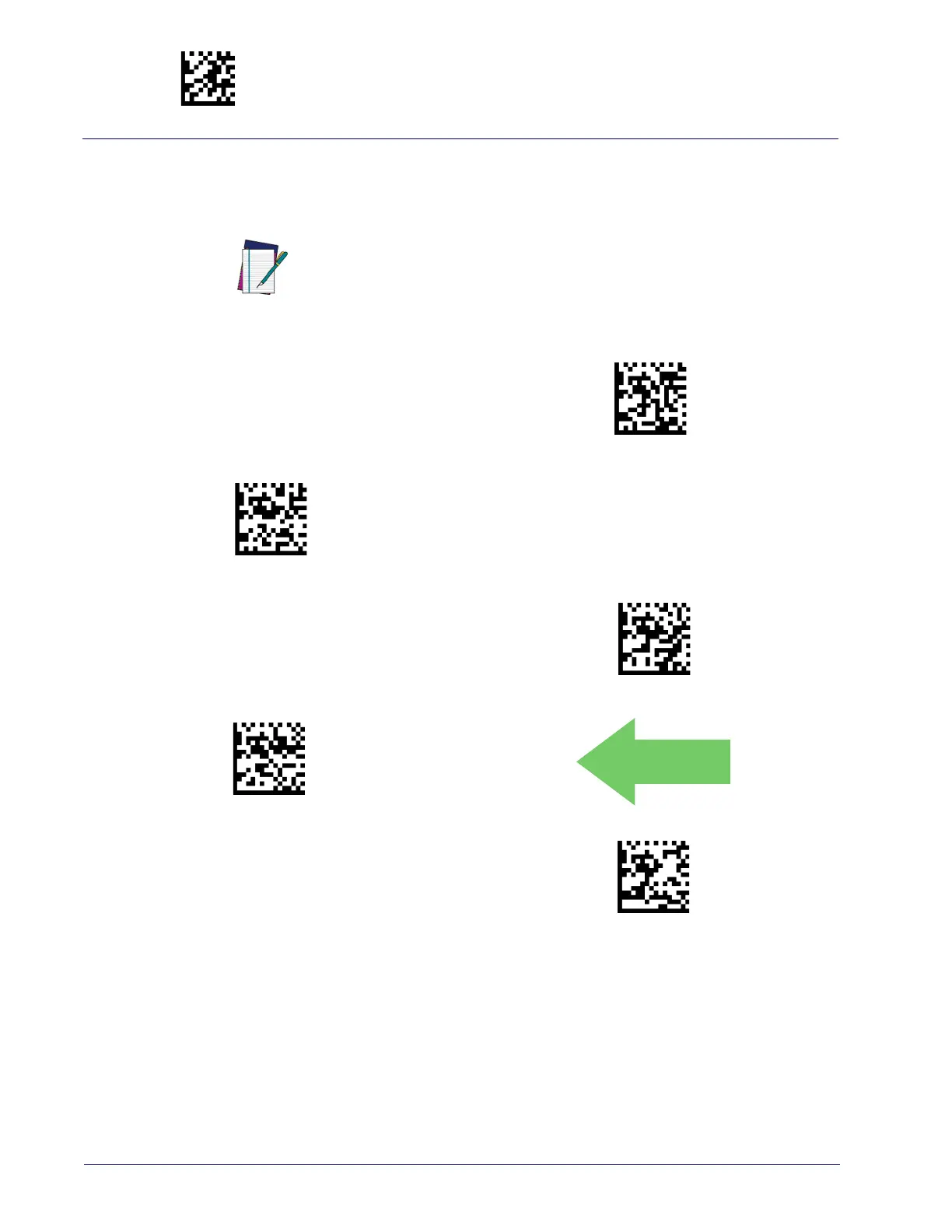

Code 93 Quiet Zones

Enables/disables fixed length stitching for Code 93.

NOTE

This feature is available only on the TD1130 model.

$CC9LO00

Code 93 Quiet Zones = No Quiet Zones

$CC9LO01

Code 93 Quiet Zones = Quiet Zone on one side

$CC9LO02

Code 93 Quiet Zones = Quiet Zones on two sides

$CC9LO03

Code 93 Quiet Zones = Auto

$CC9LO04

Code 93 Quiet Zones = Virtual Quiet Zones on two sides

DEFAULT
