To Next Page

To Previous Page

Enter/Exit Programming Mode UCC Composite

228 QuickScan™ Lite QW2400

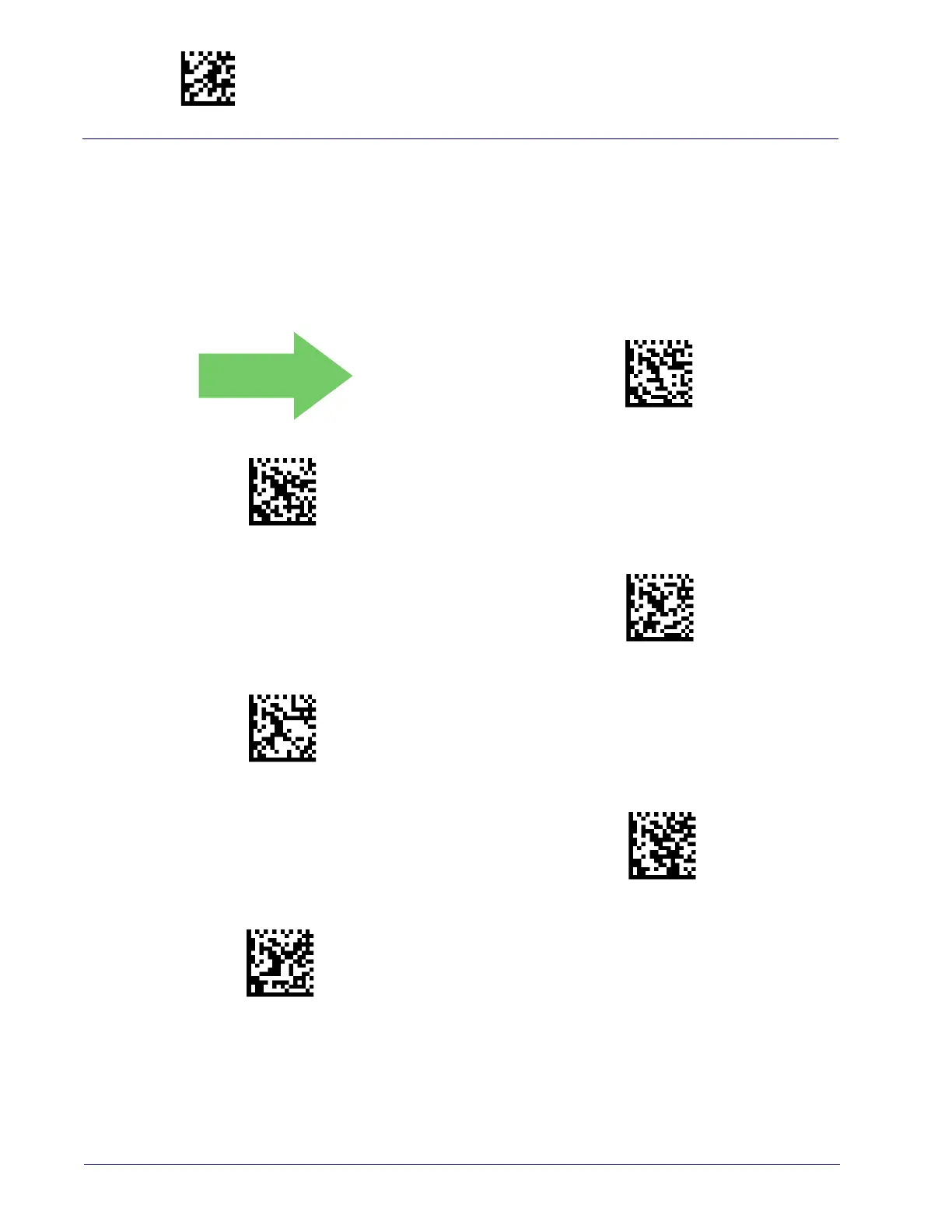

UCC Composite

UCC Optional Composite Timer

Specifies the amount of time the system will wait for the stacked part of a UCC

Composite label before transmitting the linear label without an add-on.

UCC Optional Composite Timer = Timer Disabled

UCC Optional Composite Timer = 100msec

UCC Optional Composite Timer = 200msec

UCC Optional Composite Timer = 300msec

UCC Optional Composite Timer = 400msec

UCC Optional Composite Timer = 500msec

DEFAULT

$CCMOT00(CR)

$CCMOT01(CR)

$CCMOT02(CR)

$CCMOT03(CR)

$CCMOT04(CR)

$CCMOT05(CR)

Default Chapter3
