Product Reference Guide 5
Chapter 2
Setup
Unpacking
Check carefully to ensure the scanner and any cables or accessories ordered are
present and undamaged. If any damage occurred during shipment, contact
Technical Support on page 3.
KEEP THE PACKAGING. Should the unit ever require service, it should be
re
turned in its original shipping container.
Setting Up the Scanner
Follow the steps provided in this section to connect and get your scanner up
and communicating with its host:
1. Connect the Interface Cable at the
scanner as shown in Figure 2. To dis-
connect the cable, insert a paper clip or similar object into the opening
shown (item #3).
2. Connect the other end to the Host (see the next section,
Connect Host Inter-
face on page 6
and Figure 3).
3. Modify "
Customizing Configuration Settings" on page 14 (only if modifications
are needed from factory settings).

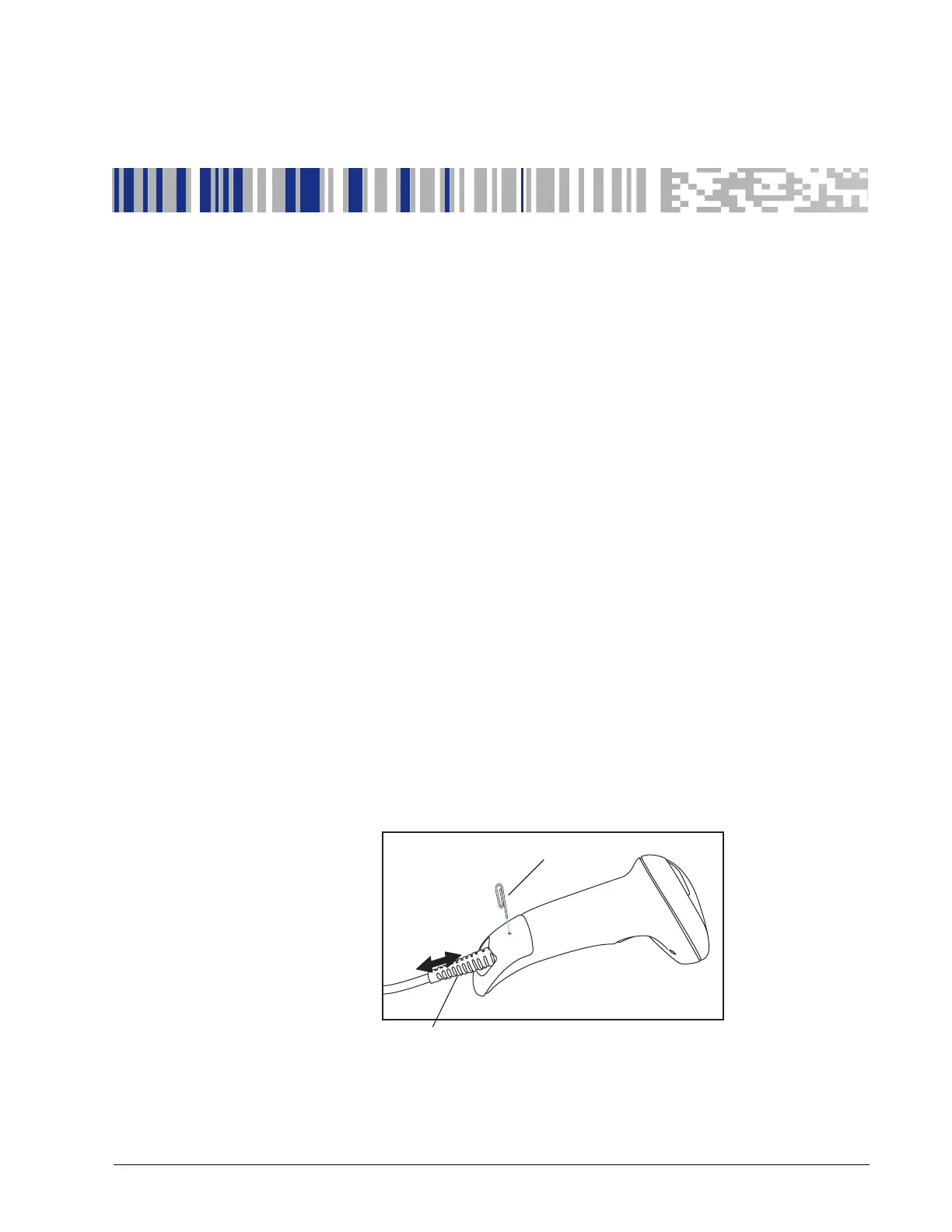

Figure 2. Cable Connection/Disconnection at the Scanner
Cable Connector
Paper clip
r

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
