Datalogic QuickScan Lite QW2400 User Manual

Setting Up the Scanner
Product Reference Guide 7

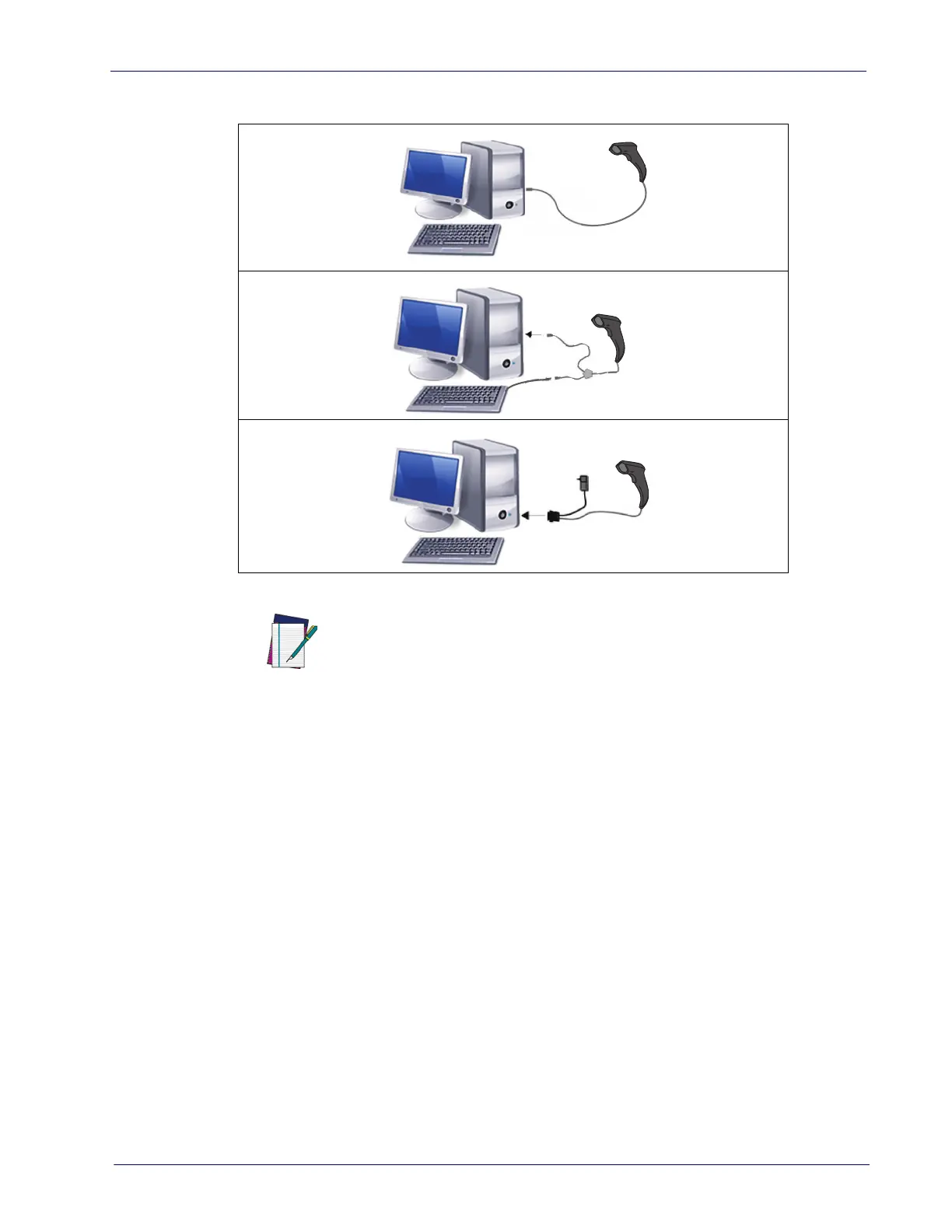

Figure 3. Connection to the Host
USB
WEDGE
RS-232
NOTE
Specific cables are required for connection to different hosts. The connec-
tions illustrated in Figure 3 are examples only. Actual connectors may vary
from those illustrated, but the steps to con
nect the scanner remain the
same.
QW2470
only
QW2420
only
QW2470
only

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
