Enter/Exit Programming Mode LED and Speaker Indicators

90 QuickScan™ Lite QW2400

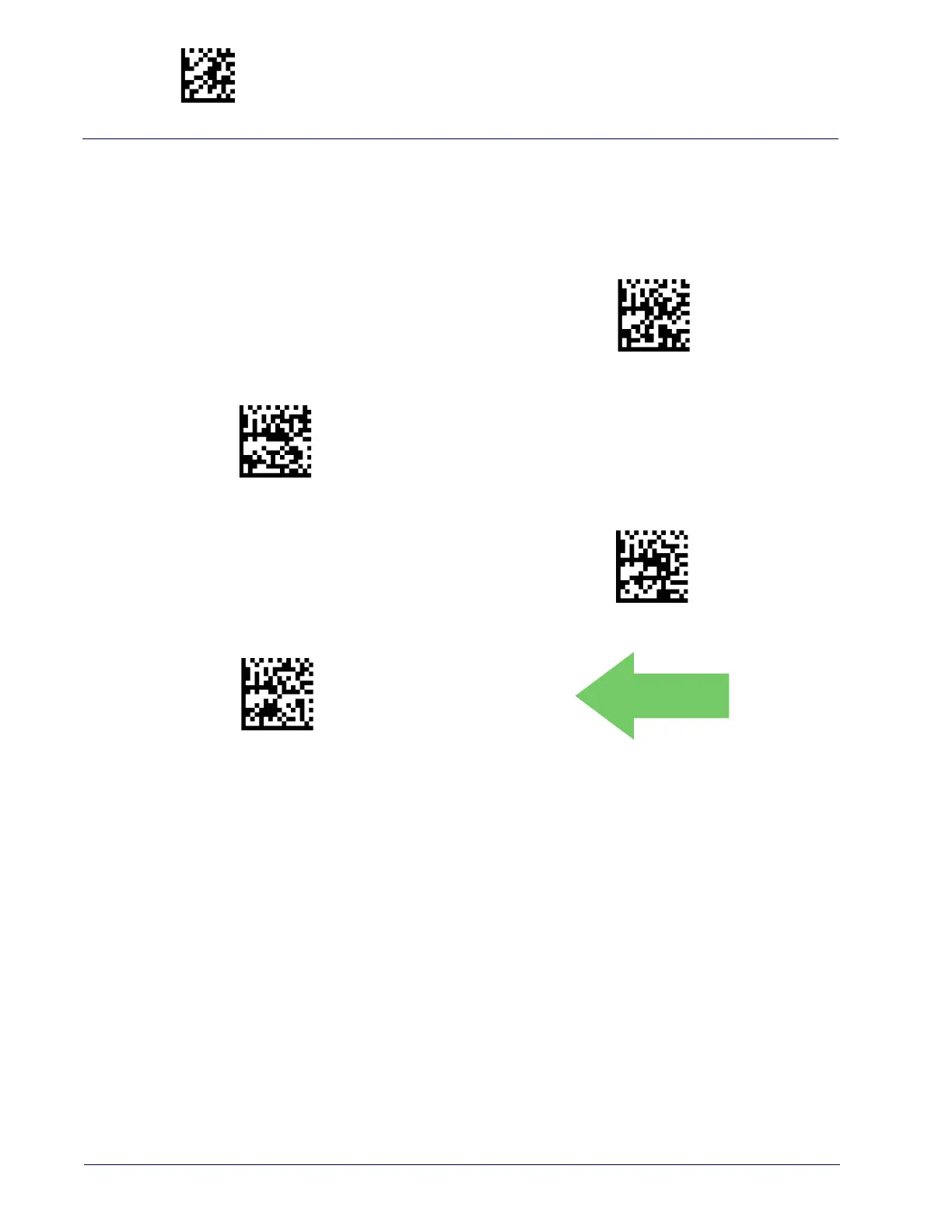

Good Read Speaker Volume

Selects the speaker volume (loudness) upon a good read beep. There are three

selectable volume levels.

$CBPVO00

Good Read Speaker Volume = Speaker Off

$CBPVO01

Good Read Speaker Volume = Low

$CBPVO02

Good Read Speaker Volume = Medium

$CBPVO03

Good Read Speaker Volume = High

DEFAULT

Default Chapter3
- Table of Contents3
Introduction9
- About the Scanner9
  - Using the Quickscan Reader9
- About this Manual10
  - Overview10
  - Manual Conventions11
- Technical Support11
Setup13
- Unpacking13
- Setting up the Scanner13
- Using the Quickscan Lite QW24XX17
- Interface Selection19
  - Configuring the Interface19
- Customizing Configuration Settings22
Configuration Using Bar Codes25
- Configuration Parameters25
- Global Interface Features27
  - Host Commands - Obey/Ignore27
  - USB Suspend Mode28
- Only Interface29
- RS-232 Standard Factory Settings29
- Baud Rate29
- Data Bits30
- Stop Bits31
- Parity31
- Handshaking Control32
- Rs-232/Usb-Com Interfaces33
- Standard Factory Settings33
- Intercharacter Delay33
- Beep on ASCII BEL33
- Beep on Not on File35
- ACK NAK Options36
  - ACK Character37
  - NAK Character37
  - ACK NAK Timeout Value38
  - ACK NAK Retry Count39
  - ACK NAK Error Handling40
- Indicate Transmission Failure41
- Disable Character41
- Enable Character42
- Keyboard Interface43
- Country Mode44
  - Setup on PC to Use ALT Universal44
  - Setting Country Mode45
  - Setting Encoding Type59
  - Setting ALT Output Type66
Caps Lock State67
Numlock67
Keyboard Numeric Keypad68
Keyboard Send Control Characters69
Wedge Quiet Interval70
Intercharacter Delay71
Intercode Delay72
USB Keyboard Speed73
Usb-Oem Interface75
Introduction75
Standard Factory Settings75
USB-OEM Device Usage76
USB-OEM Interface Options76
Data Format77
Global Prefix/Suffix78
- Global Prefix /Suffix78
Global AIM ID79
Gs1-128 Aim ID79
Label ID80
- Label ID: Pre-Loaded Sets80
- Label ID: Set Individually Per Symbology81
- Label ID Control81
- Label ID Symbology Selection82
Case Conversion88
Character Conversion88
Reading Parameters91
Double Read Timeout92
Reading Performance94
LED and Speaker Indicators95
- Power on Alert95
- Good Read: When to Indicate96
- Good Read Beep Type97
- Good Read Beep Frequency97
- Good Read Speaker Volume98
- Good Read Beep Length99
- Enable/Disable Good Read Indicator100
Scanning Features101
- Scan Mode101
- Scanning Active Time102
- Stand Mode Flash102
- Flash on Time103
- Flash off Time103
- Stand Mode Sensitivity104
- Pick Mode105
1D Symbologies107
Introduction107
Standard Factory Settings for Symbologies107
Disable All Symbologies108
Coupon Control108
Upc-A109
- UPC-A Enable/Disable109
- UPC-A Check Character Transmission109
- Expand UPC-A to EAN-13110
- UPC-A Number System Character Transmission110
Upc-E112
- UPC-E Enable/Disable112
- UPC-E Check Character Transmission112
- Expand UPC-E to EAN-13113
  - Expand UPC-E to UPC-A113
  - UPC-E Number System Character Transmission114
- Ean 13115
- Ean 8118
- UPC/EAN Global Settings120
  - UPC/EAN Price Weight Check120
- Add-Ons121
  - Optional Add-On Timer122
- GS1 Databar ™ Omnidirectional123
  - GS1 Databar Omnidirectional Enable/Disable123
  - GS1 Databar Omnidirectional GS1-128 Emulation123
- GS1 Databar™ Expanded125
- GS1 Databar™ Limited128
  - GS1 Databar Limited Enable/Disable128
  - GS1 Databar Limited GS1-128 Emulation128
- Code 39129
- Code 32 (Italian Pharmaceutical)137
- Code 39 CIP (French Pharmaceutical)138
  - Code 39 CIP Enable/Disable138
- Code 128139
- Gs1-128145
  - GS1-128 Enable145
- Interleaved 2 of 5 (I 2 of 5)146
Interleaved 2 of 5 CIP HR151
- Interleaved 2 of 5 CIP HR Enable/Disable151
Datalogic 2 of 5152
- Datalogic 2 of 5 Enable/Disable152
- Datalogic 2 of 5 Check Character Calculation152
- Datalogic 2 of 5 Check Character Transmission153
- Datalogic 2 of 5 Length Control153
- Datalogic 2 of 5 Set Length 1154
- Datalogic 2 of 5 Set Length 2155
Codabar156
- Codabar Enable/Disable156
- Codabar Check Character Calculation156
- Codabar Check Character Transmission157
- Codabar Start/Stop Character Transmission157
- Codabar Start/Stop Character Set158
- Codabar Start/Stop Character Match158
- Codabar Quiet Zones159
- Codabar Length Control160
- Codabar Set Length 1161
- Codabar Set Length 2162
ABC Codabar163
- ABC Codabar Enable/Disable163
- ABC Codabar Concatenation Mode163
- ABC Codabar Dynamic Concatenation Timeout164
- ABC Codabar Force Concatenation164
Code 11165
- Code 11 Enable/Disable165
- Code 11 Check Character Calculation166
- Code 11 Check Character Transmission166
- Code 11 Length Control167
- Code 11 Set Length 1167
- Code 11 Set Length 2168
Standard 2 of 5169
- Standard 2 of 5 Enable/Disable169
- Standard 2 of 5 Check Character Calculation169
- Standard 2 of 5 Check Character Transmission170
- Standard 2 of 5 Length Control170
- Standard 2 of 5 Set Length 1171
- Standard 2 of 5 Set Length 2172
Industrial 2 of 5173
- Industrial 2 of 5 Enable/Disable173
- Industrial 2 of 5 Check Character Calculation173
- Industrial 2 of 5 Check Character Transmission174
- Industrial 2 of 5 Length Control174
- Industrial 2 of 5 Set Length 1175
- Industrial 2 of 5 Set Length 2176
Iata177
- IATA Enable/Disable177
- IATA Check Character Transmission177
Isbt 128178
- ISBT 128 Concatenation178
- ISBT 128 Concatenation Mode178
- ISBT 128 Dynamic Concatenation Timeout179
- ISBT 128 Force Concatenation180
- ISBT 128 Advanced Concatenation Options180
Msi181
- MSI Enable/Disable181
- MSI Check Character Calculation181
- MSI Check Character Transmission182
  - MSI Length Control182
  - MSI Set Length 1183
- Code 93185
- Follett 2 of 5191
  - Follett 2 of 5 Enable/Disable191
- Bc412191
- 2D Symbologies195
- 2D Global Features195
- Symbology Selection198
- Aztec Code198
  - Aztec Code Enable / Disable198
  - Aztec Code Length Control198
- China Sensible Code201
  - China Sensible Code Enable / Disable201
  - China Sensible Code Length Control201
- Data Matrix204
- Maxicode207
- Pdf417210
  - PDF417 Enable / Disable210
  - PDF417 Length Control210
- Micro PDF417213
- QR Code216
  - QR Code Enable / Disable216
  - QR Code Length Control216
- Micro QR Code219
  - Micro QR Code Enable/Disable219
  - Micro QR Code Length Control219
- UCC Composite222
  - UCC Optional Composite Timer222
- Postal Code Selection223
  - Postnet BB Control224
References225
- Parameters226
  - Only226
  - RS-232/USB COM Parameters227
- Keyboard Interface234
- Data Format237
- Scanning Features245
- Symbologies249
  - Set Length251
Technical Specifications253
- LED and Beeper Indications256
  - Programming Mode257
- Troubleshooting258
- Standard Cable Pinouts259
Standard Defaults261
- Default Exceptions269
Sample Bar Codes273
Keypad277
Scancode Tables279
- Control Character Emulation279
  - Single Press and Release Keys279
- Interface Type PC at PS/2 or USB-Keyboard280
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode282
- Microsoft Windows Codepage 1252284
Index285
