Datalogic QuickScan Lite QW2400 User Manual

Enter/Exit Programming Mode Handshaking Control
24 QuickScan™ Lite QW2400
Handshaking Control
The data interface consists of an RS-232 port designed to operate either with
or without the hardware handshaking lines, Request to Send (RTS), and Clear to
Send (CTS). Handshaking Control includes the following options:
• RTS — RTS is asserted during trans
missions. CTS is ignored.
• RTS/CTS — RTS is asserted during t
ransmissions. CTS gates transmis-
sions.
• RTS/XON/XOFF — RTS is asserted during transmissions.
CTS is ignored.
XON and XOFF gate transmissions.
• RTS On/CTS — RTS is always asserted. CTS gates transmissions.
• RTS/CTS Scan Control — RTS is asserte
d during transmissions. CTS gates
transmissions and controls enable and disable state of scanner.

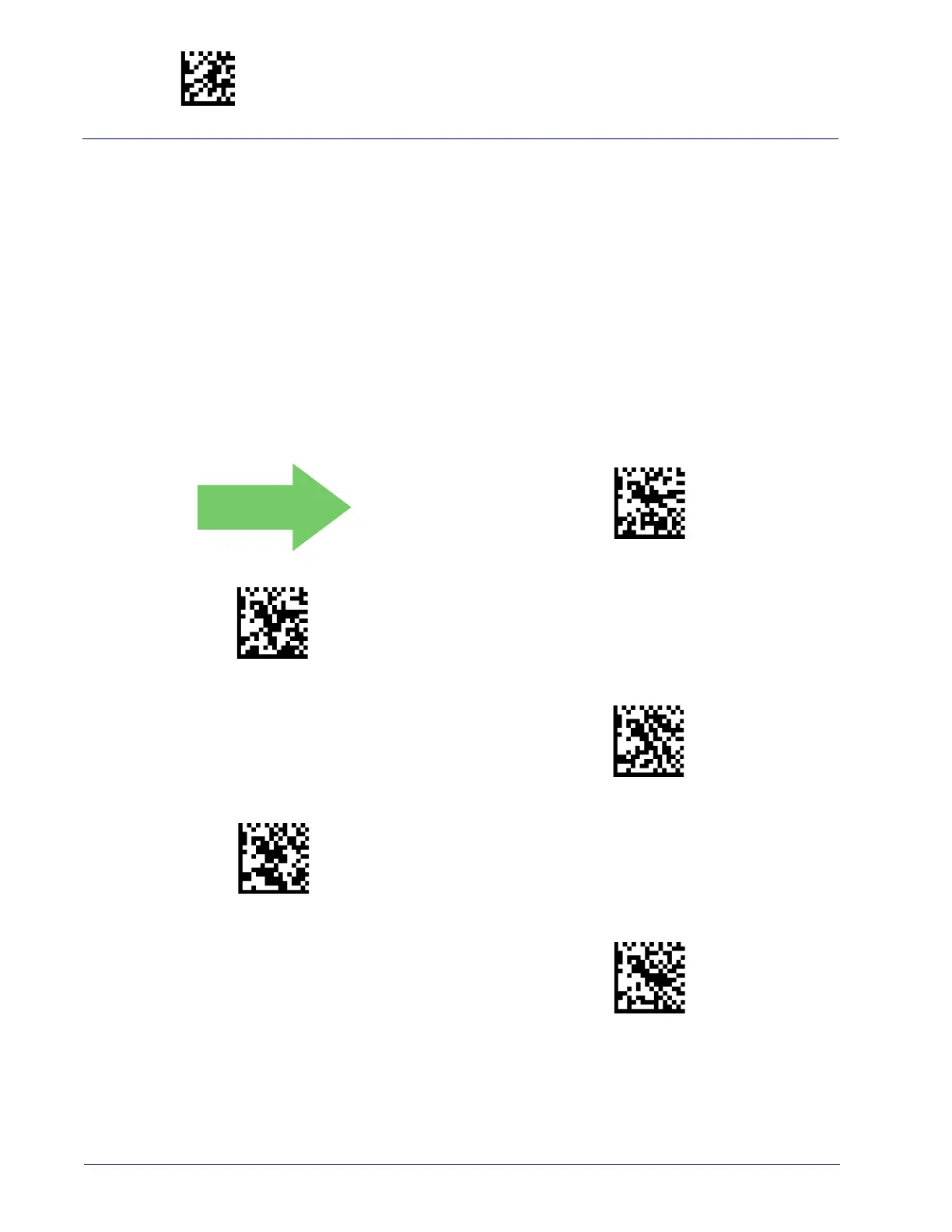

$CR2HC00
Handshaking Control = RTS
$CR2HC01
Handshaking Control = RTS/CTS
$CR2HC02
Handshaking Control = RTS/XON/XOFF
$CR2HC03
Handshaking Control = RTS On/CTS
$CR2HC04
Handshaking Control = RTS/CTS Scan Control
DEFAULT

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
