Datalogic QuickScan Lite QW2400 User Manual

Enter/Exit Programming Mode Data Matrix
210 QuickScan™ Lite QW2400
Data Matrix

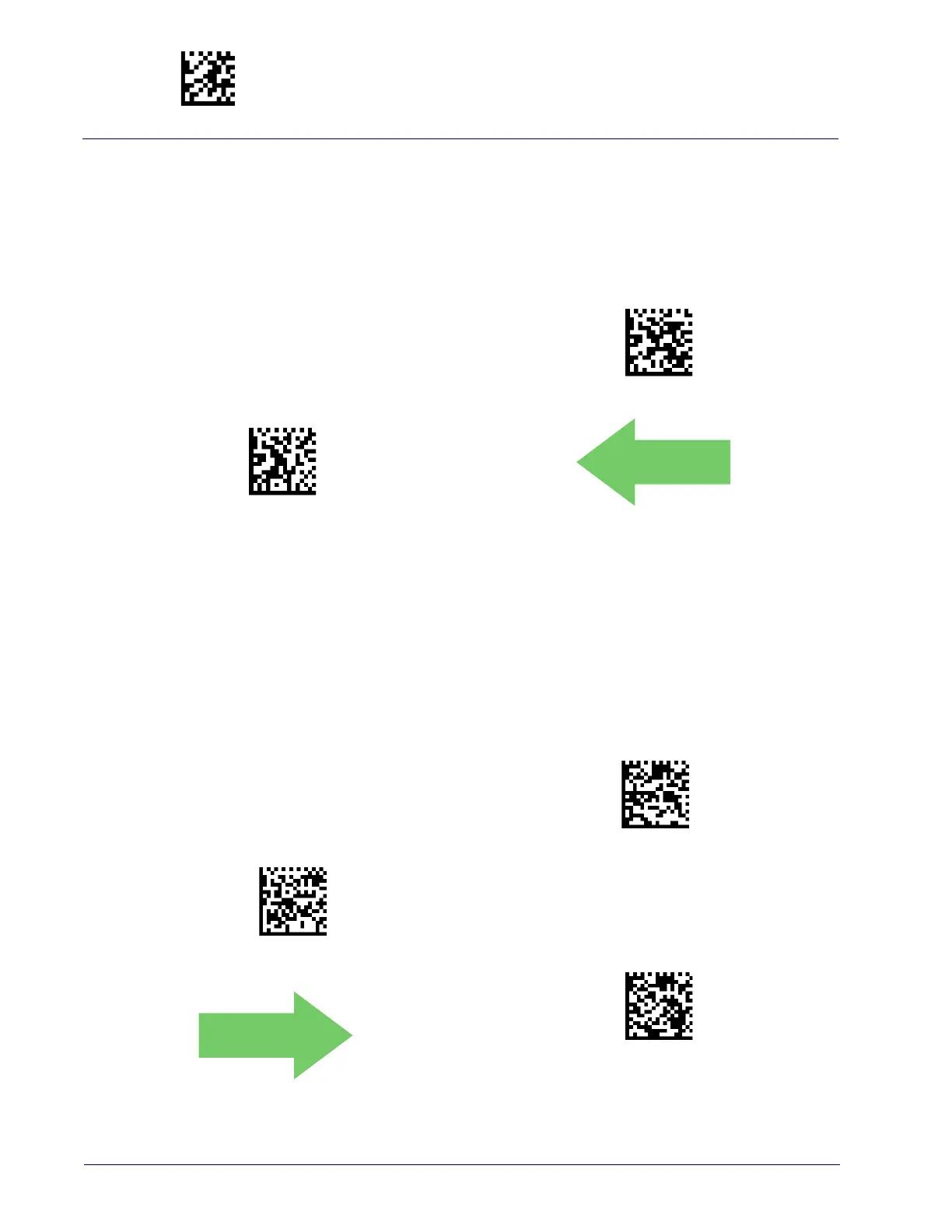

Data Matrix Enable / Disable
Enables/disables ability of reader to decode Data Matrix labels.
Data Matrix Square/Rectangular Style
Specifies the options available when reading Data Matrix with different form
factors. Choices are:
•Square Style
•Rectangular Style
• Both Square and Rectangular Style
The configuration item can also be configured as a bit mask to filter one or
mor
e Data Matrix labels with different symbol size AND shape styles.
Data Matrix = Disable
Data Matrix = Enable
$CDMEN00(CR)
$CDMEN01(CR)
DEFAULT
Data Matrix Dimensions Mask = Square Style
Data Matrix Dimensions Mask = Rectangular Style
Data Matrix Dimensions Mask =
Both Squar
e and Rectangular Style
$CDMDM3FFF0BD
$CDMDM0000420
DEFAULT
$CDMD03FFFFFF

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
