References Data Format
268
Touch TD1100
Label ID: Set Individually Per Symbology
To configure a Label ID individually for a single symbology:
1. Scan the ENTER/EXIT bar code.
2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suf-
fix) by scanning the appropriate bar code in the section
"Label ID Control" on page 57
. Refer-
ence
Figure 6
for Label ID positioning options if multiple identification features are
enabled.
3. Scan a bar code to select the symbology for which you wish to configure a custom Label
ID from the section
Label ID Symbology Selection, starting on page 58
.
4. Determine the desired character(s) (you may choose up to
three) which will represent the
Label ID for the selected symbology.
5. Turn to the
ASCII Chart
on the inside back cover of this manual and find the equivalent hex
digits associated with your choice of Label ID. For example, if you wish to select an equal
sign (=) as a Label ID, th
e chart indicates its associated hex characters as 3D. Turn to
Keypad, starting on page 305
and scan the bar codes representing the hex characters deter-
mined. For the example given, the characters ‘3’ and ‘D’ would be scanned. Mor
e exam-
ples of Label ID settings are provided in
Table 15
.
NOTE
If you make a mistake before the last character, scan the CANCEL bar code
to abort and not save the entry string. You can then start again at the
beginning.
6. Scan the ENTER/EXIT bar code to exit Label ID entry.
7. Scan the ENTER/EXIT bar code once again to exit Programming Mode.
This completes the steps to configure a Label ID for a given symbology.

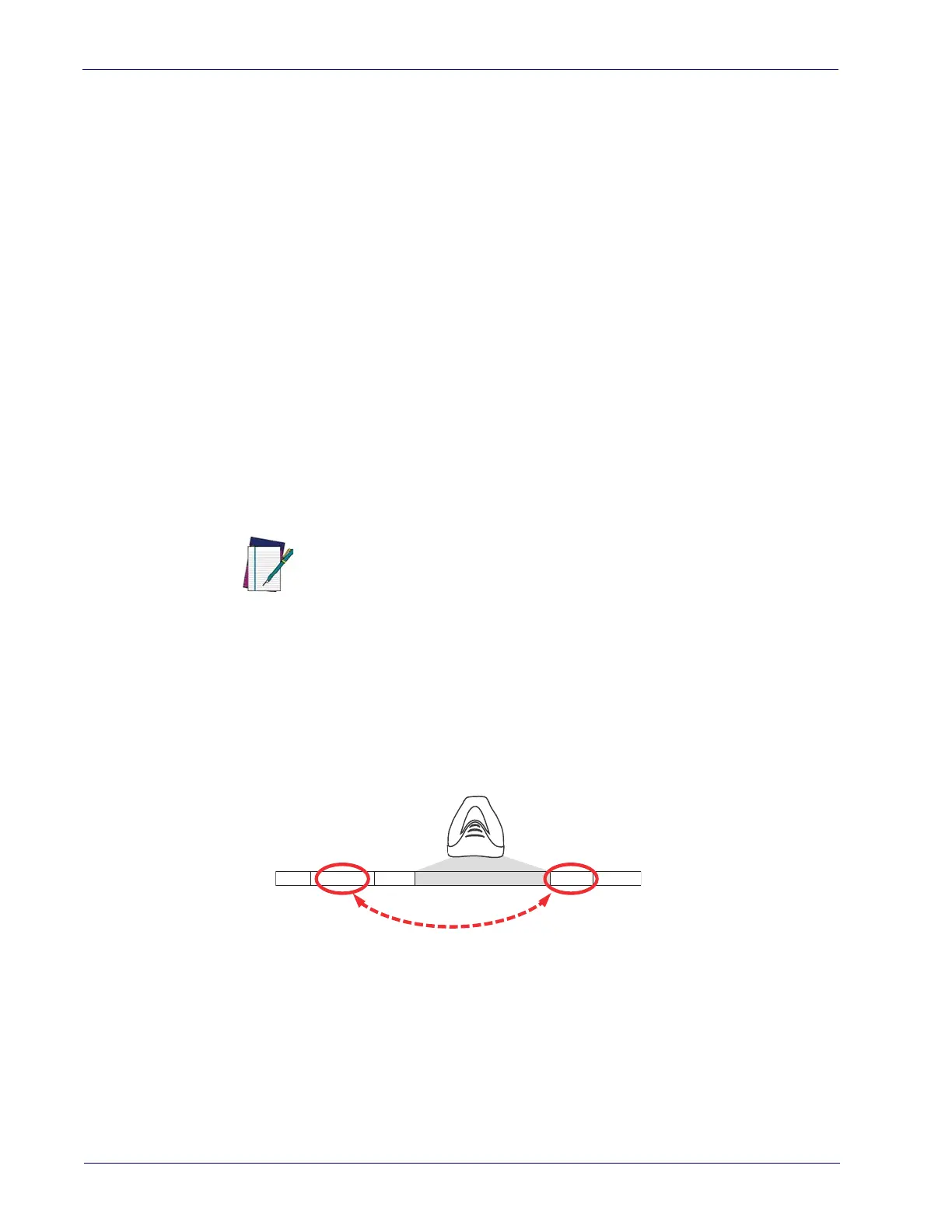

Figure 6. Label ID Position Options
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
