Specification
Page 13 of 146 057-259 ISSUE: 1

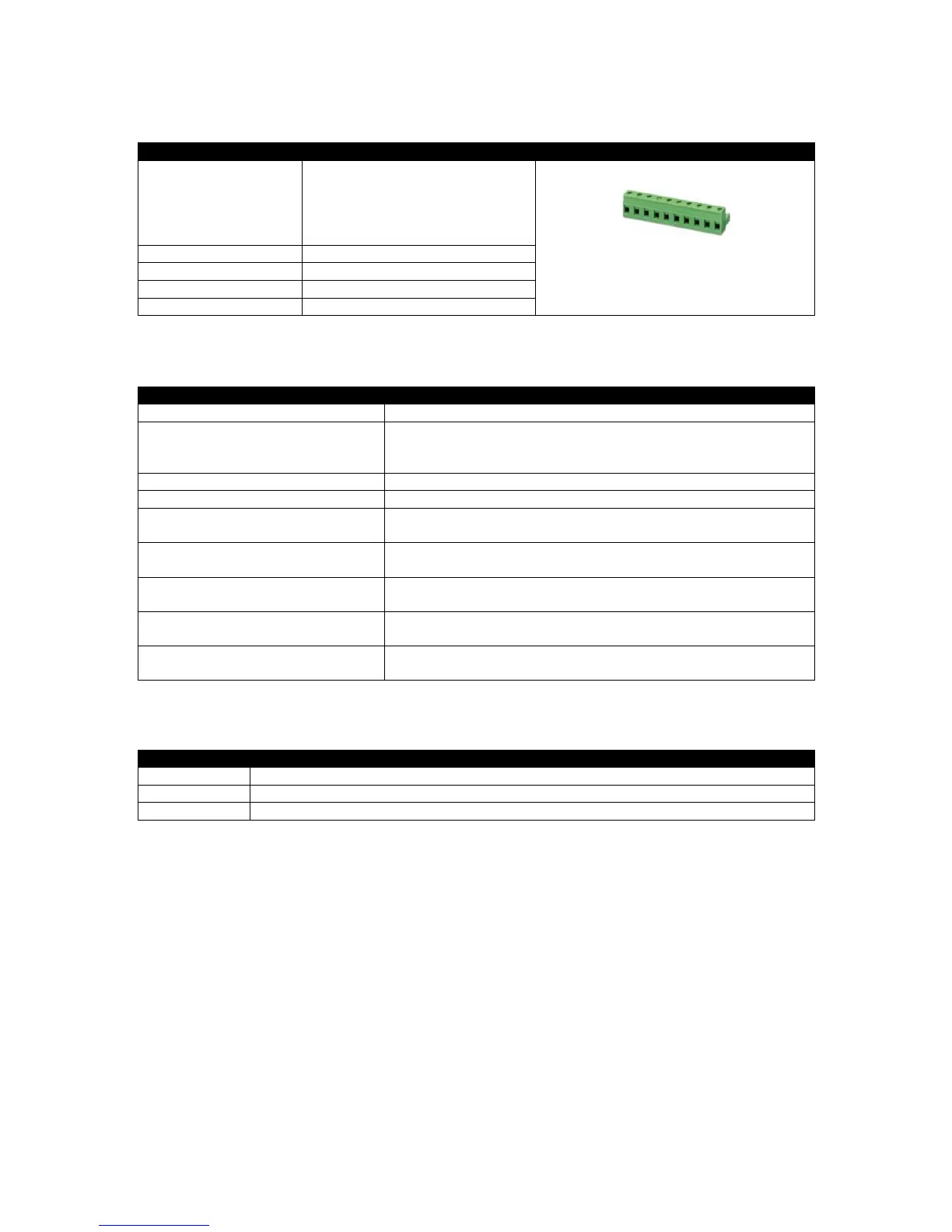

2.3 TERMINAL SPECIFICATION
Connection Type
Two part connector.
Male part fitted to module
Female part supplied in module
packing case - Screw terminal,
rising clamp, no internal spring.
Example showing cable entry and screw
terminals of a 10 way connector
Minimum Cable Size 0.5 mm² (AWG 24)
Maximum Cable Size 2.5 mm² (AWG 12)
Tightening Torque 0.5 Nm (4.5 lb-in)
Wire Strip Length 7 mm (9/32”)
2.4 POWER SUPPLY REQUIREMENTS
Minimum Supply Voltage 5 V continuous
Cranking Dropouts
Able to survive 0 V for 100 ms providing the supply was at least
was greater than 5 V for 2 seconds before the dropout and
recovers to 5 V afterwards.
Maximum Supply Voltage 35 V continuous (60 V protection)
Reverse Polarity Protection -35 V continuous
Maximum Operating Current
530 mA at 12 V
280 mA at 24 V
Maximum Standby Current
320 mA at 12 V
120 mA at 24 V
Maximum Current When In Sleep
Mode
140 mA at 12 V
75 mA at 24 V
Typical Power
(Controller On, Heater Off)
3.8 W to 4.1 W
Typical Power
(Controller On, Heater On)
6.8 W to 7.1 W
2.4.1 MODULE SUPPLY INSTRUMENTATION DISPLAY
Range 0 V to 70 V DC (Maximum continuous operating voltage of 35 V DC)
Resolution 0.1 V
Accuracy 1 % full scale (±0.35 V)
