3.4 ALTERNATE TOPOLOGY WIRING DIAGRAMS
The controller is factory configured to connect to a 3 phase, 4 wire Star connected system. This
section details connections for alternative AC topologies. Ensure to configure the controller to suit the
required topology.
NOTE: For further details of module configuration, refer to DSE Publication: 057-257
DSE8660 MKII Configuration Software Manual.

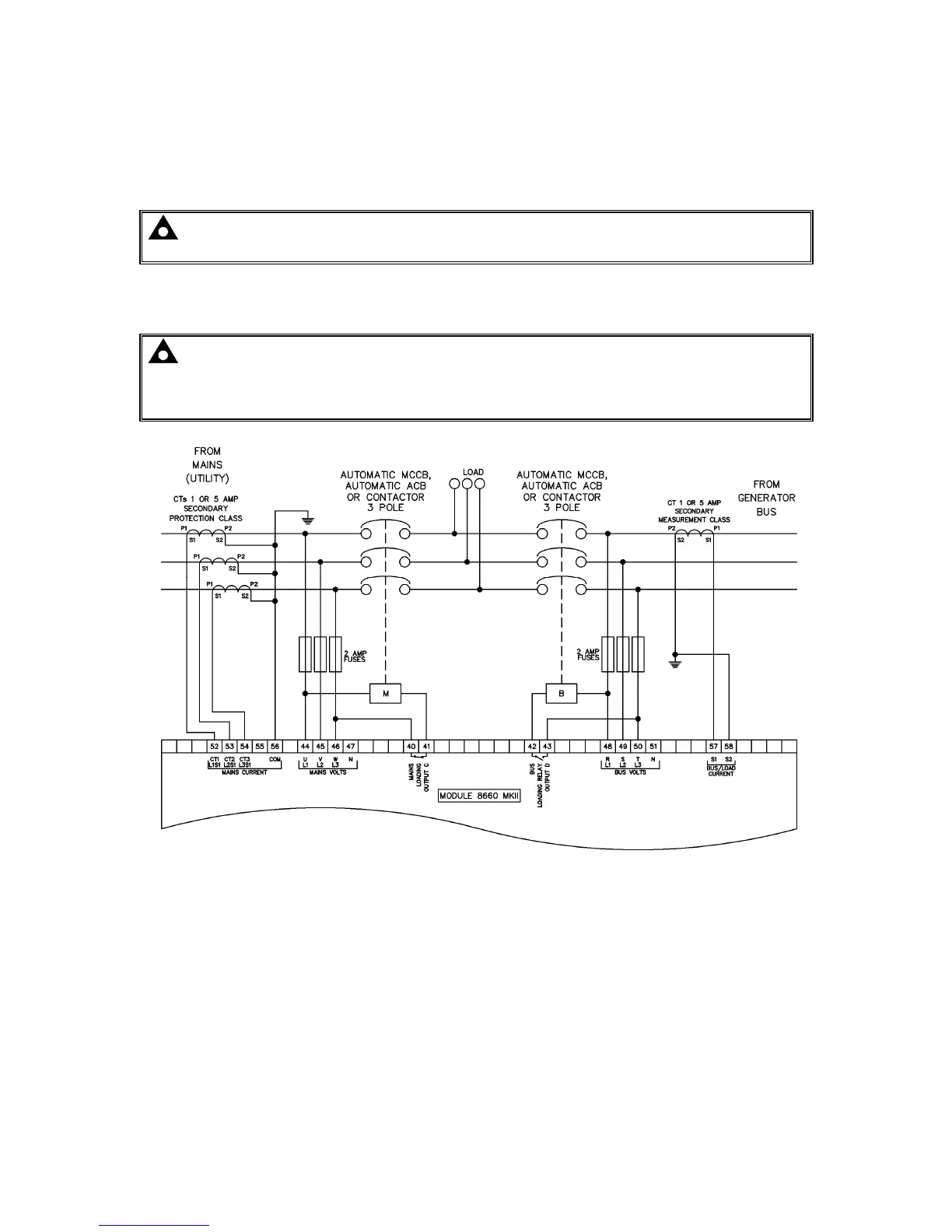

3.4.1 3 PHASE 3 WIRE DELTA
NOTE: The below diagram is applicable for the following AC topologies: 3 Phase 4 Wire
Delta L1-N-L2, 3 Phase 4 Wire Delta L1-N-L3 and 3 Phase 4 Wire Delta
L2-N-L3. For further details of module configuration to suit these different topologies, refer to
DSE Publication: 057-257 DSE8660 MKII Configuration Suite PC Software Manual.
