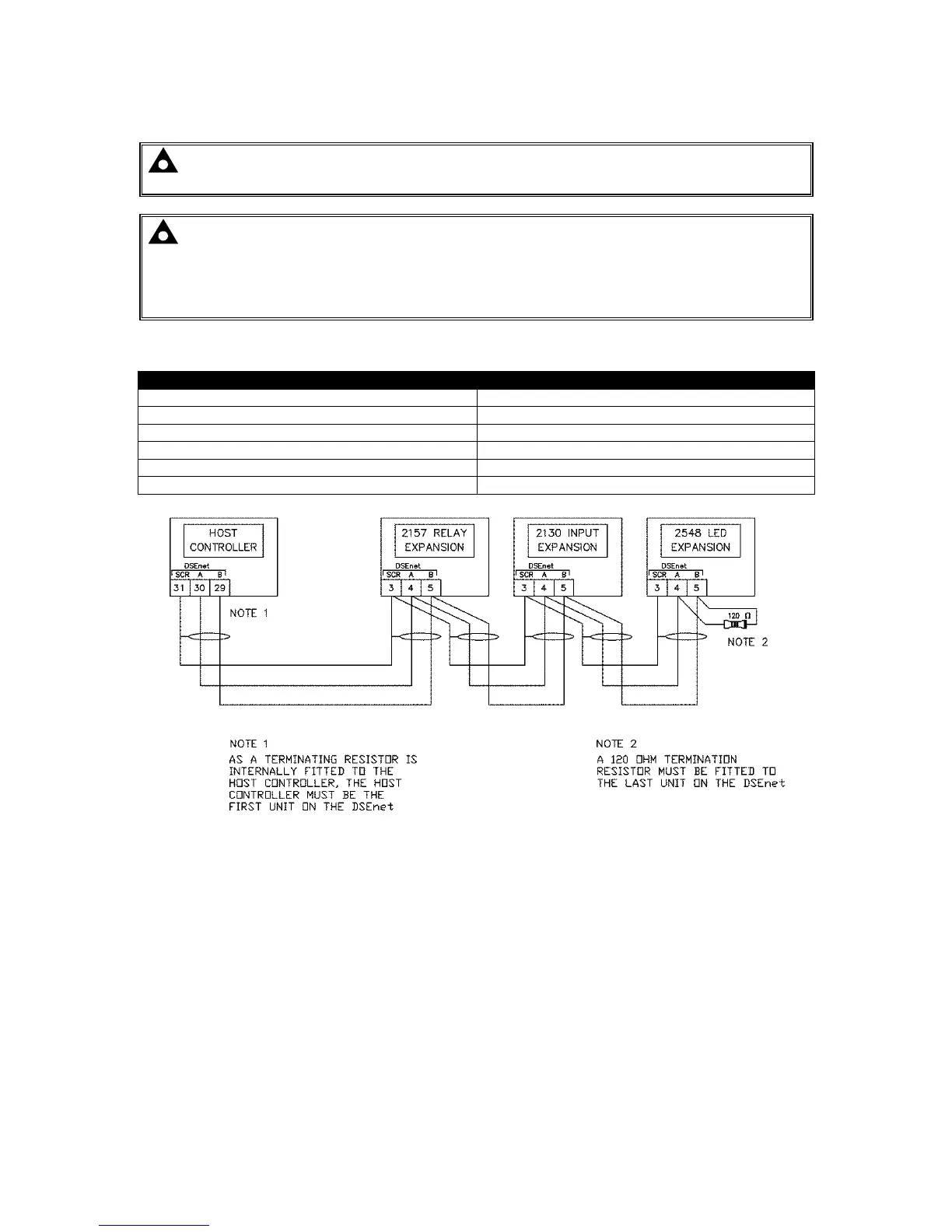

3.5 TYPICAL ARRANGEMENT OF DSENET
®
NOTE: For further details of module configuration, refer to DSE Publication: 057-257
DSE8660 MKII Configuration Suite PC Software Manual.
NOTE: Screened 120 Ω
ΩΩ
Ω impedance cable specified for use with CAN must be used for the
DSENet
®
(RS485) connection.
DSE stock and supply Belden cable 9841 which is a high quality 120Ω
ΩΩ
Ω impedance cable
suitable for DSENet
®
use (DSE part number 016-030)
Twenty (20) devices can be connected to the DSENet
®
, made up of the following devices :
DSE2130 Input Expansion 4
DSE2131 Input Expansion 4
DSE2133 Input Expansion 4
DSE2152 Relay Output Expansion 4
DSE2157 Relay Output Expansion 10
DSE2548 LED Expansion 10
