Description of Controls
057-259 ISSUE: 1 Page 88 of 146

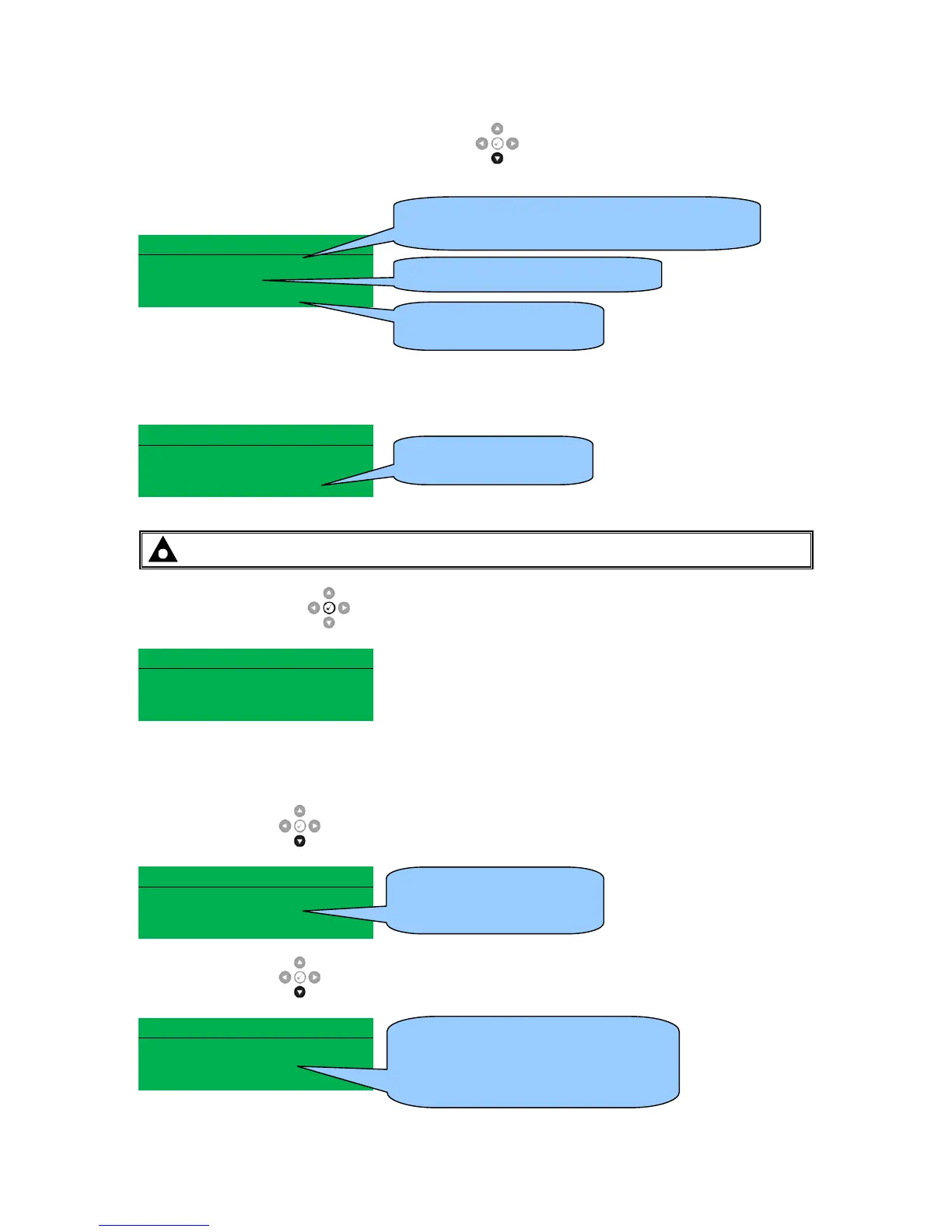

4.2.8.3 DATA LOGGING
Whilst in the ‘ABOUT’ section, press Scroll Down button to access more information about
the data logging settings.
Data Logging
Logging active
No USB drive present
Inserting a USB storage device to the USB host connector on the rear of the module displays the
following change to the page.
Data Logging
Logging active
Do not remove USB drive
NOTE: Removal of the USB drive must only be carried out using the following method.
Press and hold the Tick button until “Ok to remove USB drive” is displayed.
Data Logging
Logging active
Ok to remove USB drive
It is now safe to remove the USB drive.
This ensures the logging data file saves to memory complete and does not become corrupt.
Press Scroll Down button
to view the next page.
Data Logging
xxxx h xx m
Press Scroll Down button
to view the next page.
Data Logging
xxxx
Location of logged data. Displays either internal
module memory or external USB memory.
If data logging is active or inactive
Remaining time available
for logging information.
xxxx hours xx minutes
Memory space remaining, this
depends what size memory drive is
fitted (Max 16GB) or allocated internal
(2MB) memory left available.
If external USB storage
device is disconnected
If external USB storage
device is connected
