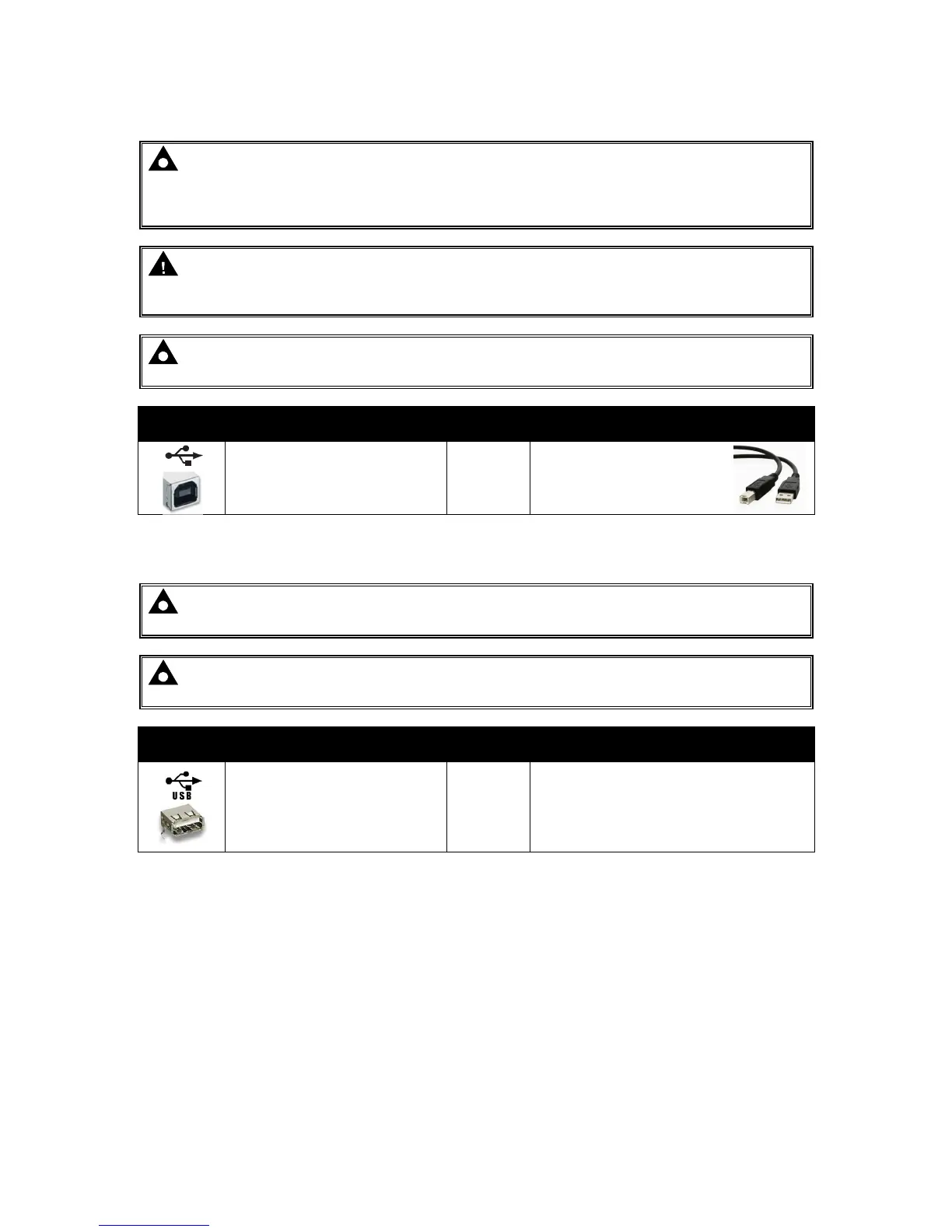

3.2.10 USB SLAVE (PC CONFIGURATION) CONNECTOR
NOTE: The USB connection cable between the PC and the module must not be extended
beyond 5 m (yards). For distances over 5 m, it is possible to use a third party USB extender.
Typically, they extend USB up to 50 m. The supply and support of this type of equipment is
outside the scope of Deep Sea Electronics PLC.
CAUTION!: Care must be taken not to overload the PCs USB system by connecting more
than the recommended number of USB devices to the PC. For further information, consult
your PC supplier.
NOTE: For further details of module configuration, refer to DSE Publication: 057-257
DSE8660 MKII Configuration Suite PC Software Manual.
Description
Cable
Size
Notes
Socket for connection to PC with DSE
Configuration Suite Software
0.5 mm²
AWG 20
This is a standard USB type A
to type B connector.
3.2.11 USB HOST (DATA LOGGING) CONNECTOR
NOTE: For further details on how to add and remove a USB storage device, refer to
section entitled Data Logging Pages elsewhere in this document.
NOTE: For further details of module configuration, refer to DSE Publication: 057-257
DSE8660 MKII Configuration Software Manual.
Description
Storage
Size
Notes
Socket for connection to USB storage
device for data logging
Maximum
16 GB
USB storage device must be formatted as FAT, not
FAT32.
