2.10 COMMUNICATION PORT USAGE
2.10.1 USB SLAVE PORT (PC CONFIGURATION)
NOTE: DSE stock 2 m (6.5 feet) USB type A to type B cable, DSE Part Number: 016-125.
Alternatively they are purchased from any PC or IT store.
NOTE: The DC supply must be connected to the module for configuration by PC.
NOTE: For further details of module configuration, refer to DSE Publication: 057-257
DSE8660 MKII Configuration Suite PC Software Manual.
The USB port is provided to give a simple means of connection between a PC and the controller.
Using the DSE Configuration Suite Software, the operator is then able to control the module, starting
or stopping the engine, selecting operating modes, etc.
Additionally, the various operating parameters (such as coolant temperature, oil pressure, etc.) of the
engine are available to be viewed or changed.

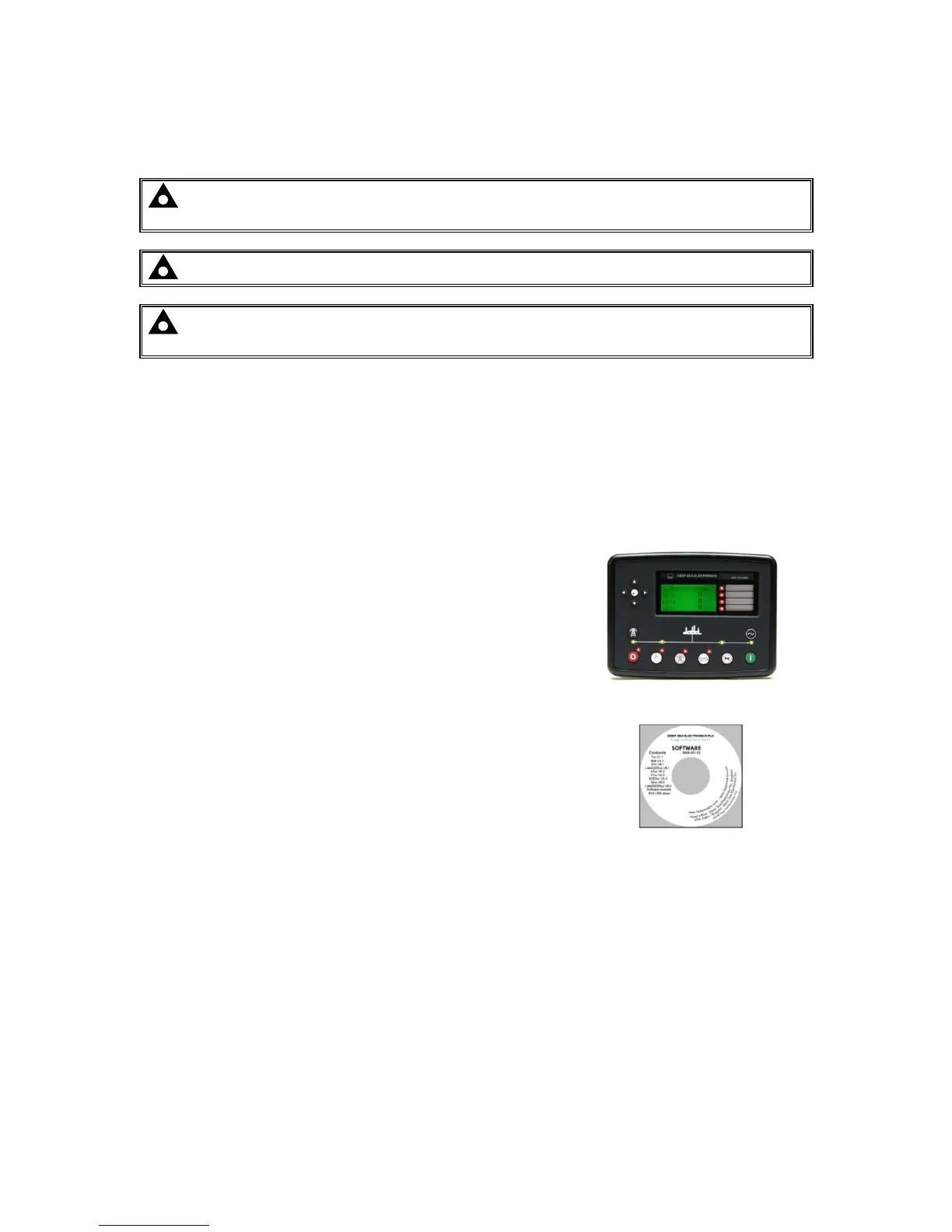

To connect a module to a PC by USB, the following items are required:
DSE86xx MKII Controller
DSE Configuration Suite PC Software
(Supplied on configuration suite software CD or available from
www.deepseaplc.com).
2.10.1.1 USB HOST PORT (USB STORAGE DEVICE CONNECTION)
USB Type A connection for an of external USB storage device of maximum 16 GB for instrumentation
data logging.
