3.2.9 RS232
NOTE: For further details of module configuration, refer to DSE Publication: 057-257
DSE8660 MKII Configuration Suite PC Software Manual.
Description
Notes
Socket for connection to a modem or
PC with DSE Configuration Suite
Software
Supports MODBUS RTU protocol or external modem

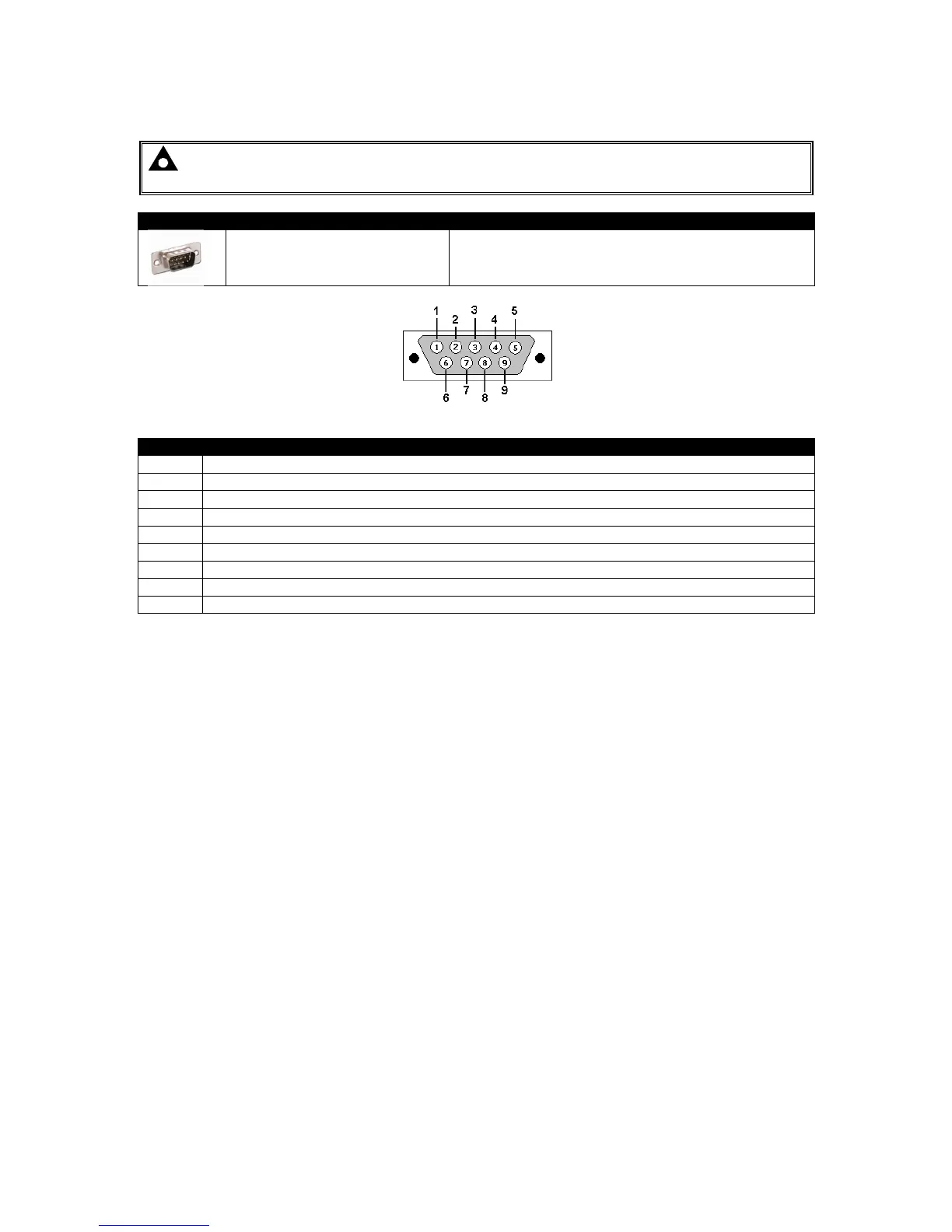

View looking into the male connector on the module
PIN No
Notes
1 Received Line Signal Detector (Data Carrier Detect)
2 Received Data
3 Transmit Data
4 Data Terminal Ready
5 Signal Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 Ring Indicator
