8.2.4.2 CORRECTLY WIRED BREAKER

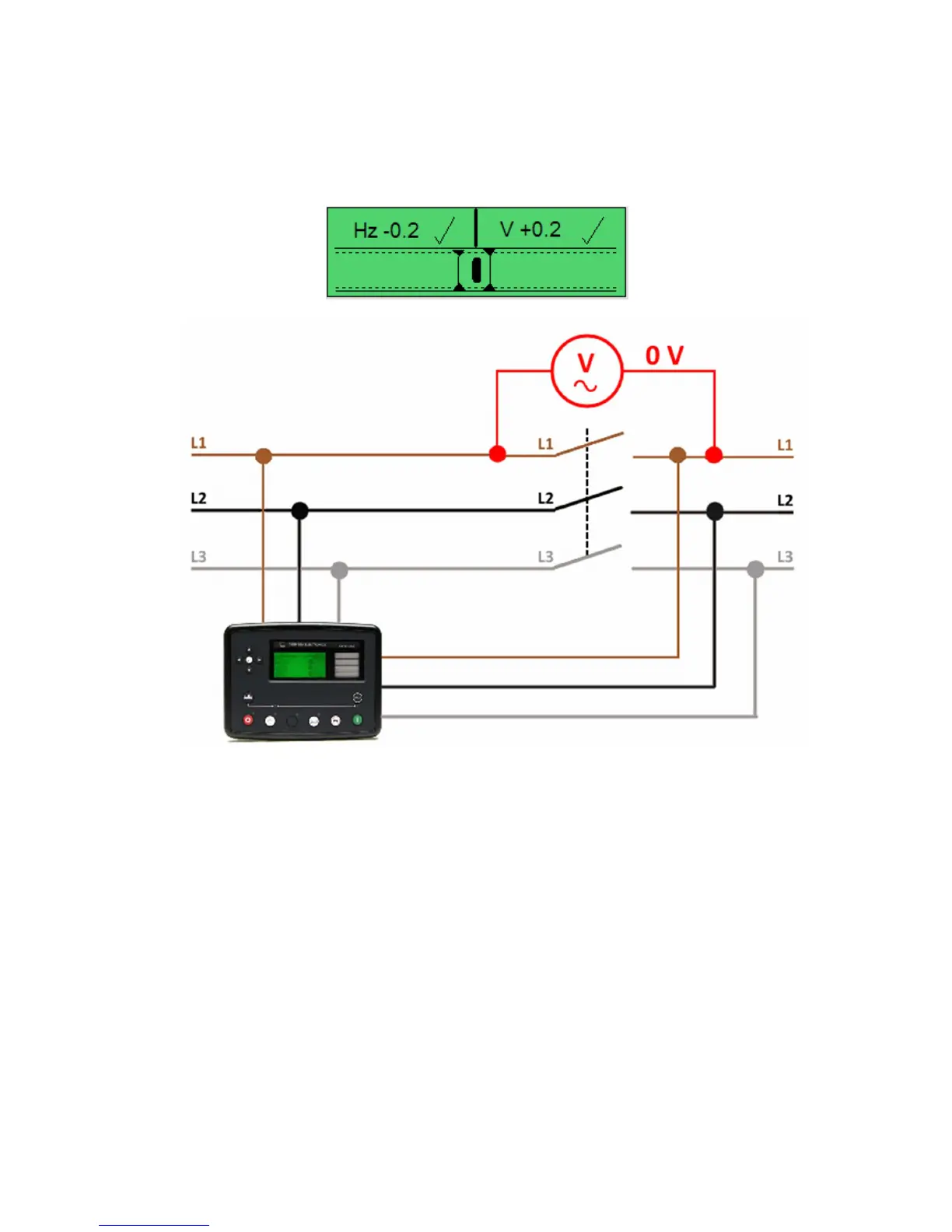

When the DSE module’s synchroscope shows the two supplies in sync, if the voltage meter shows no
voltage difference the breaker is wired correctly. This is shown in the example below.
