2.13.5 CABLE TIE FIXING POINTS

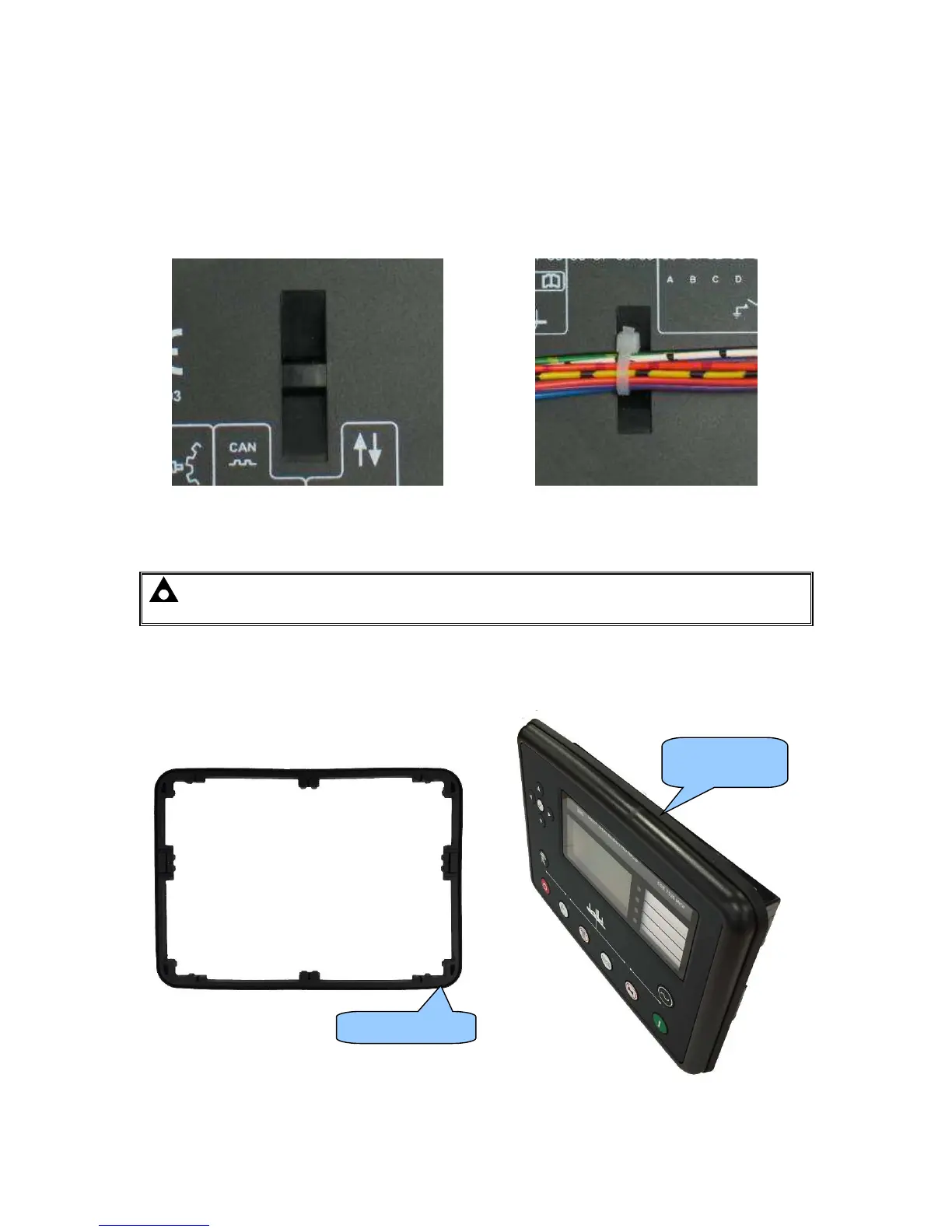

Cable tie fixing points are included on the rear of the module’s case to aid wiring. This additionally
provides strain relief to the cable loom by removing the weight of the loom from the screw connectors,
reducing the chance of future connection failures.
Care must be taken not to over tighten the cable tie (for instance with cable tie tools) to prevent the
risk of damage to the module case.
Cable Tie Fixing Point With Cable And Tie In Place
2.13.6 SILICON SEALING GASKET
NOTE: For purchasing a silicon gasket from DSE, see the section entitled Maintenance,
Spares, Repair and Servicing elsewhere in this document.
The silicon gasket provides improved sealing between module and the panel fascia. The gasket is
fitted to the module before installation into the panel fascia. Take care to ensure the gasket is
correctly fitted to the module to maintain the integrity of the seal.
