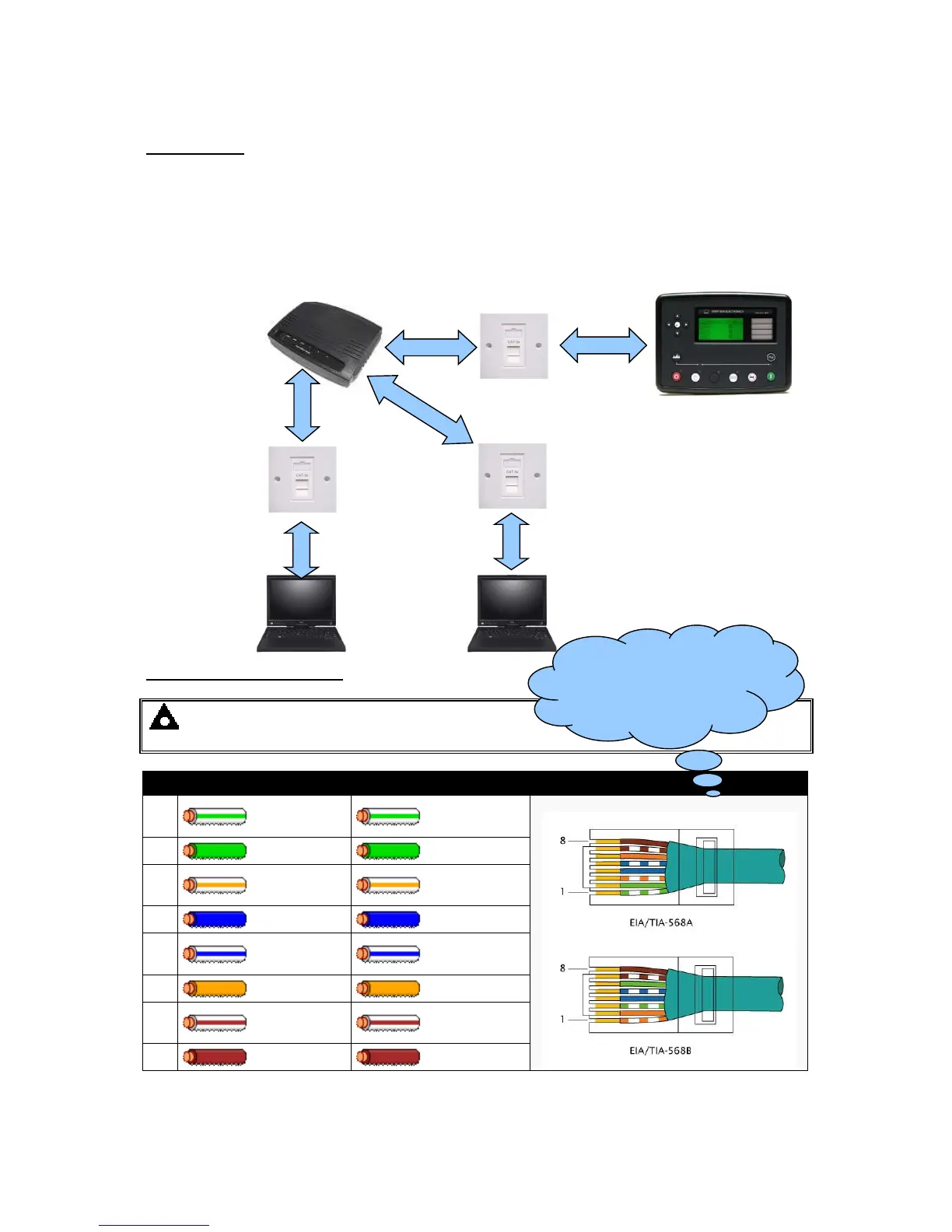

2.10.4.3 CONNECTION TO COMPANY INFRASTRUCTURE ETHERNET
Requirements
• DSE module with the ability to connect to Ethernet
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• PC with Ethernet port
Ethernet Cable Wiring Detail
NOTE: DSE stock 2 m (6.5 feet) Ethernet Cable, DSE Part Number: 016-137. Alternatively
they can be purchased from any PC or IT store.
Pin
Connection 1 (T568A)
Connection 2 (T568A)
1
white/green
stripe
white/green
stripe
2 green solid green solid
3
white/orange
stripe
white/orange
stripe
4 blue solid blue solid
5
white/blue
stripe
white/blue
stripe
6 orange solid orange solid
7
white/brown
stripe
white/brown
stripe
8 brown solid brown solid
PC Network
Wall
Connection
Sockets
Ethernet Router
or ADSL Router
Ethernet
Cable
For the advanced
Engineer, this cable has
both ends terminated as
T568A or T568B.
