8.2.4.1 INCORRECTLY WIRED BREAKER

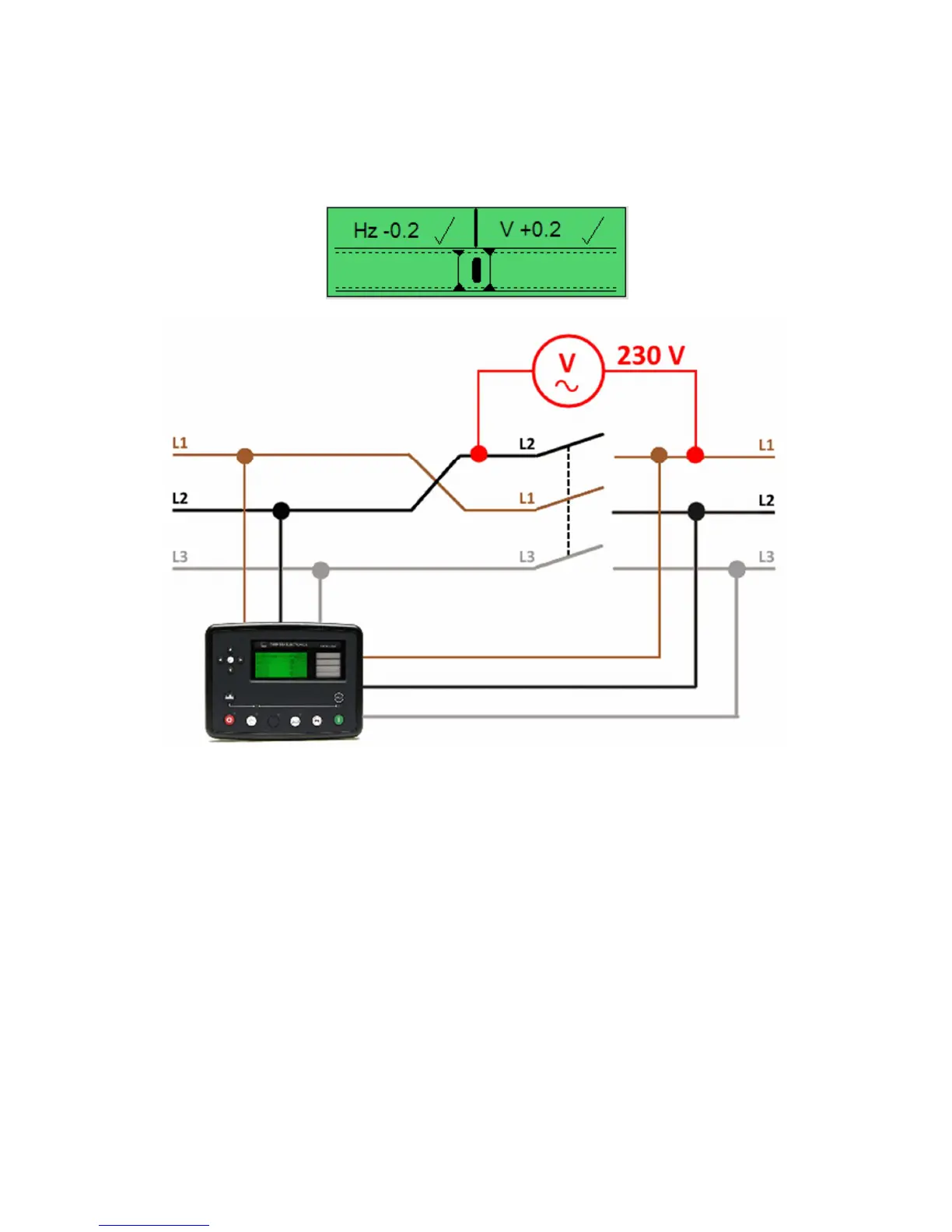

When the DSE module’s synchroscope shows the two supplies in sync, if the voltage meter shows a
voltage difference the breaker is wired incorrectly. This is shown in the example below.
