Specification
057-259 ISSUE: 1 Page 34 of 146
2.13.4 FIXING CLIPS
NOTE: In conditions of excessive vibration, mount the module on suitable anti-vibration
mountings.
The module is held into the panel fascia using the supplied fixing clips.
Withdraw the fixing clip screw (turn anticlockwise) until only the pointed end is protruding from the clip.
Insert the three ‘prongs’ of the fixing clip into the slots in the side of the module case.
Pull the fixing clip backwards (towards the back of the module) ensuring all three prongs of the clip
are inside their allotted slots.
Turn the fixing clip screws clockwise until they make contact with the panel fascia.
Turn the screw a quarter of a turn to secure the module into the panel fascia. Care must be taken not
to over tighten the fixing clip screws.

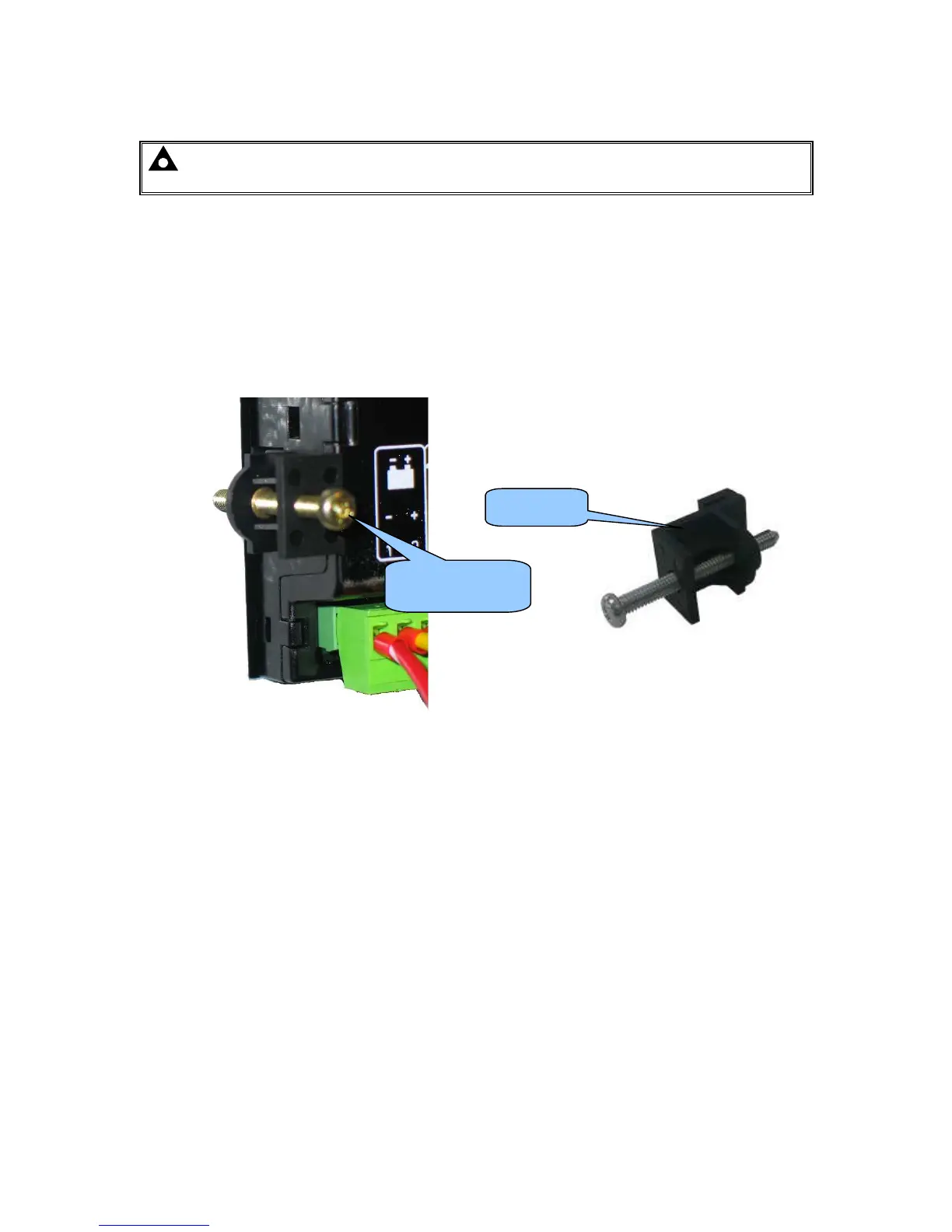

Fixing clip fitted
to module
Fixing clip
