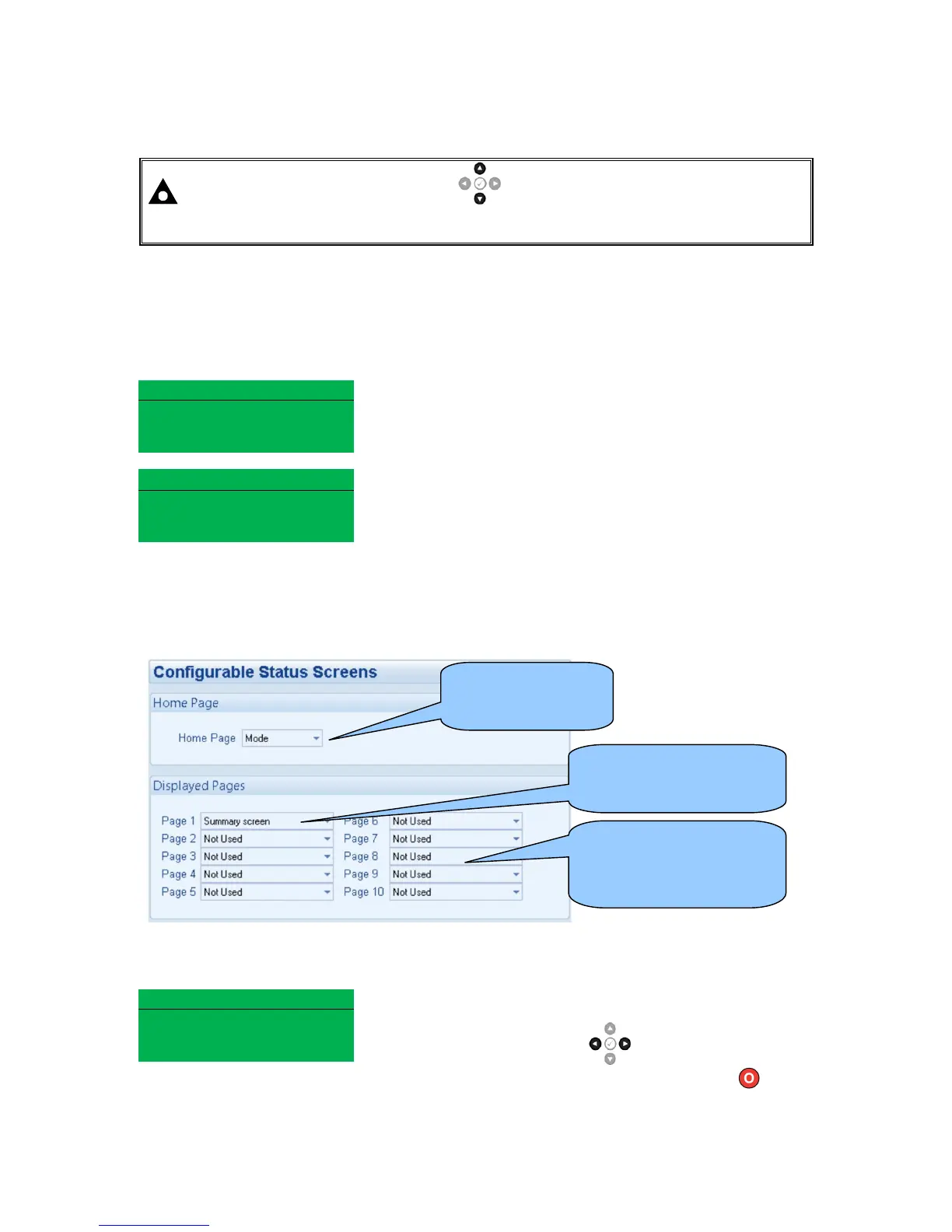

4.2.1 STATUS
NOTE: Press the Instrumentation Scroll buttons on the Status Page to view other
Configurable Status Screens if configured. For further details of module configuration, refer to
DSE Publication: 057-257 DSE8660 MKII Configuration Suite Software Manual.
This is the ‘home’ page, the page that is displayed when no other page has been selected, and the
page that is automatically displayed after a period of inactivity (LCD Page Timer) of the module
control buttons.
This page changes with the action of the controller for example when the generator bus start request
is given:
Status 22:31
Factory setting of Status screen showing no start request...
Auto Mode
Status 22:31
...and generator bus available
Auto Mode
The contents of this display may vary depending upon configuration by the Generator manufacturer or
supplier.
The display above is achieved with the factory settings, shown below in the DSE Configuration suite
software:
4.2.1.1 ELECTRICAL TRIP
Status 22:31
indicates that a start request cannot be given due to
an active Electrical Trip alarm on the module.
Press the Next or Previous Page button to scroll to the
alarms pages to investigate. Press the Stop/Reset Mode button
to clear the alarm, if the fault does not clear, the fault is still active.
‘Stop Mode’ etc is
displayed on the
Home Page
With a summary of the
instrumentation shown
when the engine is running.
Other pages can be
configured to be shown,
automatically scrolling
when the set is running.
