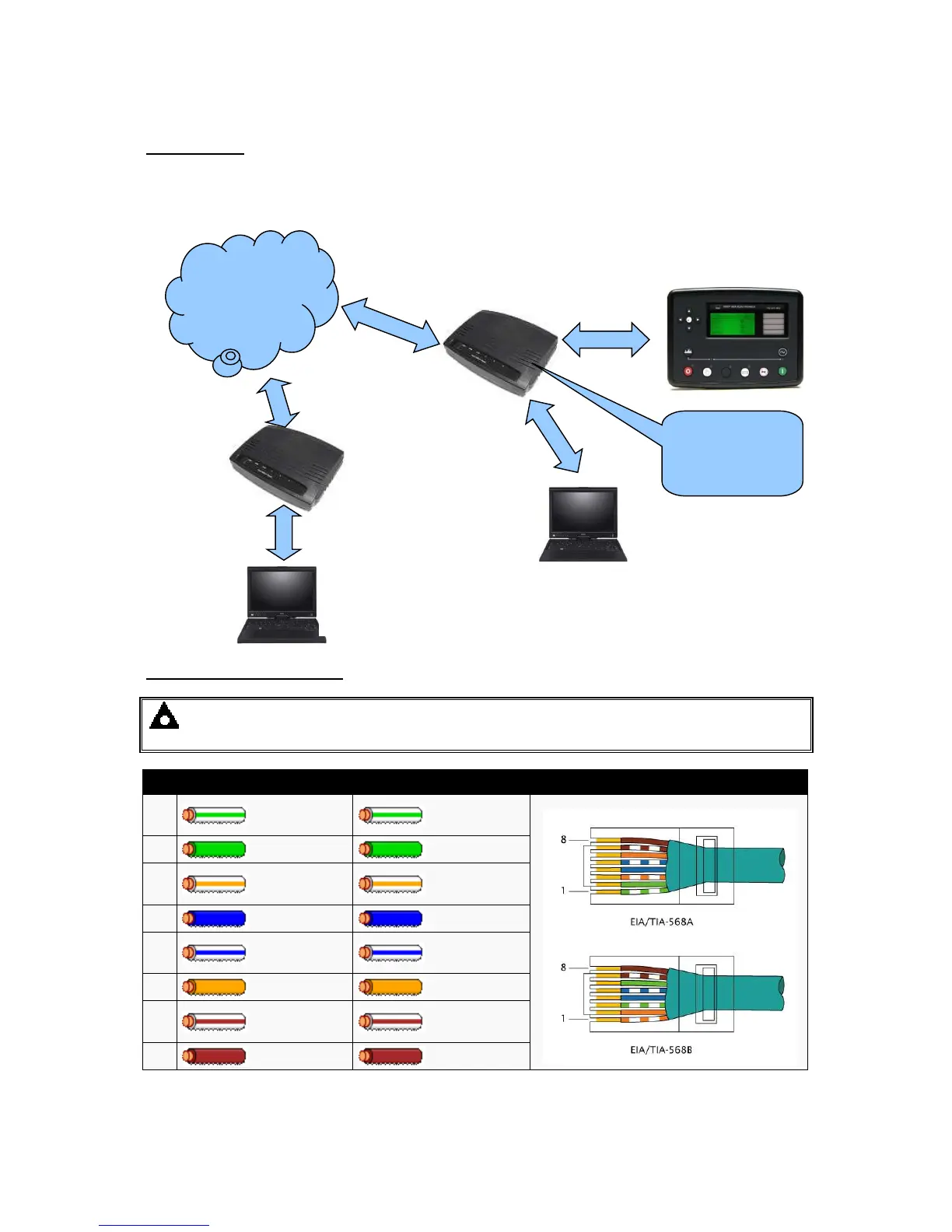

2.10.4.4 CONNECTION TO THE INTERNET
Requirements
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• Working Internet connection (ADSL or DSL recommended)
Ethernet Cable Wiring Detail
NOTE: DSE stock 2 m (6.5 feet) Ethernet Cable, DSE Part Number: 016-137. Alternatively
they can be purchased from any PC or IT store.
Pin
Connection 1 (T568A)
Connection 2 (T568A)
1
white/green
stripe
white/green
stripe
2 green solid green solid
3
white/orange
stripe
white/orange
stripe
4 blue solid blue solid
5
white/blue
stripe
white/blue
stripe
6 orange solid orange solid
7
white/brown
stripe
white/brown
stripe
8 brown solid brown solid
DSL or ADSL
Router
Optional ‘Local’
Site PC
INTERNET
PC Remote From
Generator Site
The DSL/ADSL
router routes
external network
traffic
Ethernet
Cable
DSL or ADSL
Router
