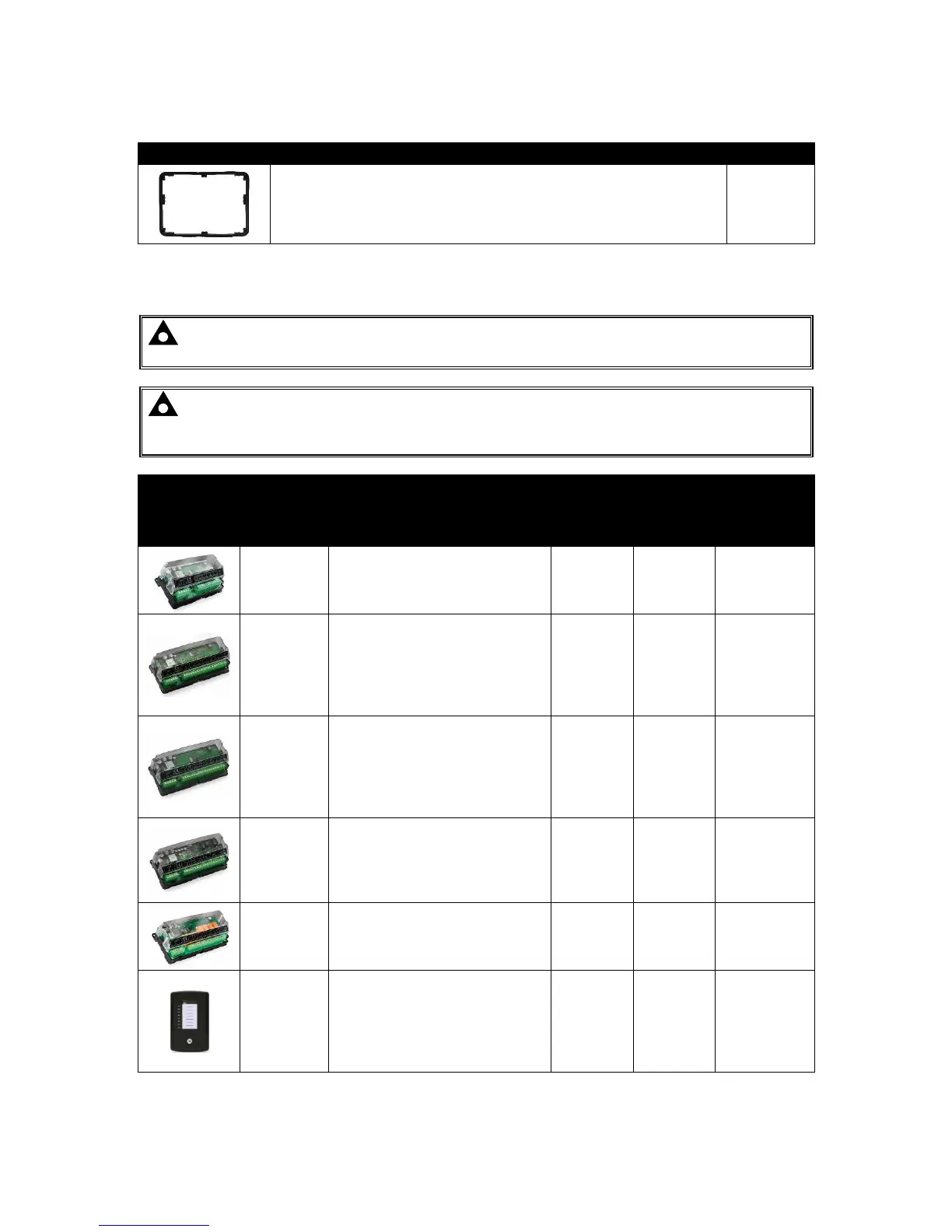

10.3 PURCHASING ADDITIONAL SEALING GASKET FROM DSE
Item Description Part No.
Module Silicon Sealing Gasket 020-564
10.4 DSENET
®
EXPANSION MODULES
NOTE: A maximum of twenty (20) expansion modules can be connected to the DSE8660
MKII DSENet
®
Port
NOTE: DSENet
®
utilises an RS485 connection. Using Belden 9841 (or equivalent) cable
allows for the expansion cable to be extended to a maximum of 1.2 km.
DSE Stock and supply Belden 9841 cable. DSE Part Number 016-030.
Item
Description
DSE Part Numbers
Max No.
Supported
Order
Number
Operator
Manual
Installation
Instructions
4
Model DSE2130 input module
provides additional analogue
and digital inputs for use with
the controller.
2130-00 055-060 057-082
4
Model DSE2131 Ratio-metric
input expansion module
provides additional restive,
digital, 0-10V and 4-20ma
inputs for use with the
controller.
2131-00 055-115 057-139
4
Model DSE2133
RTD/Thermocouple input
expansion module provides
additional RTD and
thermocouple inputs for use
with the controller.
2133-00 055-114 057-140
4
Model DSE2152 Ratio-metric
output expansion module
provides additional 0-10V and
4-20ma outputs for use with the
controller.
2152-00 055-112 057-141
10
Model DSE2157 expansion
relay module provides eight
additional voltage free relays
for use with the controller
2157-00 055-061 057-083
10
Model DSE2548 expansion
LED module provides
additional LED indications,
internal sounder and remote
lamp test/alarm mute for use
with the controller.
2548-00 057-084 053-032
