Description of Controls
Page 69 of 146 057-259 ISSUE: 1
NOTE: For further details, see section entitled Operation elsewhere in this manual.

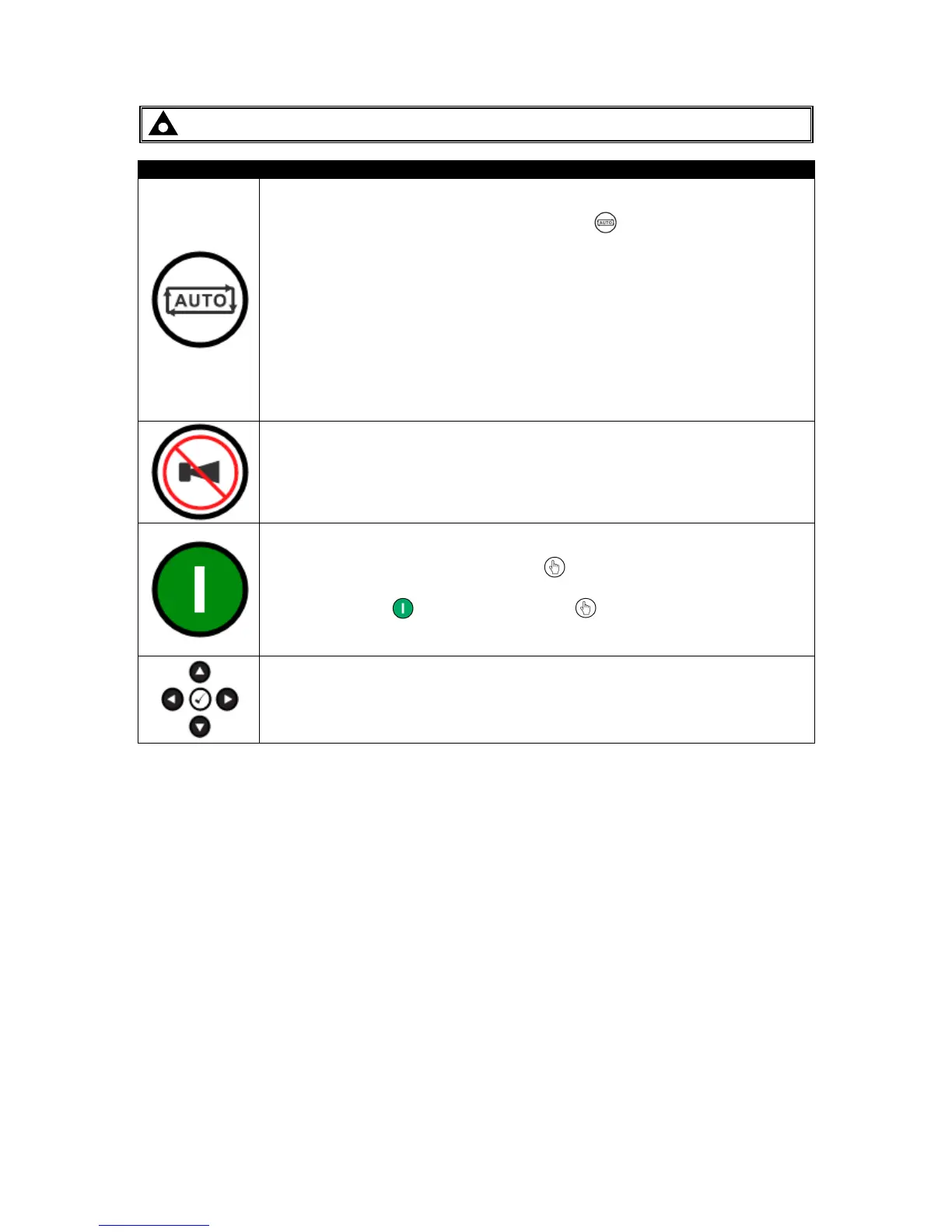

Icon
Description
Auto Mode
This button places the module into its Auto Mode .
This mode allows the
module to control the function of the system automatically. The module monitors
various Start Signals and once a start request is made, sends a start request to
the DSE8x10 module over the MSC Link. The module monitors the MSC Link for
feedback from the DSE8x10 module to confirm the generator bus is available.
Once the generator bus is available and if requested, it is automatically placed on
load (‘Close Bus’ becomes active), synchronising to the Mains if required. Upon
removal of the Start On Load Signal, the module starts the Return Delay Timer
and once expired, the generator bus is taken off load (‘Close Bus’ becomes
inactive). The module then waits for next start event.
Alarm Mute / Lamp Test
This button de-activates the audible alarm on the module, the Audible Alarm output
(if configured) and illuminates all of the LEDs on the module’s facia.
Start
This button is only active in Manual Mode
.
Pressing the Start button in Manual Mode
sends a start request to the
DSE8x10 module over the MSC Link.
N
avigation
Keys
Used for navigating the instrumentation, event log and configuration screens.
