Dell PowerEdge XE9640 - Page 90

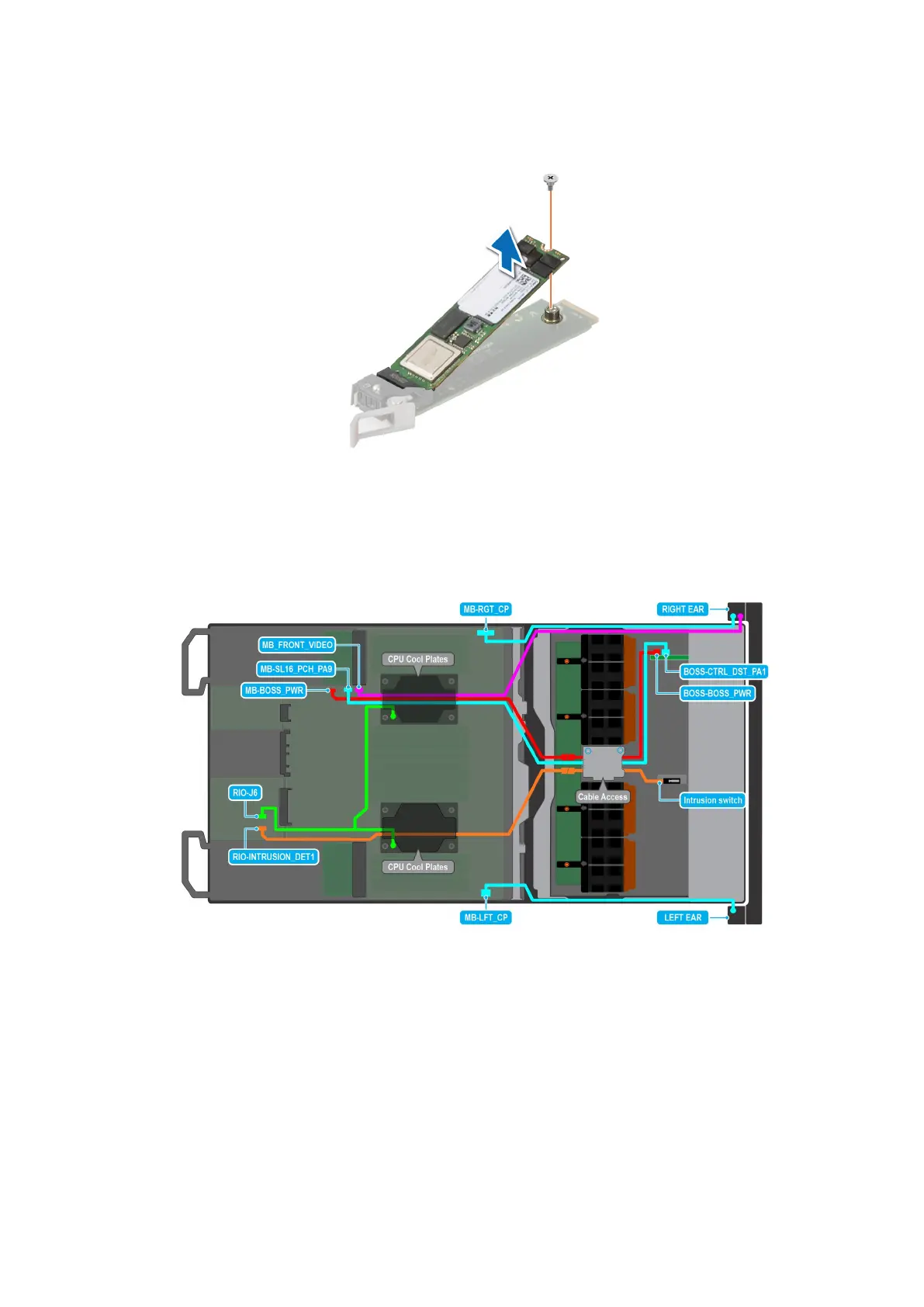

Figure 52. Removing the M.2 SSD
5. Remove the cable cover. Using two fingers, lift the turtle shell from the DLC module. Disconnect the BOSS-N1 power and
signal cable from the system board.
Figure 53. BOSS-N1 cable diagram
6. Remove the BOSS-N1 power and signal cable from the BOSS-N1 module.
90
Installing and removing system components
